Wharfedale Pro WPB-1-BLACK Mounting Bracket for speakers SKU# WD-WPB-1

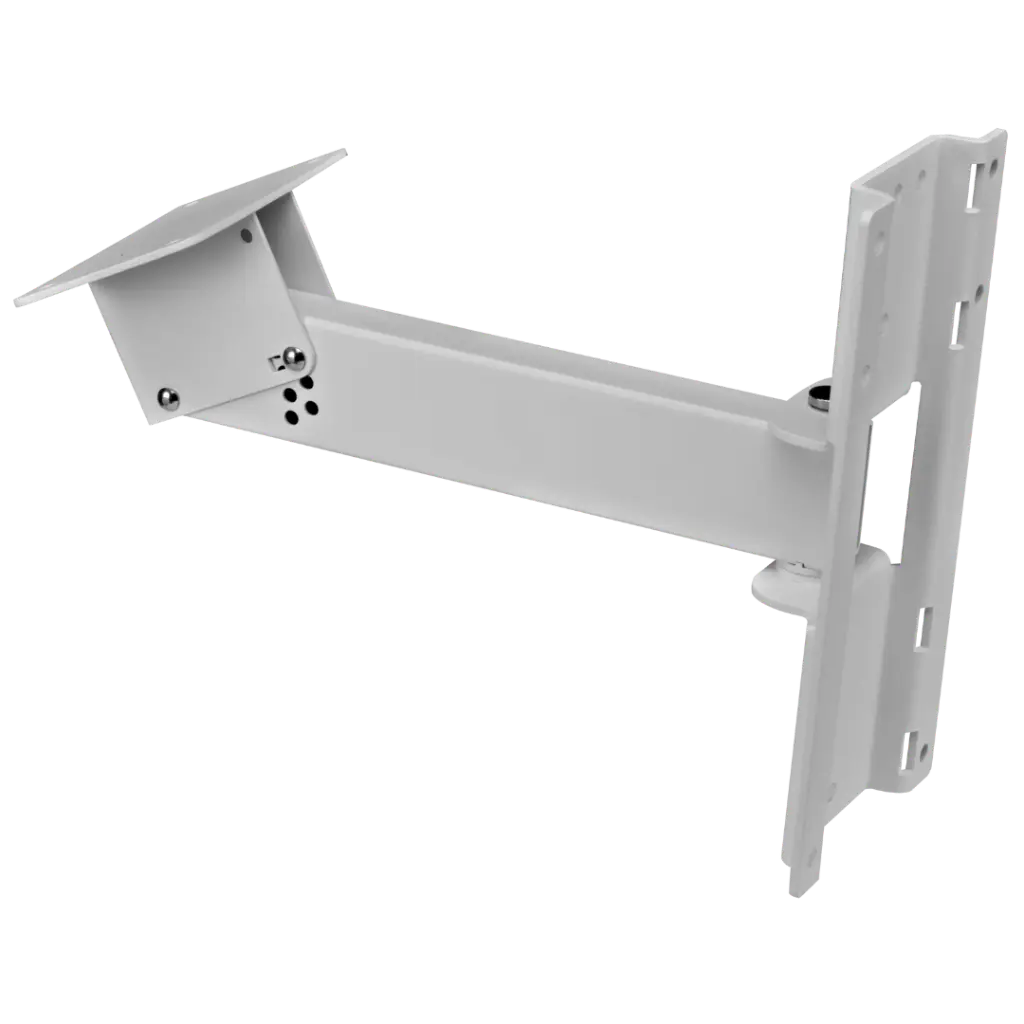

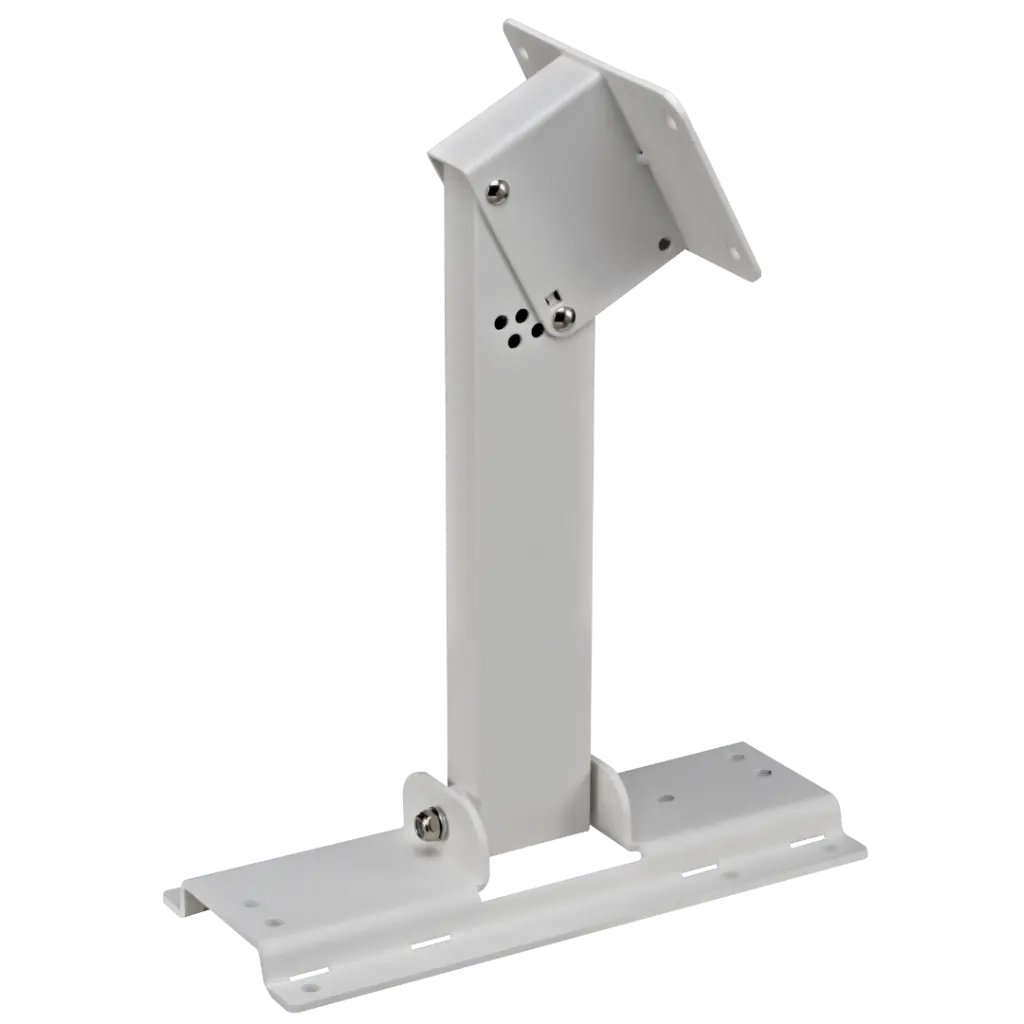

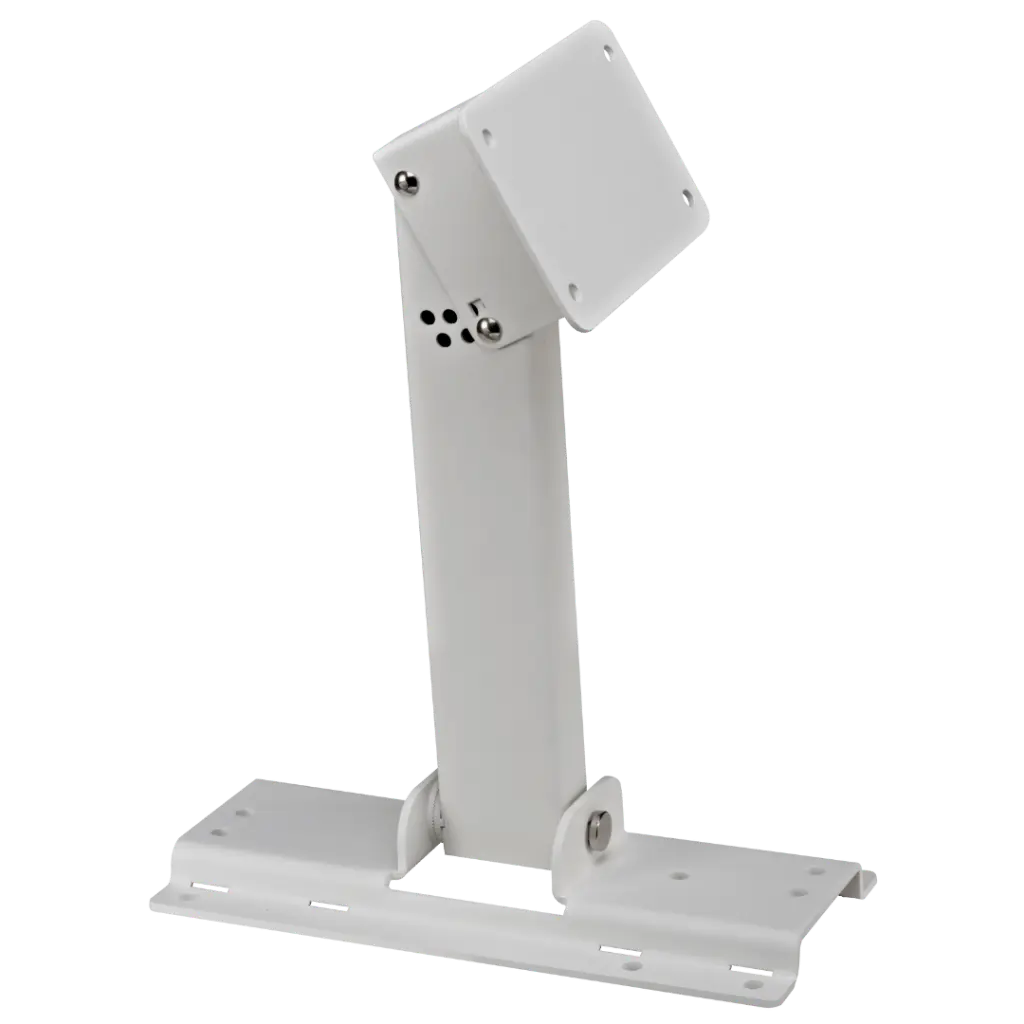

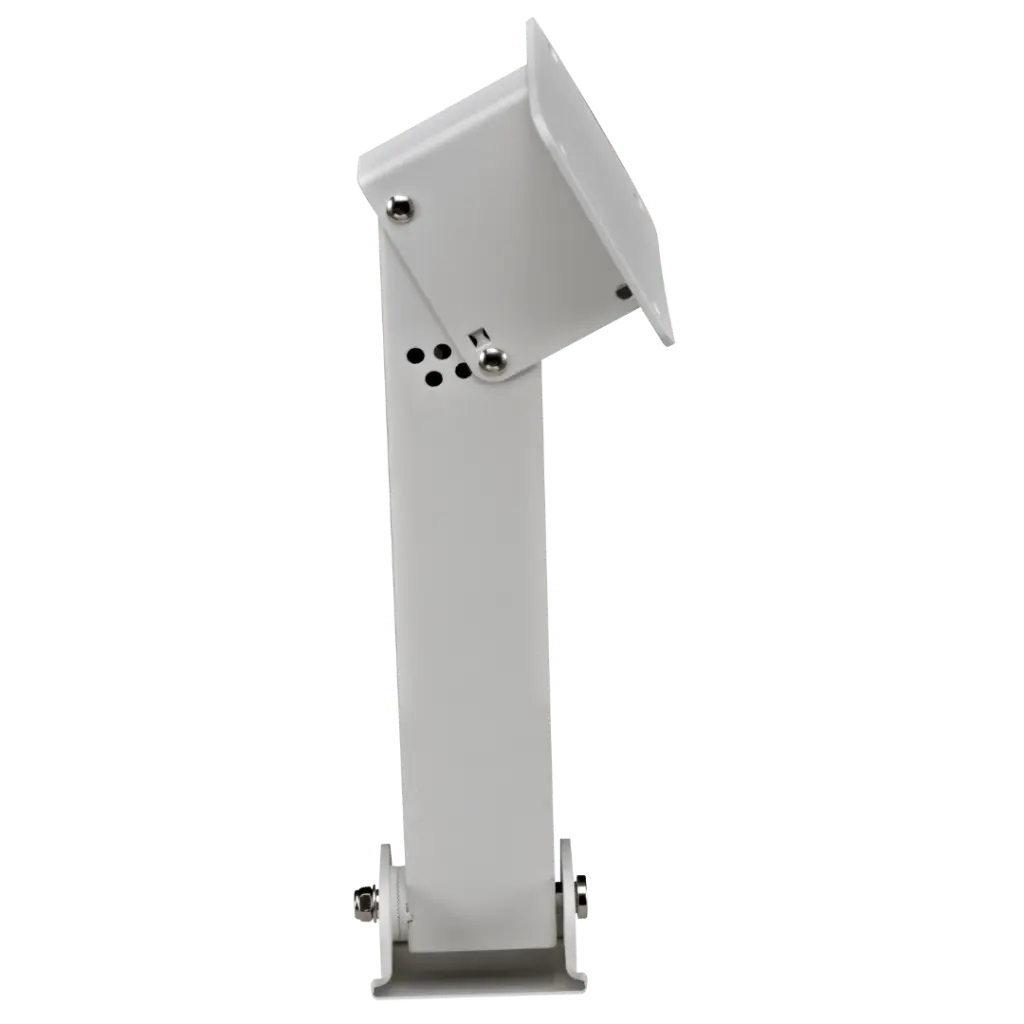

The Wharfedale Pro WPB-1 is an adjustable heavy duty wall mounting bracket designed for the Titan 12 & 15 active and passive loudspeakers, for use in fixed installation applications. The WPB-1 is also suitable for use with many other loudspeakers (Including the SI-10X, SI-12X, SI-15X and SI-28X) due to its standardized mounting points.

The WPB-1 is attached to an appropriate mounting surface using any suitable combination of the 10 mounting points that are provided. Your Titan loudspeaker is then attached to the bracket using 4 M8 Omnimount® 60.0 threaded inserts. A WPB-1 provides secure and versatile mounting with control over both pan and tilt, 0º to 40º of downward tilt are available.

Constructed from steel and finished in black or white paint the WPB-1 is manufactured to the highest standards to protect your investment and ensure the highest level of safety and security.

• Made for: TITAN-X12, TITAN-X15, TITAN-AX12, TITAN-12Z, TITAN-15Z, SIGMA-X8, SIGMA-X10, SIGMA-X12, SIGMA-X15
• Maximum Weight Limit: 25 Kg / 55.12 lbs
• Mounting Type: Tidy Wall Mount Solution
• Bracket Material: Steel Construction
• Bracket Colour: Black or White
• Bracket Finish: Paint
• Rotation: 180°

• Height 100 mm / 3.94"
• Width Front 280 mm / 11.02″
• Width Rear 280mm / 11.02″
• Depth 390 mm / 15.35″

• Net Weight: 2 kg / 4.41 lbs
• Gross Weight: 3 kg / 7.34 lbs
