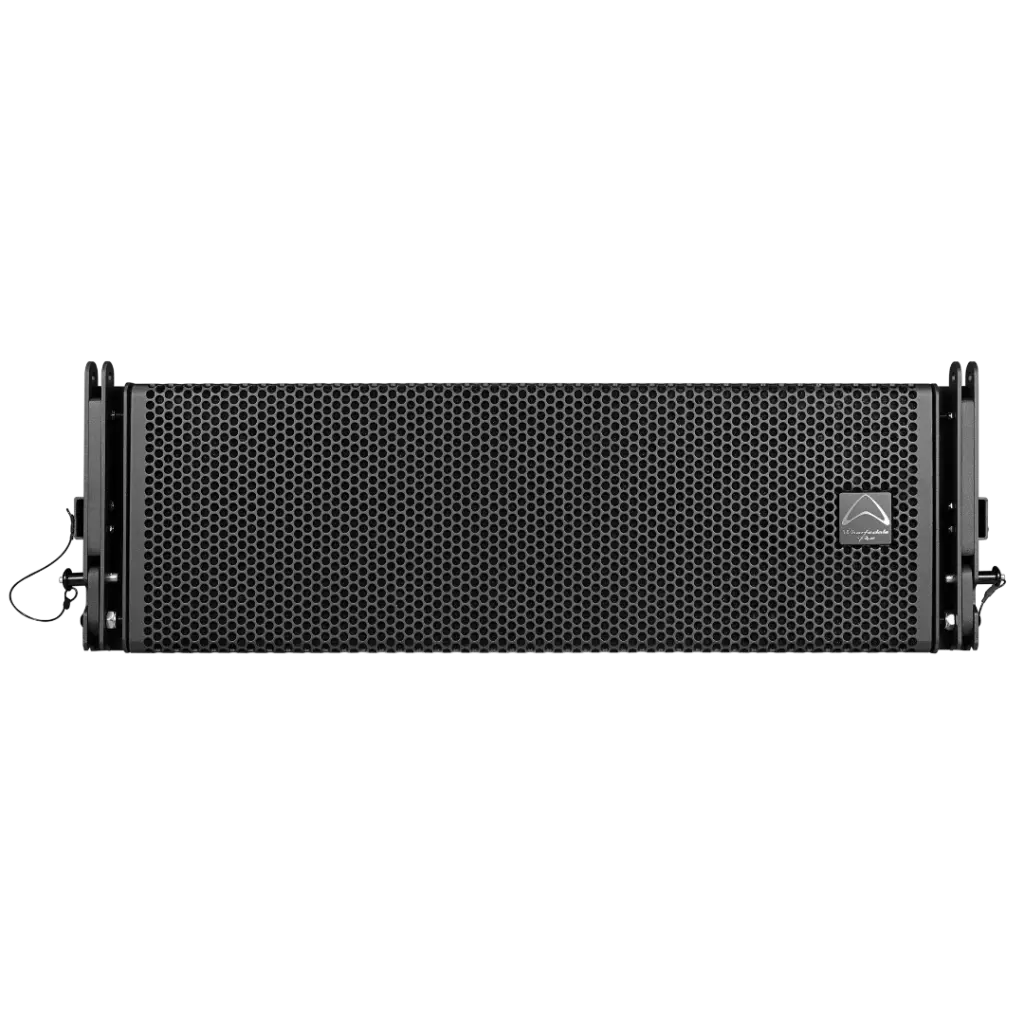

Wharfedale Pro WLA-28XF Passive Line Array Speaker 8-Inches SKU# WD-WLA-28XF
The Wharfedale WLA 28X is a powerful and versatile line array speaker system designed for professional audio applications. With its advanced technology and precise engineering, this speaker delivers exceptional sound quality and coverage for a wide range of venues and events. The WLA 28X combines high-output performance with a compact and lightweight design, making it ideal for portable PA systems, touring setups, and installations where space is limited.
Featuring dual 8-inch LF drivers and a high-frequency waveguide, the WLA 28X ensures clear and detailed audio reproduction across a wide frequency range. The line array configuration allows for precise vertical and horizontal dispersion, resulting in even coverage and excellent intelligibility throughout the listening area. The speaker’s unique waveguide design helps control directivity, minimizing unwanted reflections and ensuring consistent sound projection.
The WLA 28X offers flexible configuration options to suit various applications. It can be flown using the integrated rigging hardware or stacked vertically for ground-based setups. The cabinet is constructed from robust birch plywood, providing durability and enhanced acoustic performance. The speaker is also equipped with SpeakON NL4 connectors for secure and reliable connections.
With its power handling capability of up to 700 watts RMS, the WLA 28X delivers impressive volume levels and headroom, making it suitable for large venues and outdoor events. Additionally, its wide dispersion pattern and adjustable coverage angles allow for precise sound control, ensuring optimal performance in diverse acoustic environments.
- Active or Passive: Passive
- System Type: Array Element
- Configuration: 2-way
- System Continuous Power: 400 W
- System Programme Power: 800 W
- System Peak Power: 1600 W
- Max SPL @ 1m: 133 dB
- Freq Response (+/-3 dB): 65 Hz - 20 KHz
- Freq Range (-10 dB): 60 Hz - 20 KHz
- Bi-amp Mode Switch: No
- Bluetooth: No
- IP Certification: IPX6
- Driver Brand: Wharfedale Pro
- LF Driver Size: 2 x 8"
- LF Magnet Material: Ferrite
- LF Frame Material: Aluminium
- LF Voice Coil Size: 2"
- LF Rated Impedance: 2 x 8 Ω
- LF Power (RE:AES2-2012) 2 x 200 W
- HF Driver Type: Compression Driver
- HF Magnet Material: NdFeB
- HF Voice Coil Size: 3"
- HF Diaphragm Material: Titanium
- HF Exit Size: 1.4″
- HF Power (RE:AES2-2012): 90 W
- HF Rated Impedance: 16 Ω
- HF Nominal Coverage (H x V): 100° x 10°
- Preset Library: No
- Input Connector: Dual WY-24K4Z Waterproof Input Connectors
- Waveguide Type: Constant Directivity
- Cabinet Type: Trapezoid
- Enclosure Material: Birch Plywood
- Grille Material and Finish: Black Aluminium
- Finish Waterproof: Black Paint
- Handles: Yes
- Deployment: Flying, Ground
- Pole Mount: None
- Rigging: Yes
- Integral Rigging: 4 Points
- Sensitivity 2.83v / 1m: 101 dB
- System Rated Impedance: 16 Ω
- Crossover Frequency: 1.7 kHz
- Recommended HPF = BW 18 dB/OCT.: 60 Hz
- Included Accessory: User Manual, 2 x Cable Connectors
- Front Height (mm) 279mm / 10.99"
- Rear Height (mm) 191.2mm / 7.53"
- Width Front (mm) 845mm / 33.27"
- Width Rear (mm) 845mm / 33.27"
- Depth (mm) 467mm / 18.39"
- Height (mm) 360mm / 14.17"
- Width Front (mm) 944mm / 37.17"
- Width Rear (mm) 944mm / 37.17"
- Depth (mm) 540mm / 21.26"
- Net weight: 40 Kg / 88.18 lbs
- Gross weight: 43.5 Kg / 95.90 lbs
