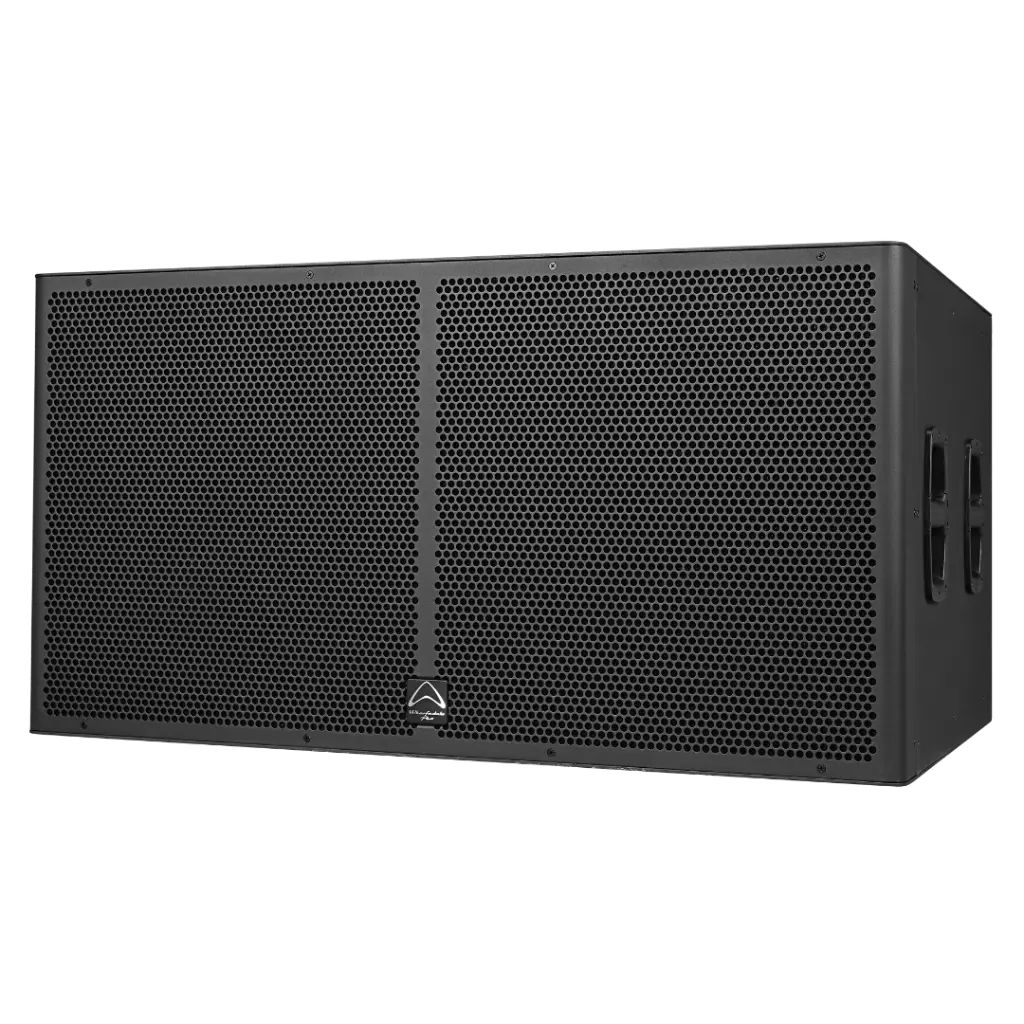

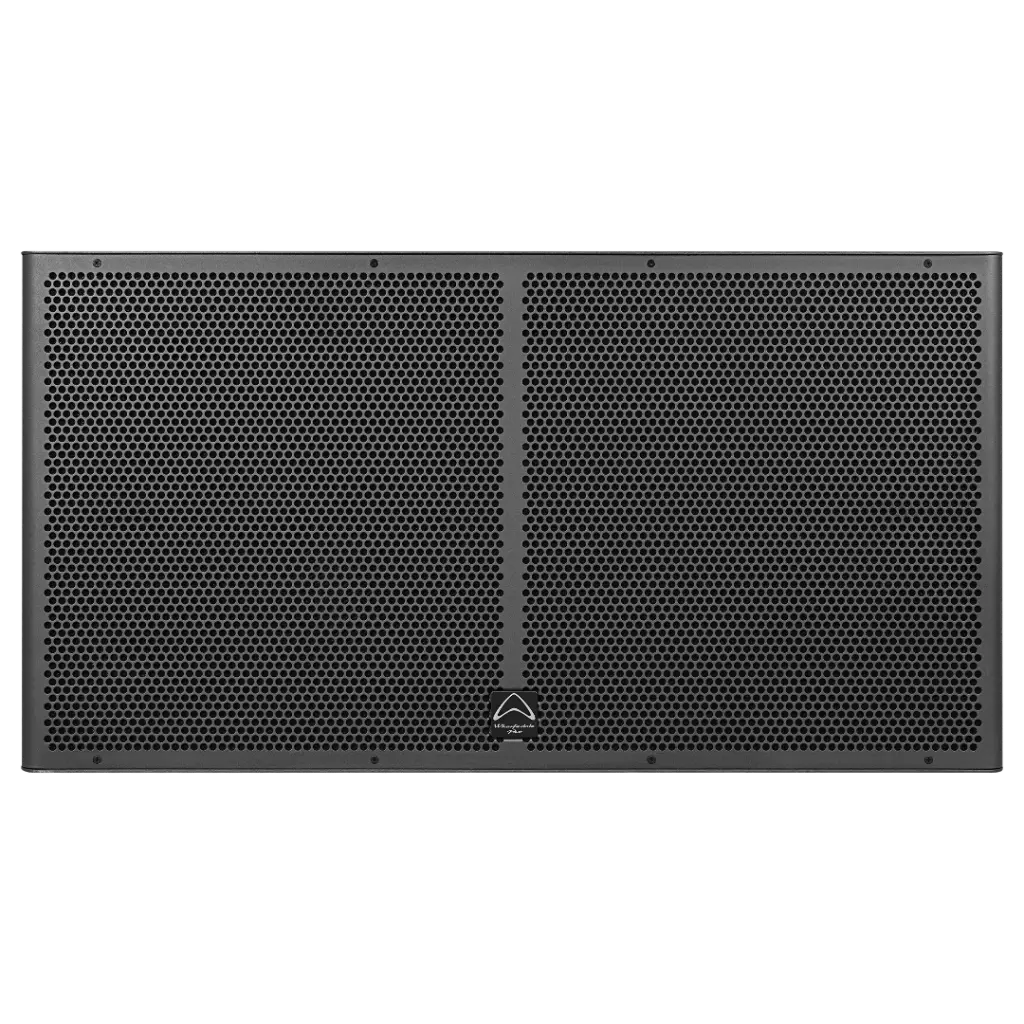

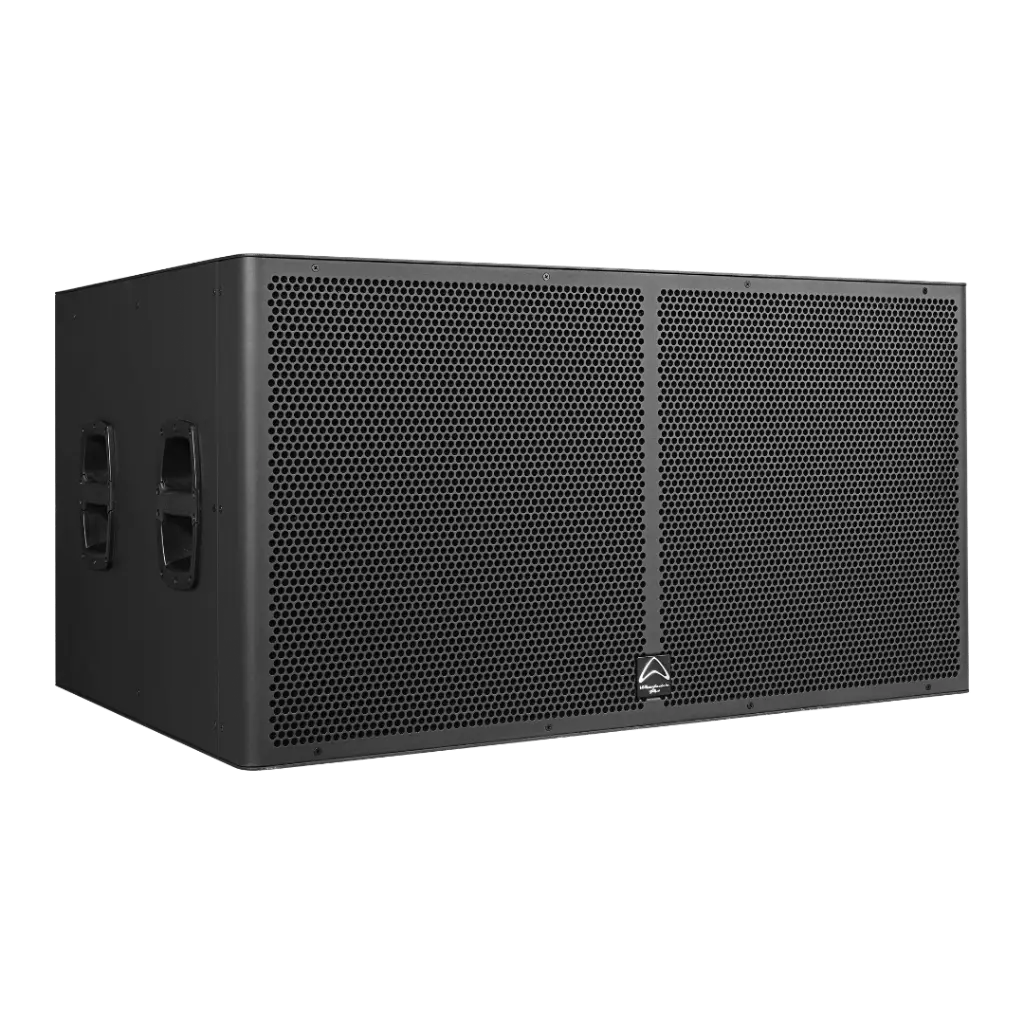

Wharfedale Pro WLA-218BXF Line Array Subwoofer Passive 18-Inches SKU# WD-WLA-218BXF
The WLA-218BXF is a dual 18″ IPX6-rated subwoofer from our WLA-28XF System, engineered for outdoor events and permanent installations demanding extreme low-frequency power and full weather protection.
Based on the proven WLA-218B design, this waterproof “F” model retains the same high-output performance while ensuring complete resistance to rain and moisture. Rust-proof aluminium grilles, wax-coated components and stainless-steel hardware provide long-term environmental durability, while the flat front grille prevents standing water and improves handling during storage.
Constructed from 18 mm birch plywood, WLA-218BXF features dual custom Wharfedale Pro 18″ drivers and a single WY-24K4Z waterproof input connector, delivering a maximum SPL of 148 dB @ 1 m with deep, controlled sub-bass power.
Built for reliability in all weather conditions, WLA-218BXF extends the WLA-28XF system with commanding, waterproof low-end reinforcement.
Specifications
- Active or Passive: Passive
- System Type: Subwoofer
- Configuration: Bass-reflex
- System Continuous Power: 2000 W
- System Programme Power: 4000 W
- System Peak Power: 8000 W
- Max SPL @ 1m: 148 dB (Half Space)
- Freq Response (+/-3 dB): 30 Hz - 800 Hz
- Freq Range (-10 dB): 25 Hz - 1.0 KHz
- Bi-amp Mode Switch: No
- Bluetooth: No
- IP Certification: IPX6
- Driver Brand: Wharfedale Pro
- LF Driver Size: 2 x 18"
- LF Magnet Material: Ferrite
- LF Frame Material: Aluminium
- LF Voice Coil Size: 4"
- LF Rated Impedance: 2 x 8 Ω
- LF Power (RE:AES2-2012): 2 x 1000 W
- Preset Library: No

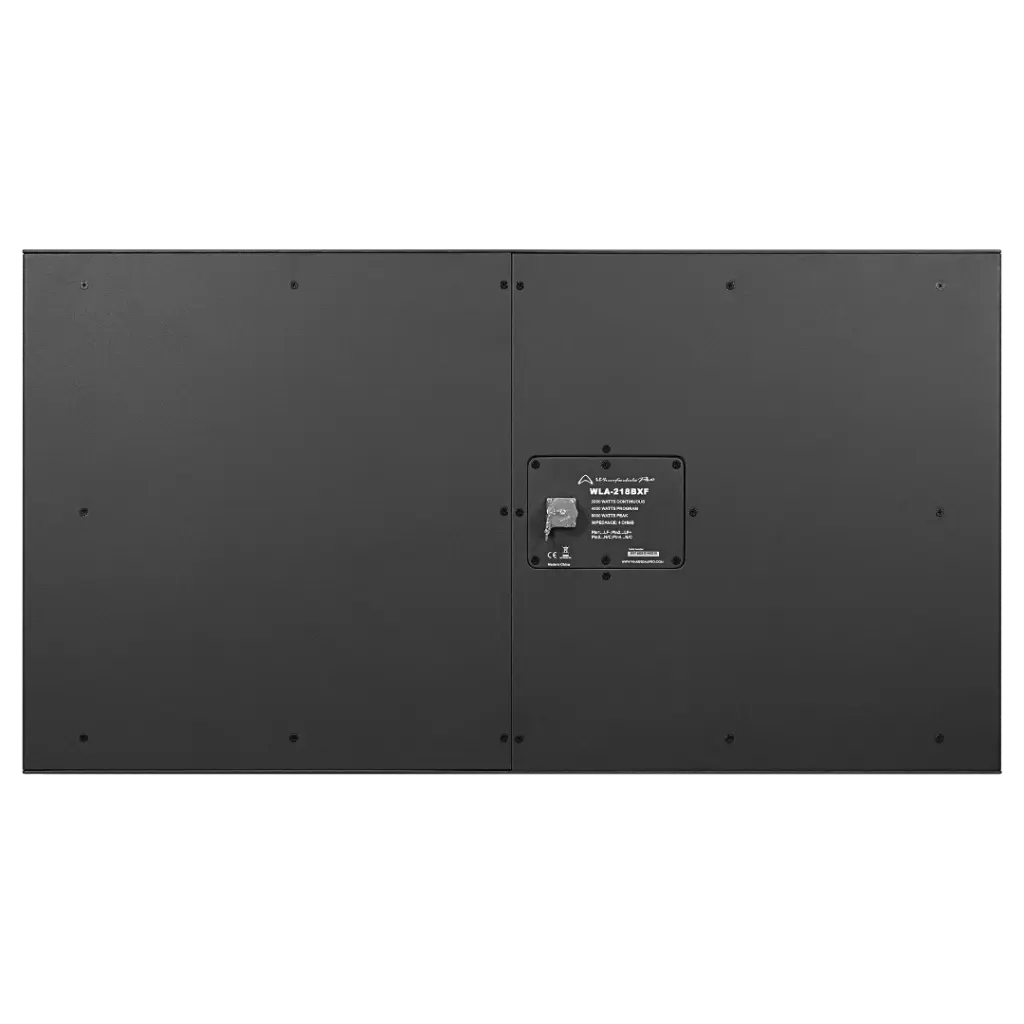

- Input Connector: Single WY-24K4Z Waterproof Input Connector
- Enclosure Material: Birch Plywood
- Grille Material and Finish: Black Aluminium
- Finish Waterproof Black Paint
- Handles: 4
- Deployment: Ground
- Pole Mount: None
- Rigging: No
- Sensitivity 2.83v / 1m: 109 dB
- System Rated Impedance: 4 Ω
- Crossover Frequency: Preset Dependent
- Recommended HPF = BW 18 dB/OCT.: 25 Hz
- Included Accessory: User Manual
Unpacked
- Height front 568 mm / 22.4″
- Height Rear 568 mm / 22.4″
- Width 1073 mm / 42.2″
- Depth 757 mm / 29.8″
Packed
- Height 644 mm / 25.4″
- Width Front 1143 mm / 45.0″
- Width Rear 1143 mm / 45.0″
- Depth 827 mm / 32.6″
Weight
- Net Weight (kg) 97.0kg / 213.4 lbs
- Gross Weight (kg) 111.0kg / 244.2 lbs
Limited 3 Year Manufacturer Warranty
