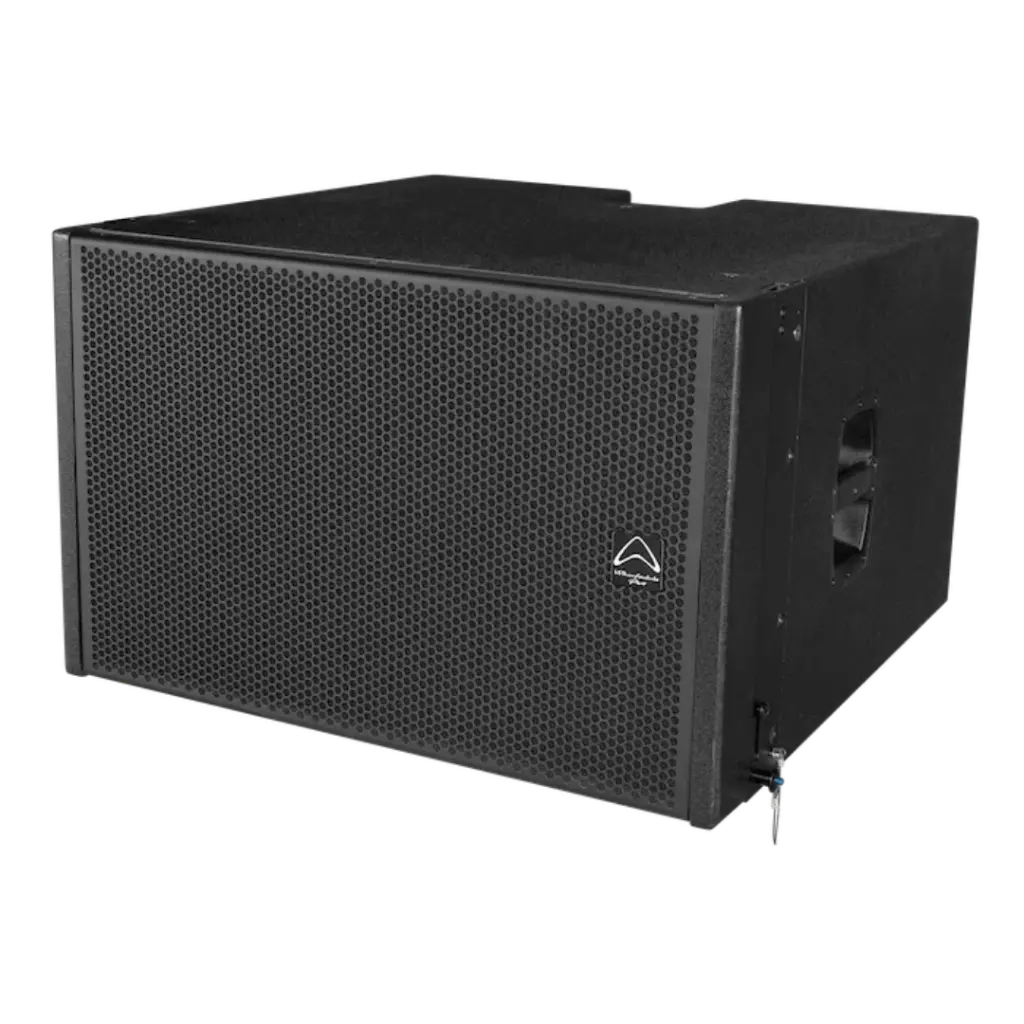

Wharfedale Pro WLA-210SUBA Dual Active Subwoofer with internal DSP & presets 15-Inches SKU# WD-WLA-210SUBA

WLA-210SUBA uses two custom 15″ LF drivers with 4.0″ voice coils to produce deep, punchy, and highly efficient low end. Its 15 mm / 18 mm birch plywood construction ensures maximum cabinet rigidity, allowing the sub to deliver clean bass even at extreme SPL levels.

With a max SPL of 145 dB @ 1 m, WLA-210SUBA easily keeps pace with the output of the array above it. The onboard DSP includes 8 user-selectable presets, providing fast access to tunings optimised for flown, ground-stacked, or mixed system configurations.

An integral rigging system allows WLA-210SUBA to be flown at the top of an array or used as the base of a ground stack. The WLA-210X Common Fly Frame supports system flexibility, accommodating up to 12 × WLA-210A elements plus a WLA-210SUBA for larger deployments.

A powerful, precise, and tour-ready low-frequency partner for the WLA-210A system.

• Dual 15″ LF drivers with 4.0″ voice coils
• 145 dB Max SPL @ 1 meter
• 15 mm / 18 mm Birch plywood construction
• Integral rigging system
• 2000 watts Continuous
• 4000 watts Peak
• 8 x DSP presets

• Active or Passive: Active
• System Type: Subwoofer
• Configuration: Bass-reflex
• System Continuous Power: 2000 W
• System Peak Power: 4000 W
• Max SPL @ 1m: 145 dB (Half Space)
• Freq Range (-10 dB): 35 Hz - 163 KHz
• Freq Response (+/-3 dB): 39 Hz-125 Hz
• Bi-amp Mode Switch: No
• Bluetooth: No
• IP Certification: None
• Driver Brand: Wharfedale Pro
• LF Driver Size: 2 x 15"
• LF Magnet Material: Ferrite
• LF Frame Material: Aluminium
• LF Voice Coil Size: 4″
• Preset Library: No
• Input Connector: Balanced Socket XLR
• Enclosure Material: Birch Plywood
• Grille Material and Finish: Steel
• Finish: Black Tough-Tone
• Handles: Yes
• Deployment: Flying, Ground
• Pole Mount: None
• Brackets Included: Yes
• Rigging: Yes
• Sensitivity 2.83v / 1m: 108 dB
• Crossover Frequency: Preset Dependent
• Amplifier design: Class D
• Driver Protection: RMS, Peak Limiters and DC
• Thermal Protection: Amplifier Shut Down. Auto Reset
• DC and Short Protection: Yes
• Signal Processing: DSP Based, 8 FIR Presets
• Power On Protection: Power switch on/off mute
• Low Line Voltage Shut Down: 60% Nominal Line Voltage
• DC and Short Protection: Yes
• Limiter Indicator: Red LED
• Signal Indicator: Green LED
• Power/Active Indicator: White LED
• Find Function Indicator: Blue LED
• Active loudspeaker Input Impedance: Balanced: 10 KΩ
• Link Connector: Balanced Pin XLR
• Input sensitivity: +4 dBu
• Max input level: +18 dBu
• Update: USB Type B
• Network (RS485): RJ45
• AC Input Connector: powerCON
• AC Loop Through Connector: powerCON
• Main Power: AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic
• Power Supply: High Efficiency Switching Mode Power Supply
• Included Accessory: User Manual

• Front Height mm: 485 mm / 19.09"
• Rear Height mm: 485 mm / 19.09"
• Width (Front): 760 mm / 29.92"
• Width (Back): 760 mm / 29.92"
• Depth: 775 mm / 30.51"

• Height: 575 mm / 22.63"
• Width (Front): 850 mm / 33.46"
• Width (Back): 850 mm / 33.46"
• Depth: 865 mm / 34.06"

• Net Weight: 68 Kg / 149.91 lbs
• Gross Weight: 72.5 Kg / 159.84 lbs
