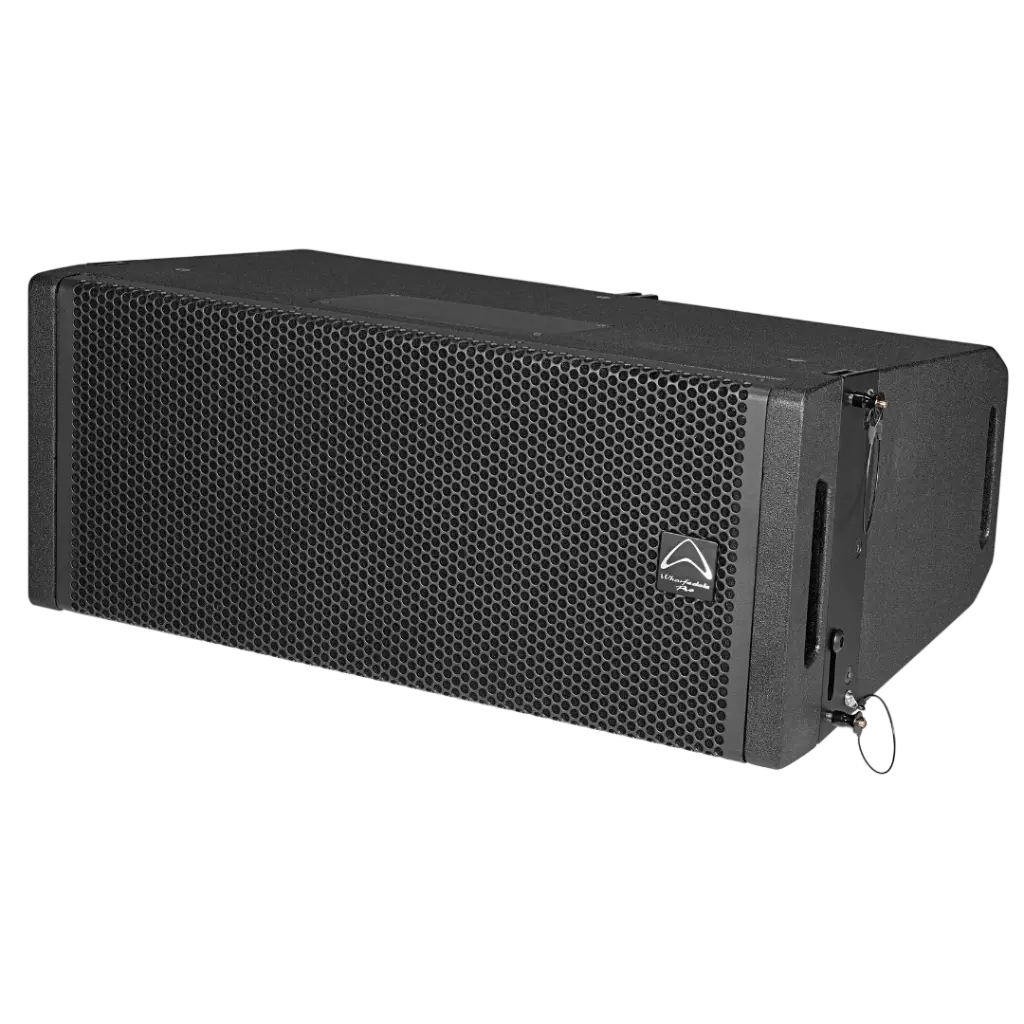

Wharfedale Pro WLA-210A Active Line Array Loudspeaker 10-Inches SKU# WD-WLA-210A

The WLA-210A is a dual 10″ active line array system that redefines clarity, control, and output power through advanced acoustic and digital engineering. Designed and engineered in the UK, it combines innovative hardware design with intelligent DSP processing, making it ideal for both touring and fixed installations.

At its core are two custom Wharfedale Pro 10″ LF drivers and a 3.0″ HF compression driver coupled to the acclaimed EVO-Fold waveguide. Paired with precision-engineered phase plugs, this design ensures a smooth, coherent response across the listening field with minimal phase interference.

An internal 800 W continuous amplifier drives the system, supported by 8 integrated DSP presets with FIR filtering, allowing fast and accurate configuration for any array size or venue. Remote DSP control via RS485 offers full GUI-based tuning and monitoring of every element in the system.

Delivering up to 133 dB max SPL @ 1 m, the WLA-210A combines power, precision, and flexibility—setting a new benchmark for compact active line array performance.

• Dual 10″ active
• 133 dB Max SPL @ 1 meter
• 15 mm / 18 mm Birch plywood construction
• 100° x 10° dispersion
• 700 W LF + 100 W HF Continuous
• 1400 W LF + 200 W HF Peak
• 8 x DSP presets including FIR

• WLA-210A is more than just another dual 10″ active line array system. It incorporates the latest hardware and software technologies from Wharfedale Pro.
• The WLA-210A Array Element features custom phase plugs and the extraordinary EVO-Fold waveguide. Combined, these lead to a huge reduction in the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array.
• The WLA-210A element features an internal 800 W continuous power amplifier and advanced DSP presets including FIR filters. These presets make system tuning simple depending on the physical configuration and size of the array.
• The WLA-210A system has been designed and engineered in the UK and is targeted at the touring and fixed install sectors.

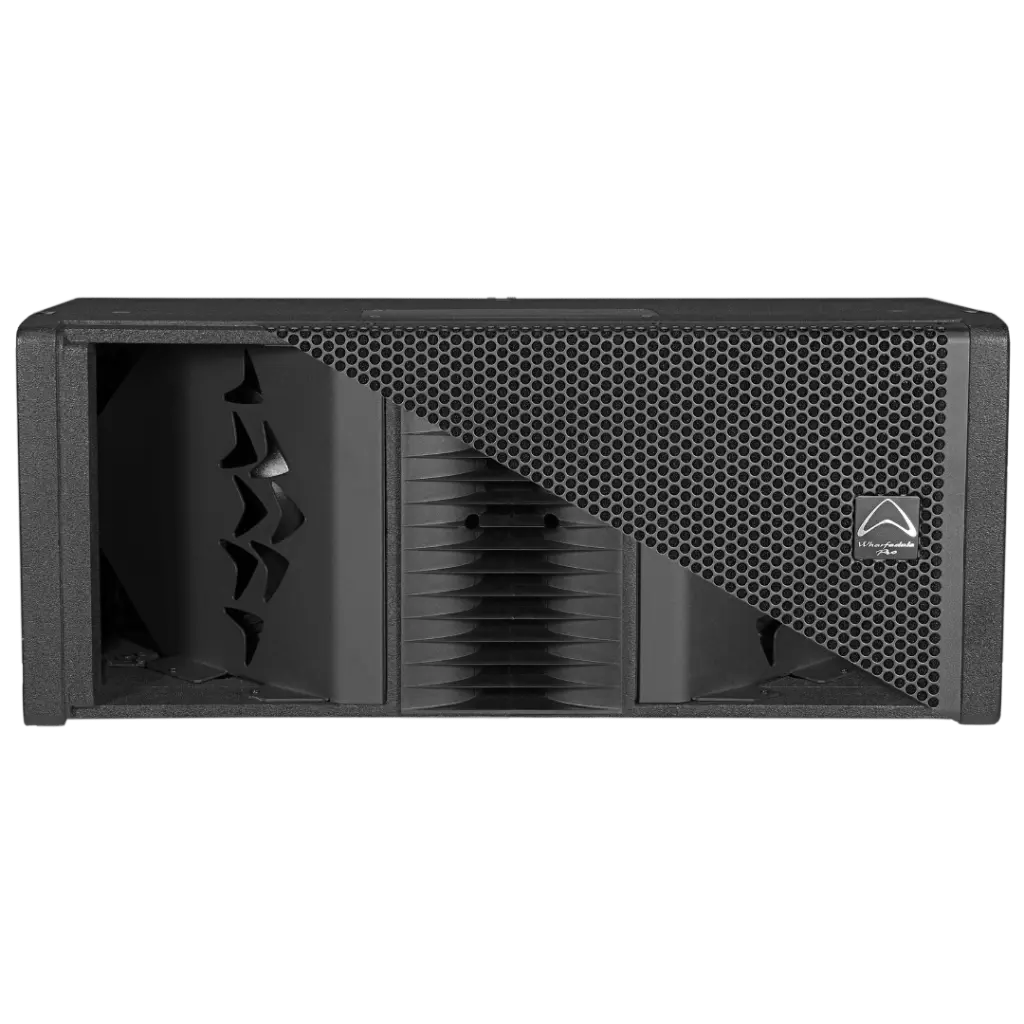

The two crafted phase plugs result in a more consistent frequency response off axis.  The design is usually unseen behind the grille…..but the impact these have on the system performance is stunning.

EVO-FOLD

The central 3.0″ HF compression driver is directly coupled to our EVO-Fold waveguide.

EVO-Fold reduces the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array. The HF compression driver is loaded to a unique EVO-Fold horn. The EVO-Fold horn combines a unique folded and manifold design. The most advanced FEM technology has been used to create this.  The high-mid energy exits produce a uniphasic sound in the widest range of frequencies. And visually, the detail of the EVO-Fold waveguide is a work of art.

• 800 W continuous
• Dual 10″ active array element
• Internal DSP with FIR presets
• Network connection using RS485 protocol
• 133 dB Max SPL @ 1 m
• EVO-Fold waveguide
• Custom phase plugs
• 15 mm / 18 mm Birch plywood construction
• 100° x 10° dispersion
• 700 W LF + 100 W HF Continuous
• 1400 W LF + 200 W HF Peak
• 8 x DSP presets including FIR

• Active or Passive: Active
• System Type: Array Element
• Configuration: 2-way
• System Continuous Power:: LF: 700 W / HF: 100 W
• System Peak Power: LF: 1400 W / HF: 200 W
• Max SPL @ 1m: 133 dB
• Freq Range (-10 dB:) 50 Hz – 20 KHz
• Freq Response (+/-3 dB): 50 Hz – 20 KHz
• Bi-amp Mode Switch: No
• Bluetooth: No
• IP Certification: None
• Driver Brand: Wharfedale Pro
• LF Driver Size: 2 x 10"
• LF Magnet Material: Ferrite
• LF Frame Material: Aluminium
• LF Voice Coil Size: 2.5”
• HF Driver Type: Compression Driver
• HF Voice Coil Size: 3”
• HF Diaphragm Material: Titanium
• HF Exit Size: 1.4″
• HF Power (RE:AES2-2012): 90 W
• HF Rated Impedance: 8 Ω
• HF Nominal Coverage (H x V): 100° x 10°
• Preset Library: No
• Input Connector: Balanced Socket XLR
• Waveguide Type: EVO-Fold
• Enclosure Material: Birch Plywood
• Grille Material and Finish: Steel
• Finish Black Tough-Tone
• Handles: 4
• Deployment: Flying, Ground
• Pole Mount: None
• Rigging: Yes
• Integral Rigging: 3 Points
• Sensitivity 2.83v / 1m: 101 dB
• Crossover Frequency: 1.5 KHz
• Amplifier design: Class D
• Driver Protection: Independent LF/ HF RMS, Peak Limiters and DC
• Thermal Protection: Amplifier Shut Down. Auto Reset
• DC and Short Protection: Yes
• Signal Processing: DSP Based, 8 FIR Presets
• Power On Protection: Power switch on/off mute
• Low Line Voltage Shut Down: 60% Nominal Line Voltage
• DC and Short Protection: Yes
• Limiter Indicator: Red LED
• Signal Indicator: Green LED
• Power/Active Indicator: White LED
• Find Function Indicator: Blue LED
• Active loudspeaker Input Impedance: Balanced: 10 KΩ
• Link Connector: Balanced Pin XLR
• Input sensitivity: +4 dBu
• Max input level: +18 dBu
• Update: USB Type B
• Network (RS485): RJ45
• Main Power: AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic
• Power Supply: High Efficiency Switching Mode Power Supply
• Included Accessory: User Manual

• Front Height mm: 314 mm / 12.36"
• Rear Height mm: 190 mm / 7.48"
• Width (Front): 760 mm / 29.92"
• Width (Back): 760 mm / 29.92"
• Depth: 503 mm / 19.80"

• Height: 404 mm / 15.90"
• Width (Front): 855 mm / 33.66"
• Width (Back): 855 mm / 33.66"
• Depth: 594 mm / 23.39"

• Net Weight: 39.5 Kg / 87.03 lbs
• Gross Weight: 42.5 Kg / 93.70 lbs
