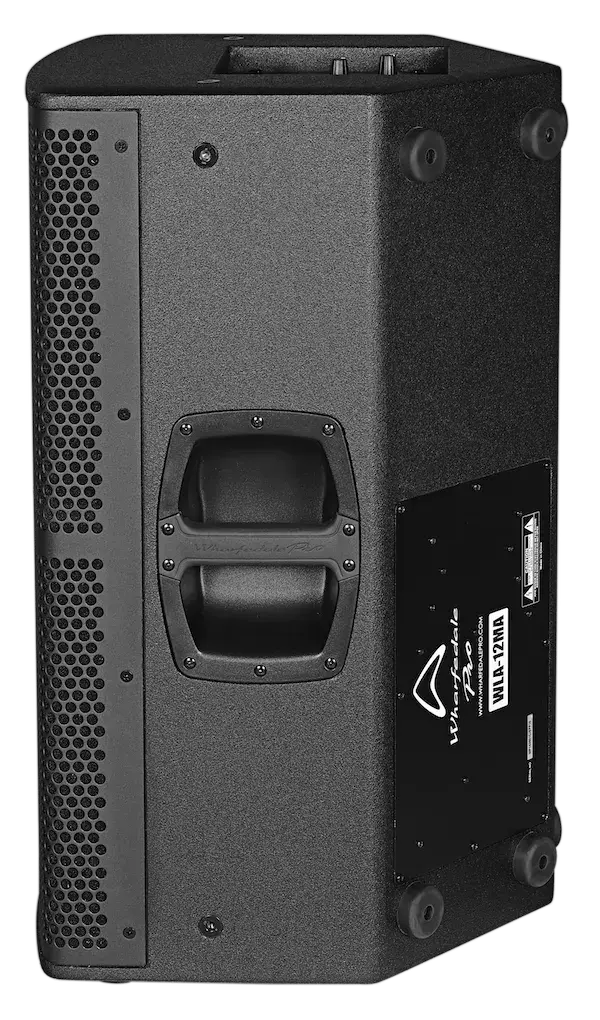

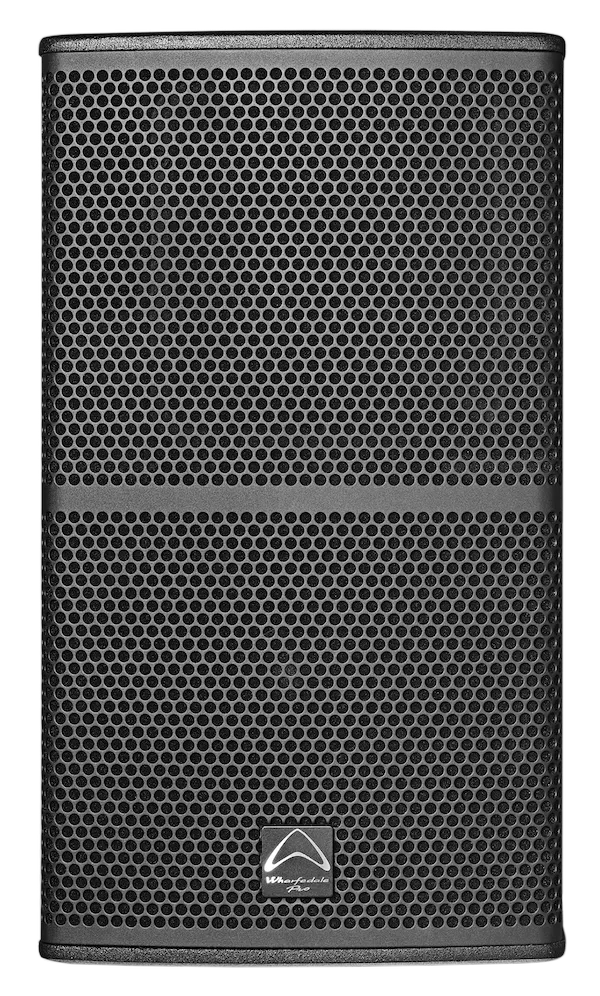

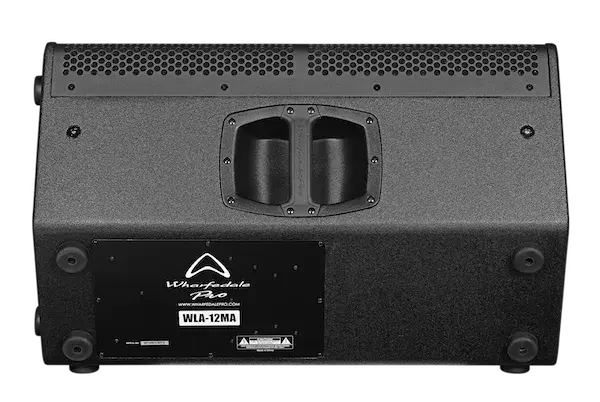

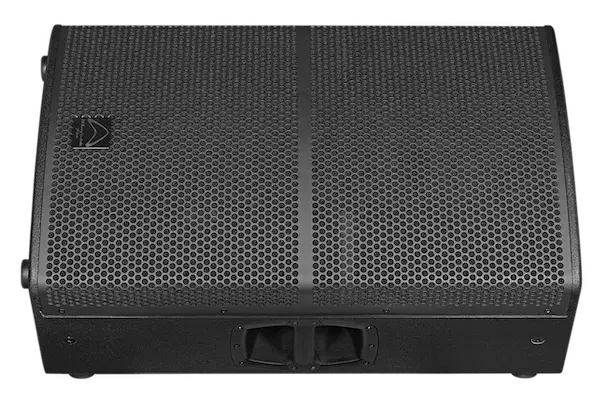

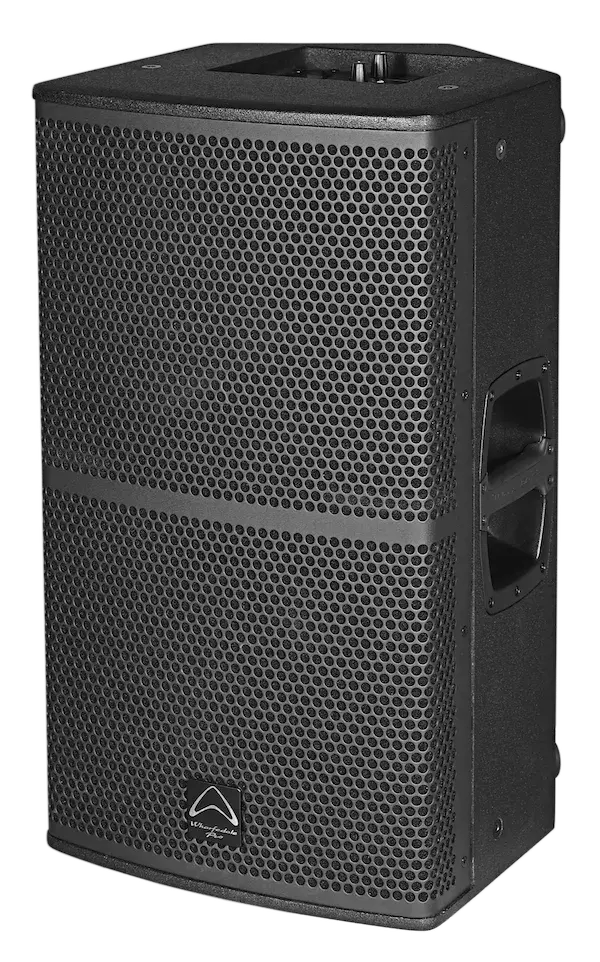

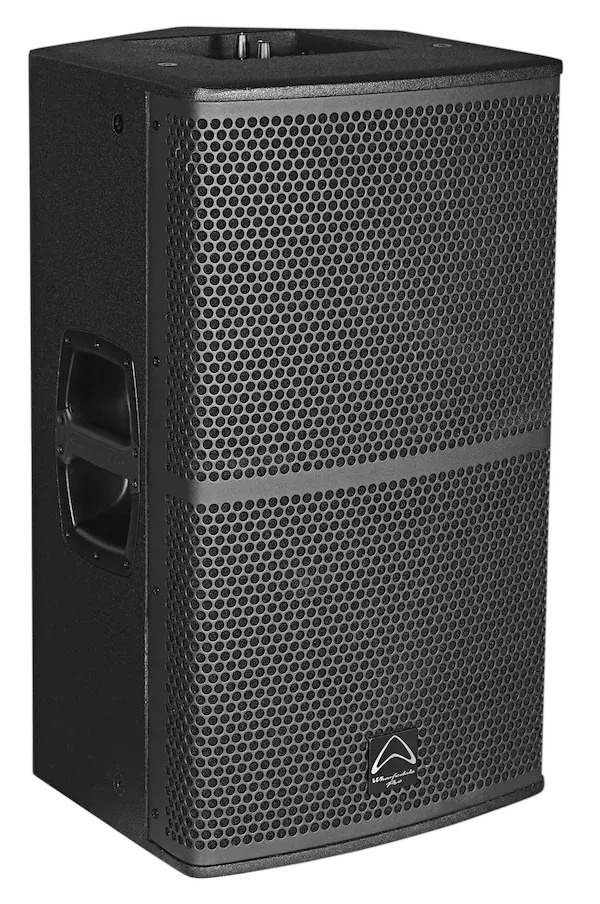

Wharfedale Pro WLA-12MA Active Monitor - 12-Inches SKU# WD-WLA-12MA

Constructed from 15 mm birch plywood, WLA-12MA combines strength and acoustic precision with the flexibility of modern DSP control. Featuring a 12″ LF driver and a 1.75″ HF compression driver, the system delivers 650 W + 100 W continuous (1300 W + 200 W peak) output with exceptional clarity and dynamic headroom.

The integrated DSP includes 8 selectable FIR presets, providing optimised tuning for different stage applications, while Ethernet control allows remote adjustment and system monitoring via a single network cable.

With 90° x 60° dispersion and a maximum SPL of 131 dB @ 1 m, WLA-12MA ensures powerful, accurate monitoring on any stage — built to meet the same professional standards as the acclaimed WLA line array systems.

8 x DSP Presets – built in – including FIR.

Easy to get great results – fast.

The network connection uses RS485 protocol and gives GUI control over the DSP parameters of each element in the array.

The WLA-A Series active monitors feature….

35 mm pole sockets PLUS 8 x M10 rigging points.  This means that they can be used in a wide variety of applications.  From install to onstage.  From FOH to monitor.

• Active or Passive : Passive
• System Type: Floor Monitor
• Configuration: 2-way
• System Continuous Power: 750 W
• System Peak Power: 1500 W
• Max SPL: 131 dB
• Frequency Response (+/-3 dB) 55 Hz - 20 KHz
• Frequency Range (-10 dB) 50 Hz - 20 KHz
• Bi-Amp Mode Switch: No
• Bluetooth: No
• IP Certification: No
• Driver Brand: Wharfedale Pro
• LF Driver Size: 12"
• HF Nominal Coverage (H x V): 90° x 60°
• Preset Library: No
• Input Connector: XLR 1/4" Combo Jack
• Enclosure Material: Birch Plywood
• Grille Material and Finish: Steel
• Finish: Black Paint
• Deployment: Ground, Pole
• Pole Mount: 35 mm, 1.37 inches
• Rigging: Yes
• M10: 10
• Amplifier design: Class D
• Preset List: A) WEDGEB) WEDGE HPFC) COUPLEDD) COUPLED HPFE) FOHF) FOH HPFG) CUSTOMH) CUSTOM
•  Active loudspeaker Input Impedance: Balanced: 10 KΩ
• Link Connector: Balanced Pin XLR Connector
• Input sensitivity: +4 dBu
• Max input level: +18 dBu
• Power Supply: High Efficiency Switching Mode Power Supply
• Included Accessory: Quick Start Guide, AC Cable

• Width 760mm / 29.9″
• Depth 716mm / 28.2″
• Height 485mm / 19.1″

• Width 850mm / 33.5″
• Depth 806mm / 31.7″
• Height 575mm / 22.6″

• Net weight: 61.2 Kg / 134.6 lbs
• Gross weight: 66 Kg / 145.2 lbs
