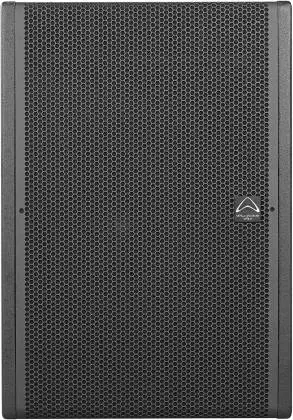

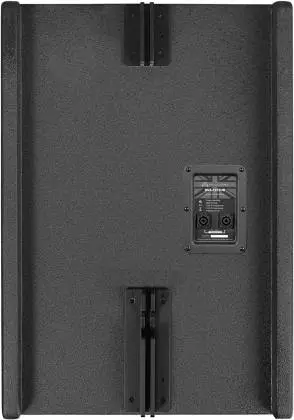

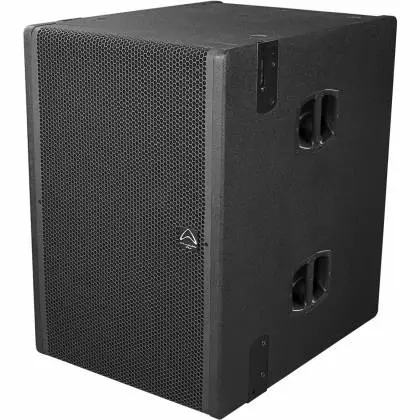

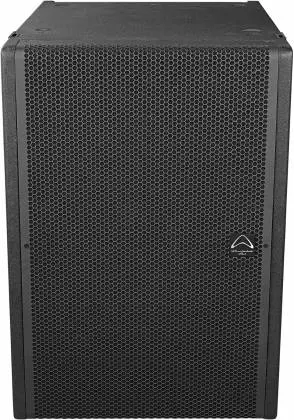

Wharfedale Pro WLA-121SUB Line-Array Passive Subwoofer 21-Inches SKU# WD-WLA-121SUB

The WLA-121SUB WLA Series 6400W Peak 21" Line-Array Passive Subwoofer from Wharfedale Pro has an aluminium demodulating ring to keep distortion low for better performance and reliable.

The science behind the new WLA-1 Hybrid Curvature Array is intense. With a breath-taking 21" subwoofer, the new WLA-1 system has been engineered by IAG's International R&D team to be highly versatile - making it perfect for touring and fixed installations.

The WLA-121SUB uses a 21" Beyma driver with a 4.0" Quattro voice coil which results in the most extreme, but controllable flying subwoofer in the Wharfedale Pro line up.

The WLA-1 system can easily be configured in 3 different ways. As a sub-top pole mount, as a flown array with the optional Common Fly Frame, or as a Horizontal system with the optional WLA-1 Link hardware. Such versatility allows for users to deploy the system for multiple activities. WLA-1 is a unique Hybrid Curvature Array. The science behind its development has been intense, but this extreme engineering results in an extra-ordinary system with massive lows, consistent coverage and phase coherance.

This subwoofer has 3 different rigging points and an M20 pole mount.

• Design: Subwoofer
• System Type: 21" Subwoofer
• Configuration: Single Subwoofer
• Frequency Response (+/-3 dB): 25 Hz - 100Hz
• Frequency Range (- 10 dB): 18 Hz - 125 Hz
• Sensitivity 2.83 V/1 m: 103 dB (level at 1 m under half space conditions using pink noise with crest factor 2, with dedicated preset.)
• Calculated Maximum SPL @ 1 m: 141 dB (level at 1 m under half space conditions using pink noise with crest factor 2, with dedicated preset.)
• System Peak SPL: 147 dB (level at 1 m under free field conditions using pink noise with crest factor 4, with dedicated preset.)
• System Rated Impedance: 4 Ohm

• Size: 545 mm / 21"
• Voice Coil Size: 101.6 mm / 4.0" QUATTRO (4 layers)
• LF Frame Material: Aluminium

• Aluminium demodulating ring
• Waterproof LF cone
• Malt Cross® TCS

• System Continuous Power (W): 1600
• System Programme Power (W): 3200
• System Peak Power (W): 6400
• Crossover Frequency: 100 Hz
• Recommended HPF = BW 18 dB/oct.: 20 Hz
• Input Connector: 2 x speakON compatible

• 3 points for rigging
• Optional Accessories: WLA-1 Common Fly Frame
• Stand pole: M20 Pole mount
• Handles: 2 side(4 pcs) + 2 (top / bottom)

• Cabinet Type: Rectangular
• Enclosure Material and finish: 18 mm plywood / Rhino Rock
• Colour: Black paint
• Grille Material & Finish: Powder coated perforated steel

• Height Front: 820 mm / 32.3"
• Width: 566 mm / 23.4"
• Depth: 760 mm / 29.9"

• Height: 895 mm / 35.2"
• Width Front: 656 mm / 25.8"
• Depth: 850 mm / 33.5"

• Net Weight: 70.5 Kg / 155.43 lbs
• Gross Weight: 76.5 Kg / 168.65 lbs

Limited 3 Year Manufacturer Warranty
