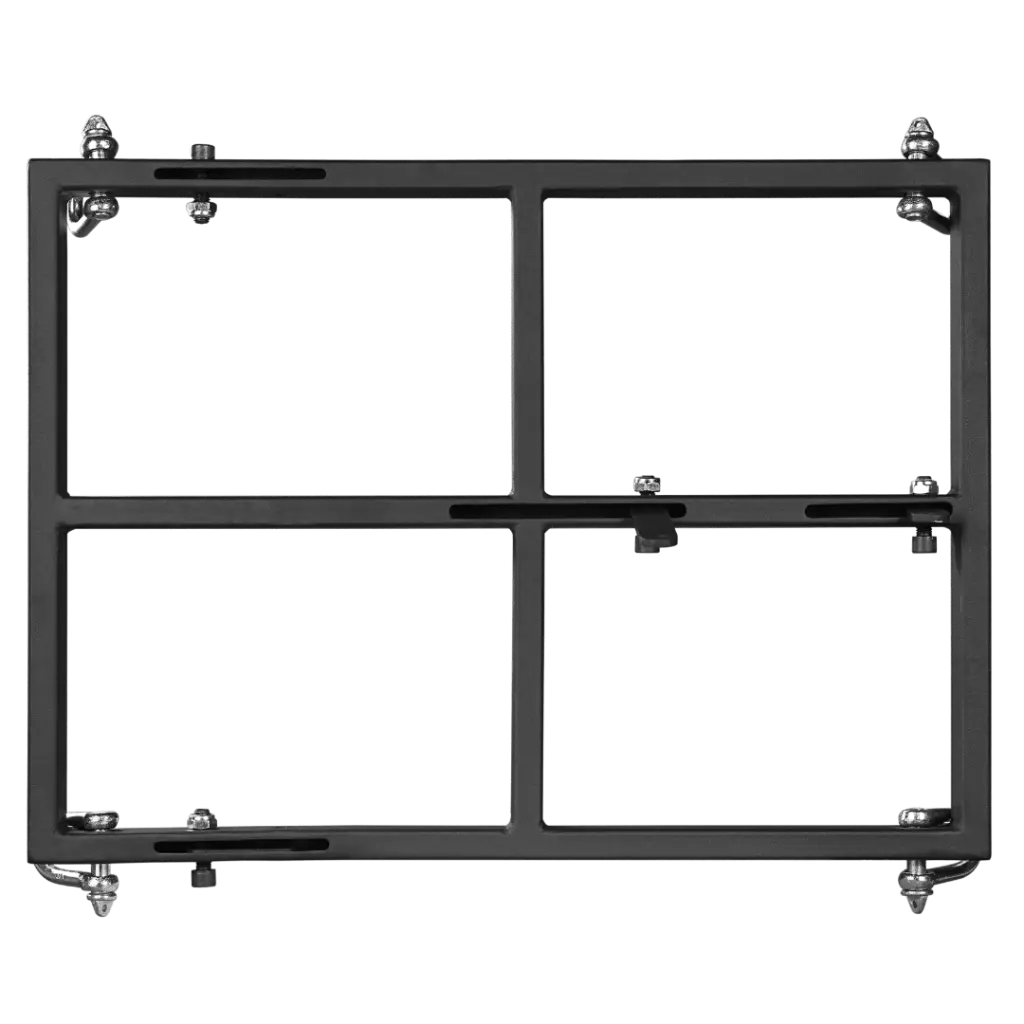

Wharfedale Pro WLA-1 C-FLY FR Common Fly Frame Support SKU# WD-WLA-1 C-FLY FR

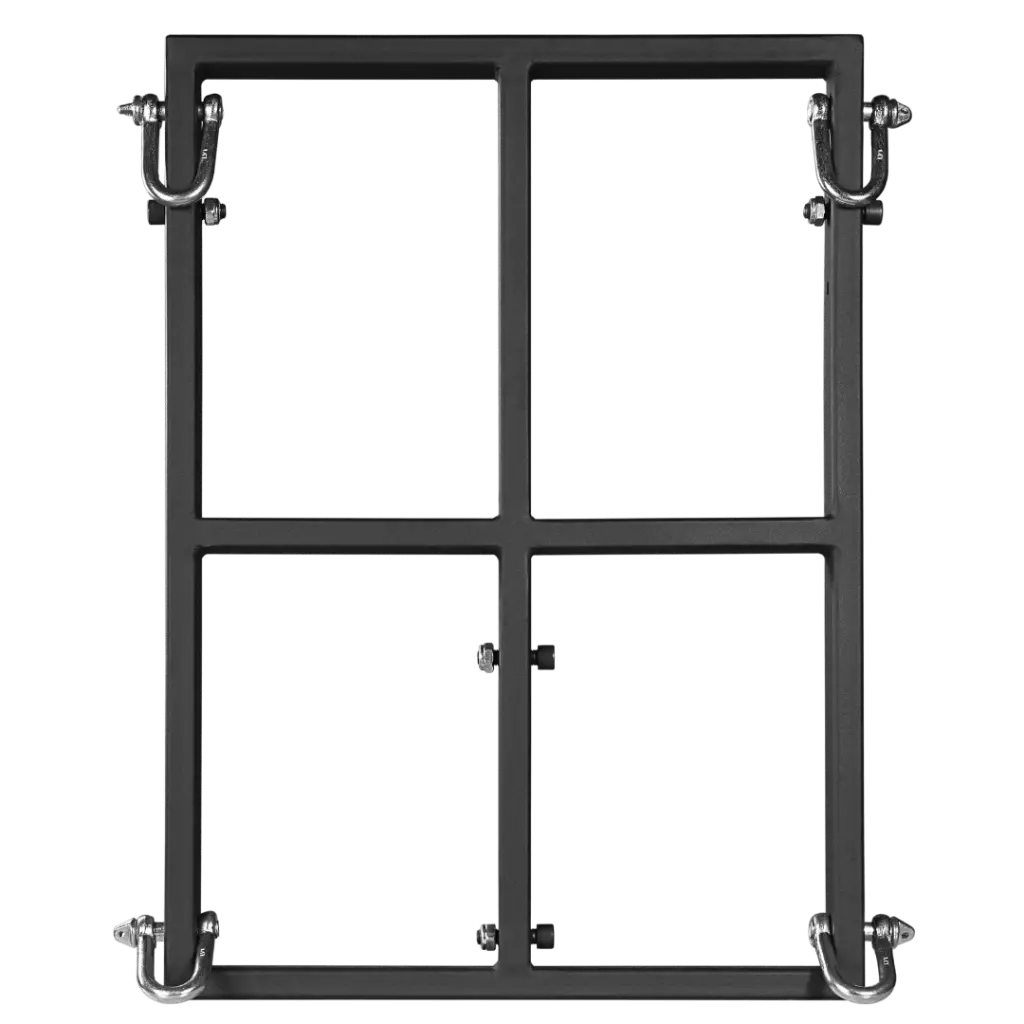

Configure the system how you like with the WLA-1 Common Fly Frame.

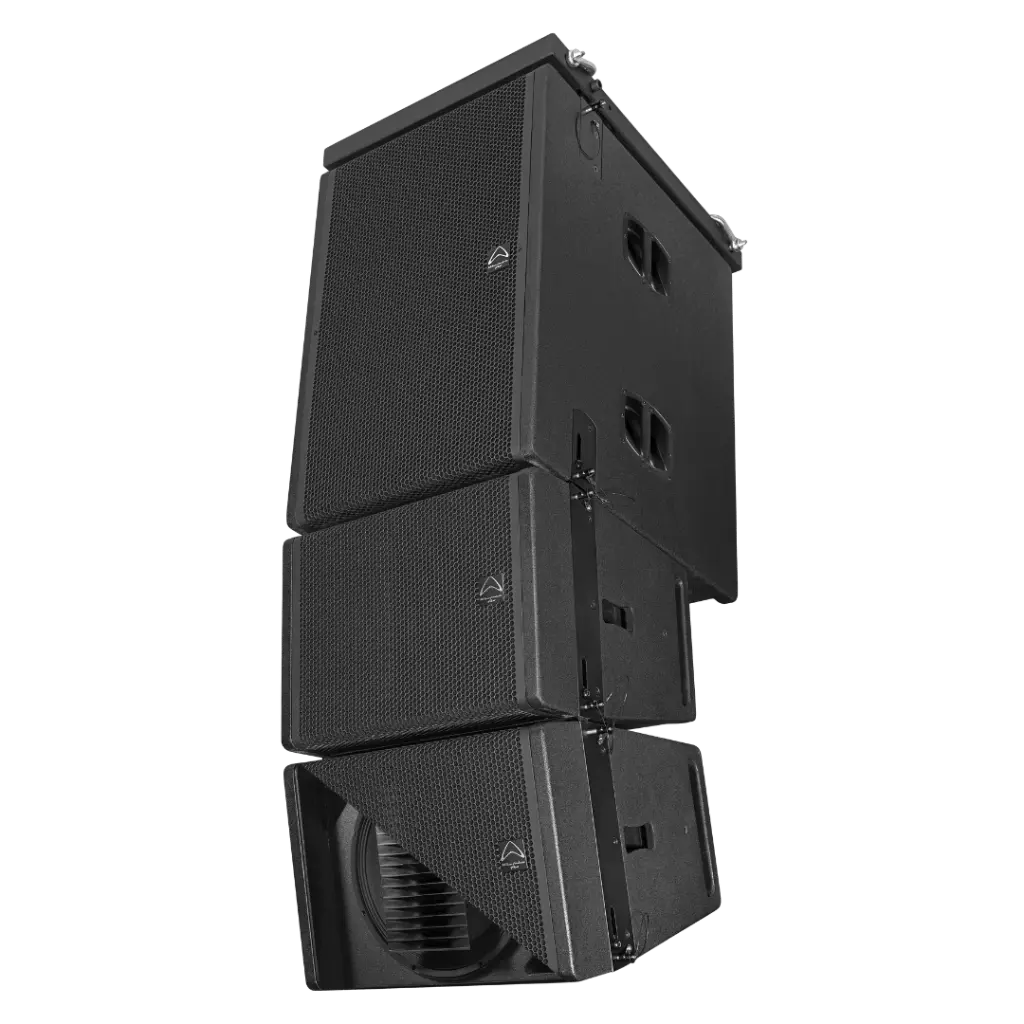

Subs at the top YES WLA-115’s or WLA-112’s. The Common Fly Frame supports all the different models in the WLA-1 series.

Note : WLA-1 Common Fly Frame supports MAX 3 pcs of WLA-118SUB (A).WLA-118SUB (A) will not fly with WLA-121SUB (A).

• Made for: WLA-118SUB, WLA-118SUBA, WLA-121SUB, WLA-121SUBA, WLA-112, WLA-115, WLA-112A, WLA-115A
• Workload Limit (kg) 12:1 Safety Factor: 200
• Suitable For: Flying and Ground Stacking
• TUV Certification: Current CN225SSY 001
• Holding Capacity: Original version - Supports up to 6 pcs of WLA-112(A) or WLA-115(A). WLA-112(A) will not fly with WLA-115(A). Supports up to 3 pcs of WLA-118SUB(A) or 2 pcs of WLA-121SUB(A).WLA-118SUB(A) will not fly with WLA-121SUB(A). Combined array of WLA-118SUB(A) allow maximum 3 x WLA-112(A) or WLA-115(A). Combined array of WLA-121SUB(A) allow maximum 3 x WLA-112(A) or WLA-115(A) .
• Frame Material: Steel
• Frame Finish: Black Paint
• Mounting Type: Base Mounting
• Included Accessory: Shackles included

• Height 790mm / 31.10″
• Width Front 890mm / 35.04″
• Width Rear 890mm / 35.04″
• Depth 900mm / 35.43″

• Net Weight: 12.5 Kg / 27.56 lbs
• Gross Weight: 13.5 Kg / 29.76 lbs
