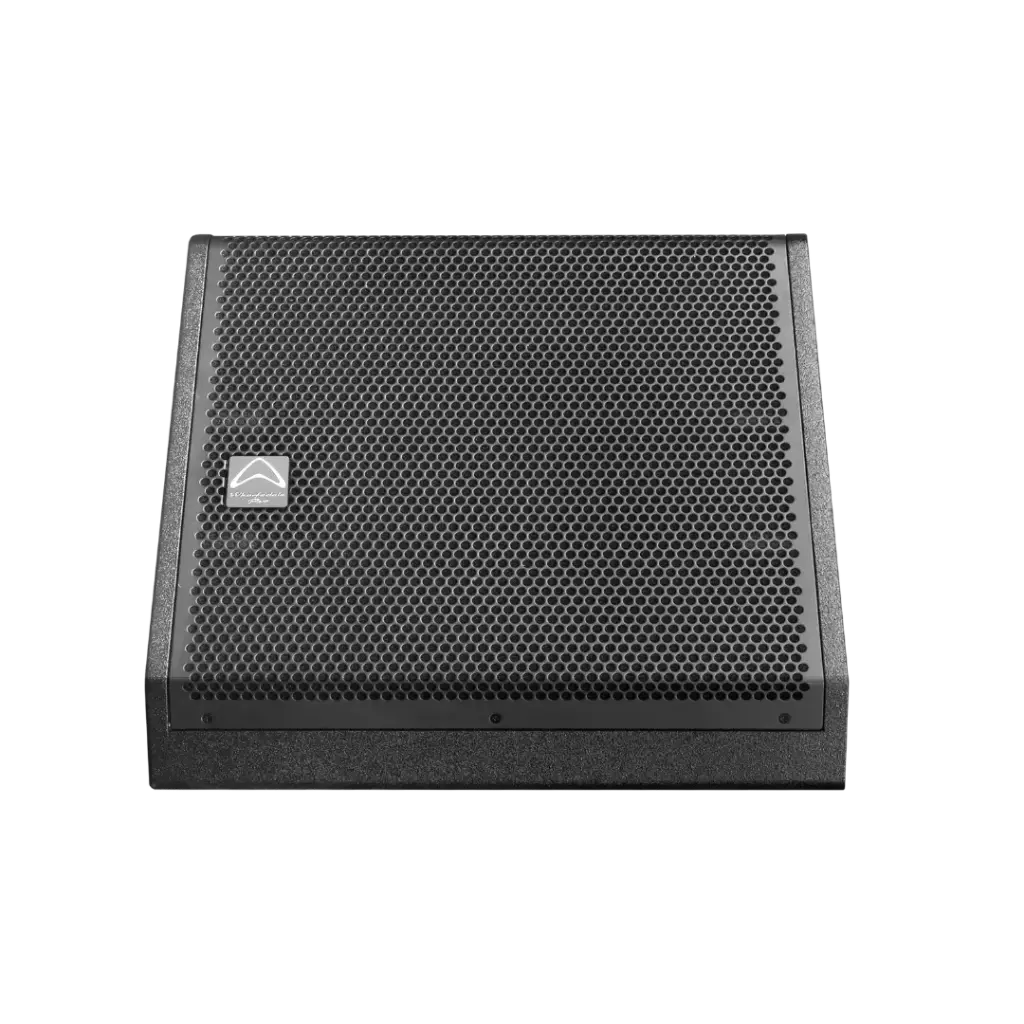

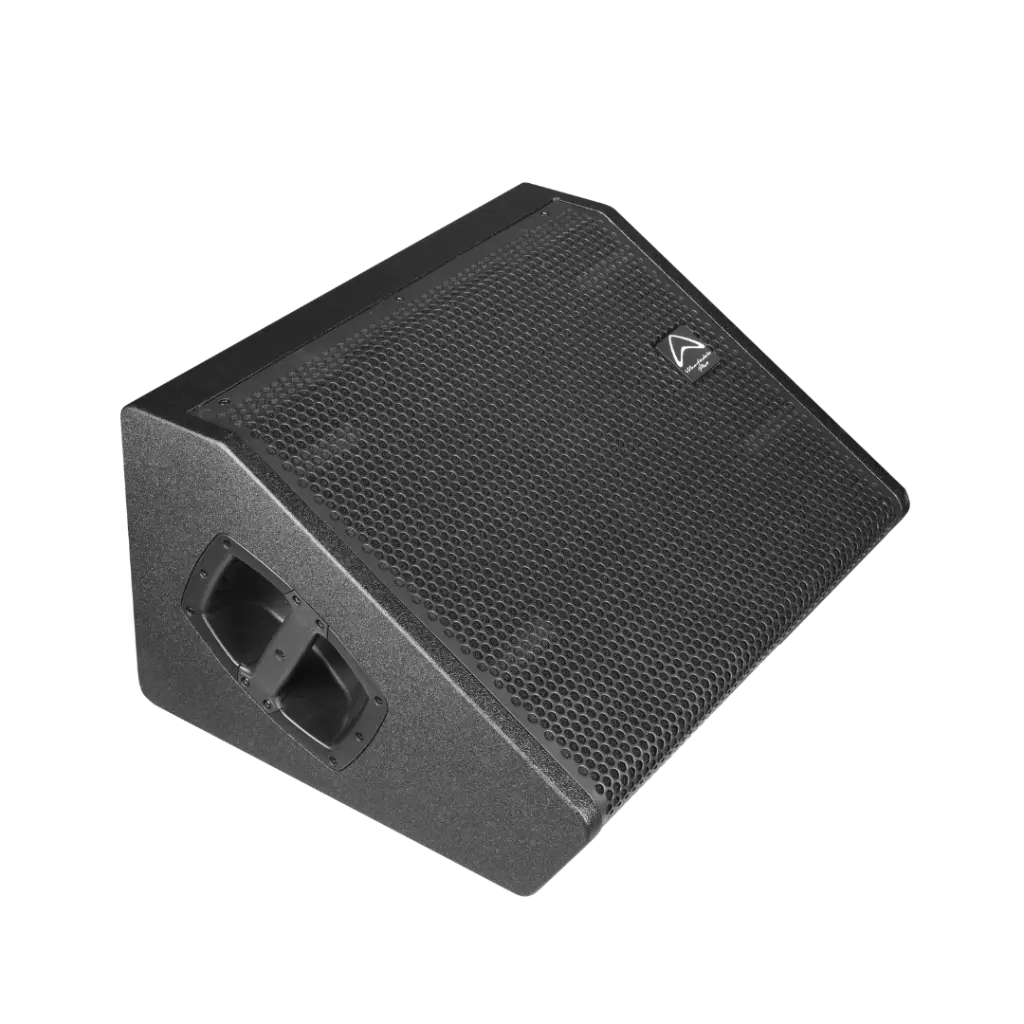

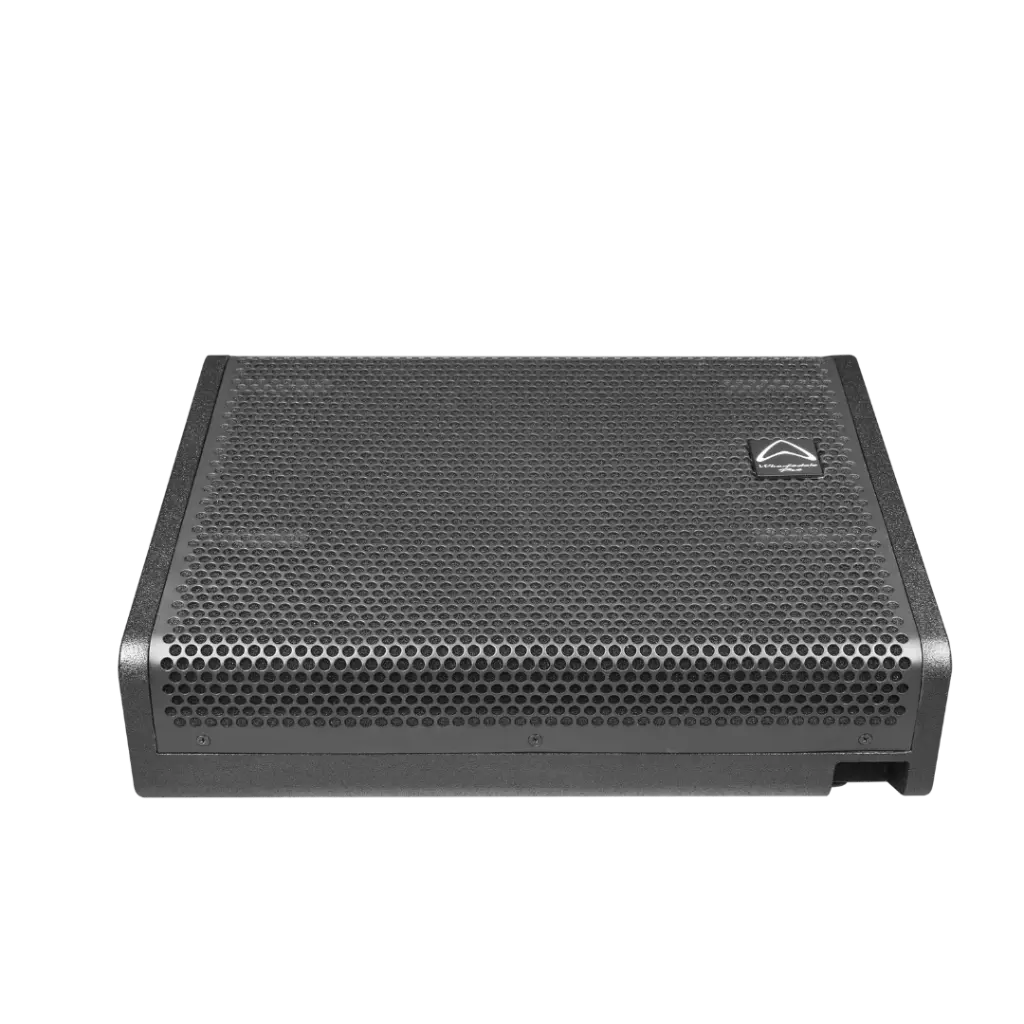

Wharfedale Pro WDG-A12 Active Floor Monitor 12-Inches SKU# WD-WDG-A12
It features a Wharfedale Pro 12″ coaxial driver with a spherical waveguide, delivering smooth, controlled 70° coverage with natural clarity and low feedback. Internal DSP with 8 presets, including FIR filters, allows easy sound shaping for different stage environments. System control and fine-tuning can also be managed remotely via RS485 using our PRO=LINK software.

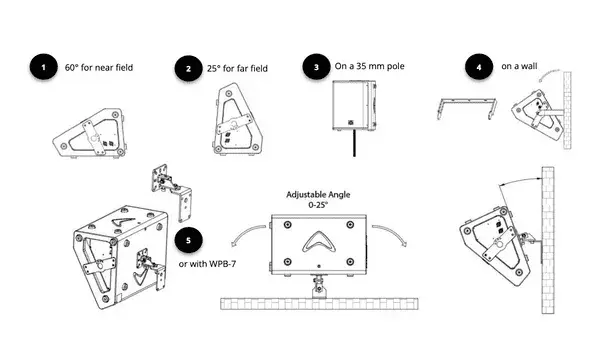

Designed for versatility, WDG-A12 can be deployed at 25° for far-field or 60° for near-field monitoring, while a 35 mm pole socket and optional WPB-7 or U-brackets make it suitable for installation or FOH use.
Finished in Tough-Tone paint for durability, WDG-A12 delivers 400 W continuous (800 W peak) power handling and a maximum SPL of 127 dB at 1 m — a rugged, adaptable solution for performers and engineers demanding precision and reliability on stage.
WDG series has been engineered to re-define the traditional floor monitor. Available in active or passive and with 12” and 15” models, WDG has some handy tricks up its trouser leg……
WDG-12, WDG-15 and active variants WDG-A12, WDG-A15, feature Wharfedale Pro coaxial drivers and a spherical waveguide delivering 70° nominal coverage. All models are versatile due to thoughtful cabinet design. WDG monitors can be deployed as 25° degrees for far field or 60° near field applications. There is also a 35 mm pole socket and WDG can even be deployed on the optional WPB-7 or U- brackets.

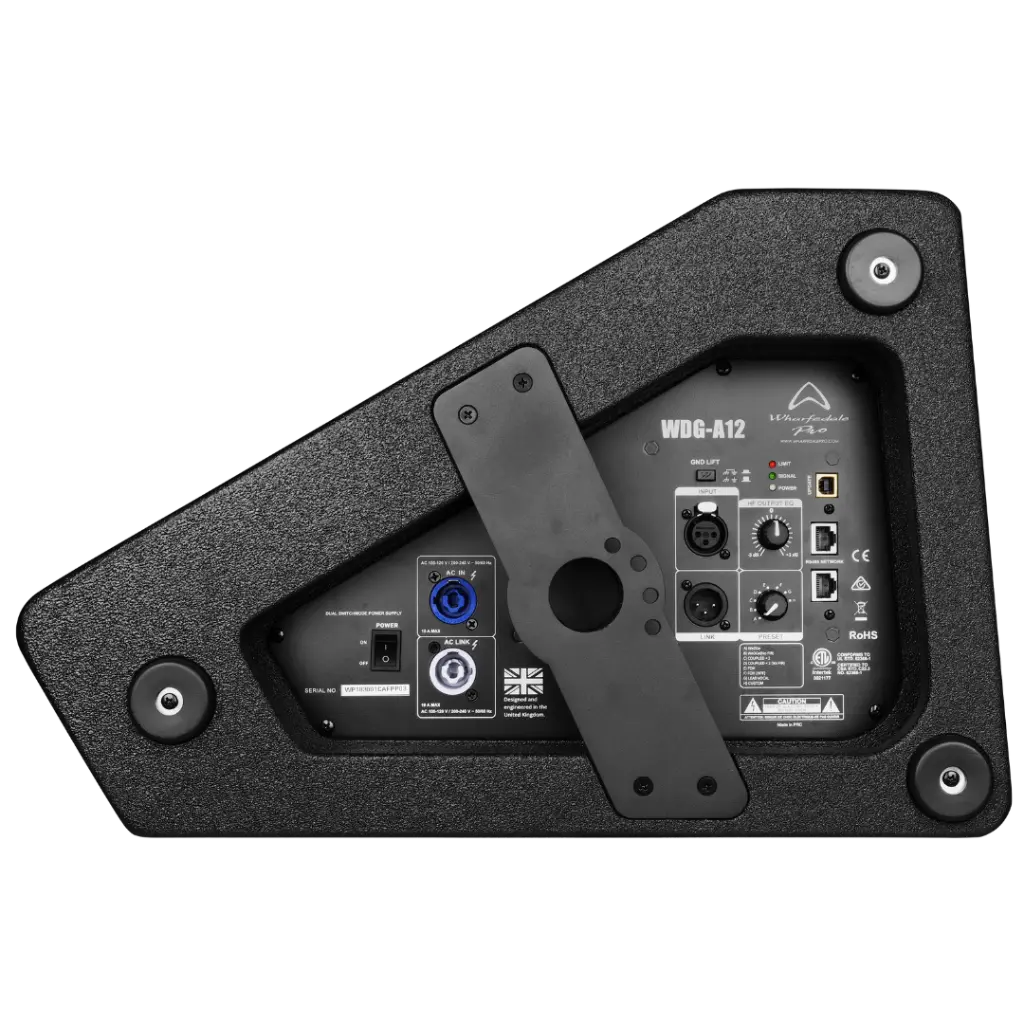

Active models feature 8 x DSP presets for easy hands on control, but can also be managed using RS485 protocol with the Wharfedale Pro PRO=LINK software. This allows for detailed remote preset editing and system management. There is also a practical HF Output EQ knob for any real-time tweaks needed on-stage.
Stage, pole, near or far or even on a wall. WDG delivers all the advantages of coaxial in a versatile manner.
- Versatile floor monitors….with more
- Coaxial design
- Deploy as 25° or 60°
- Spherical waveguides
- Optional WPB-W12/ 15 U-Brackets and WPB-7 for easy wall mounting
- Active models with 8 x presets inc FIR plus PRO=LINK software control
- Durable Tough-Tone paint finish. Put your boot on it!!
- Active or Passive: Active
- System Type: Floor Monitor
- Configuration Coaxial: 2-way
- System Continuous Power: 400 W
- System Peak Power: 800 W
- Max SPL @ 1m: 127 dB
- Freq Range (-10 dB): 40 Hz - 25 kHz
- Freq Response (+/-3 dB): 58 Hz - 20 kHz
- Bi-amp Mode Switch: No
- Bluetooth: No
- IP Certification: None
- Driver Brand: Wharfedale Pro
- LF Driver Size: 12"
- LF Voice Coil Size: 2.5"
- LF Rated Impedance: 4 Ω
- LF Power (RE:AES2-2012): 450 W
- HF Driver Type: Compression Driver
- HF Voice Coil Size: 2"
- HF Diaphragm Material: Titanium
- HF Exit Size: 1"
- HF Power (RE:AES2-2012): 40 W
- HF Rated Impedance: 8 Ω
- HF Nominal Coverage (H x V): 70° conical
- Preset Library: No
- Input Connector: 1 x Balanced XLR
- Waveguide Type: Spherical
- Enclosure Material: Birch Plywood
- Grille Material and Finish: Steel Black
- Finish: Black Tough-Tone
- Handles: 1
- Deployment: Flying, Ground, Pole, Wall Mount
- Pole Mount: 35 mm
- Brackets Included: No
- Rigging: Yes
- M8: 4
- Sensitivity 2.83v / 1m: 98 dB
- Crossover Frequency: 1.9 kHz
- Recommended HPF = BW 18 dB/OCT.: 40 Hz
- Amplifier design: Class D
- DSP Controls: HF Output EQ -3 dB to +3 dB
- Preset list: WeDGe, WeDGe (No FIR), Coupled <2, Coupled <2 (No FIR), FOH, FOH (HPF), Lead Vocal and Custom
- Driver Protection: Independent LF/ HF RMS and Peak Limiters
- Thermal Protection: Amplifier Shut Down. Auto Reset
- DC and Short Protection: Yes
- Clip Limiter: Yes
- DC and Short Protection: Yes
- Active loudspeaker Input Impedance: 10 KΩ Balanced
- Link Connector: pin XLR
- Input sensitivity: +4 dBu
- Max input level: +18 dBu
- Line output: Pin XLR
- Main Power: 100-120 V~/200-240 V~,50/60 Hz
- Power Supply: SMPS
- Included Accessory: Quick Start Guide
