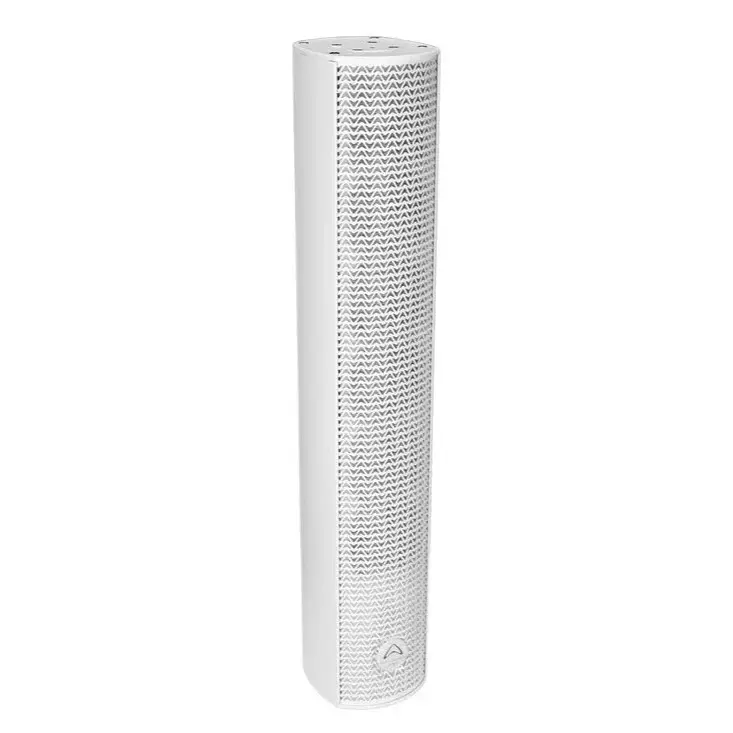

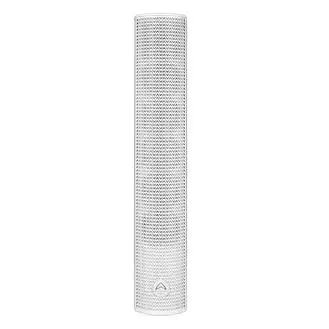

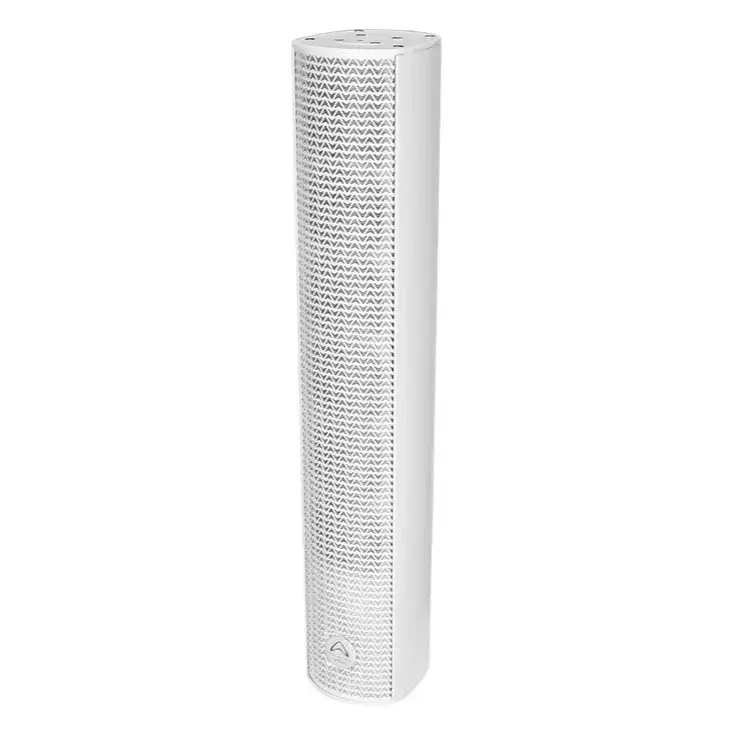

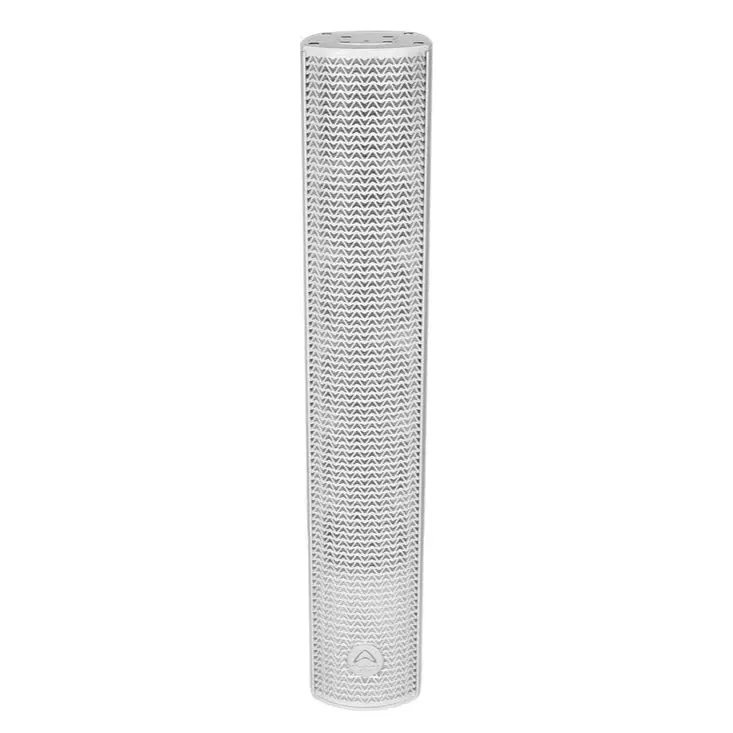

Wharfedale Pro SIGMA-XV5T Installation Column Array Speaker

For the SIGMA-XV5 there is one, while the SIGMA-XV9 features two compression drivers, each with a mini EVO-Fold waveguide.

This mini EVO-Fold design provides consistent dispersion coverage on both the horizontal and vertical planes with the sound radiating from one, singular and coherent, source.

• Re-evaluated performance

• Updated column models with HF drivers
• Column models with mini EVO-Fold waveguides
• 70 V / 100 V Hi-Z Column models
• EASE gll files available for download
• Supported with system diagrams
• Supported with downloadable FIR presets
• Easy fixings and brackets

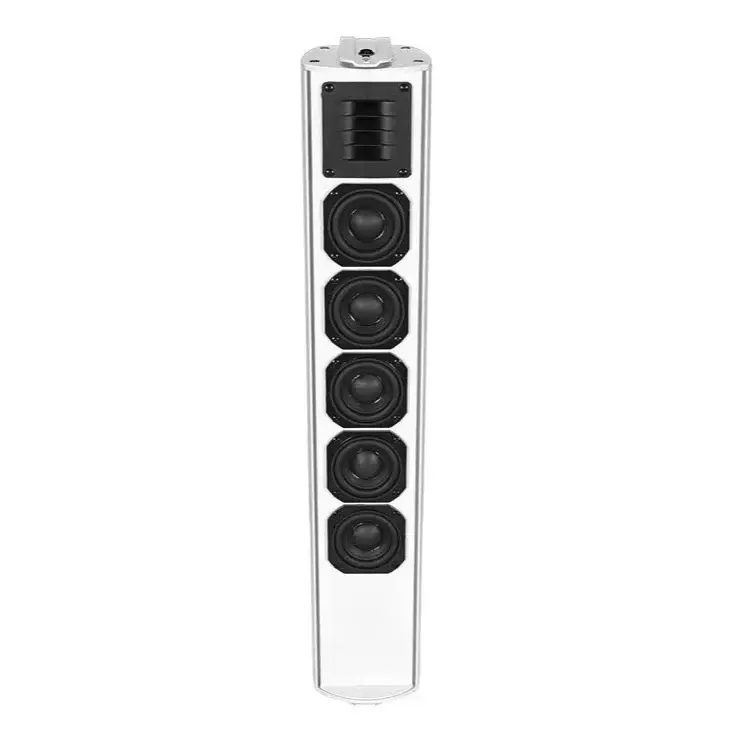

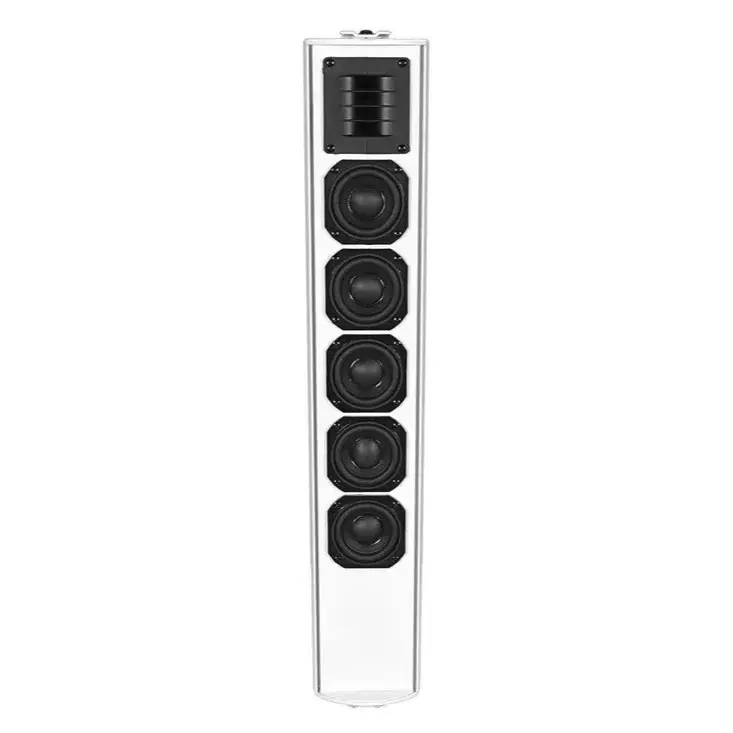

• 5 x 3″ full range drivers
• 1 x HF compression driver
• 180 W AES (Continuous)
• 360 W Programme
• 720 W Peak
• 123 dB Max SPL @ 1 m
• 70 V / 100 V Hi-Z model

SIGMA-XV models feature the highly refined mini EVO-Fold waveguide along with HF compression drivers.  For the SIGMA-XV5 there is one, while the SIGMA-XV9 features two compression drivers, each with a mini EVO-Fold waveguide.

This mini EVO-Fold design provides consistent dispersion coverage on both the horizontal and vertical planes with the sound radiating from one, singular and coherent, source.

Installations can be complicated enough, so we have made SIGMA-X series as easy as possible.

For the SIGMA-XV Column array, either use the included U bracket, or for even more adjustment, use the optional WPB-SV which gives up to 15° tilt and 180° of rotation.

• Active or Passive: Passive
• System Type: Column
• Configuration: 2-way
• System Continuous Power: 180 W
• System Programme Power: 360 W
• System Peak Power: 720 W
• Max SPL @ 1m: 123 dB
• Freq Response (+/-3 dB): 160 Hz - 18 kHz
• Freq Range (-10 dB): 150 Hz - 20 kHz
• Bi-amp Mode Switch: No
• Bluetooth: No
• IP Certification: None
• Driver Brand: Wharfedale Pro
• LF Driver Size: 5 x 3"
• LF Voice Coil Size: 1.3
• LF Rated Impedance: 4 Ω
• LF Power (RE:AES2-2012): 40 W
• HF Driver Type: 1 x 1″ PEI EVO-Fold Driver
• HF Voice Coil Size: 1"
• HF Diaphragm Material: PEI
• HF Exit Size: 1"
• HF Power (RE:AES2-2012): 20 W
• HF Nominal Coverage (H x V): 120˚ x 30˚
• Preset Library: No

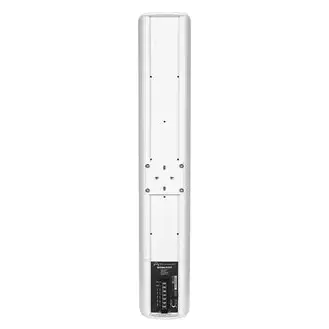

• Input Connector: 1 x barrier strip
• Waveguide Type: Mini EVO-Fold
• Enclosure Material: Aluminum
• Grille Material and Finish: Steel Black or White
• Finish: Black or White Tough-Tone paint
• Deployment: Wall Mount
• Pole: Mount None
• Brackets Included: Yes
• Rigging: No
• Sensitivity 2.83v / 1m: 95 dB
• System Rated Impedance: 8 Ω
• Crossover Frequency: 2.5 kHz
• Recommended HPF = BW 18 dB/OCT.: 150 Hz
• Transformer (T): Yes
• Transformer Taps (70 V): 7.5 / 15 / 30 / 60 W
• Transformer Taps (100 V): 15 / 30 / 60 W
• Input Connectors (T): Barrier Strip
• Included Accessory: Quick Start Guide, 2 x Wall Brackets

• Height 865mm / 34.06″
• Width Front 210mm /8.27″
• Width Rear 210mm / 8.27″
• Depth 210mm / 8.27″

• Net Weight: 8.4 Kg / 18.52 lbs
• Gross Weight: 9.2 Kg / 20.28 lbs
