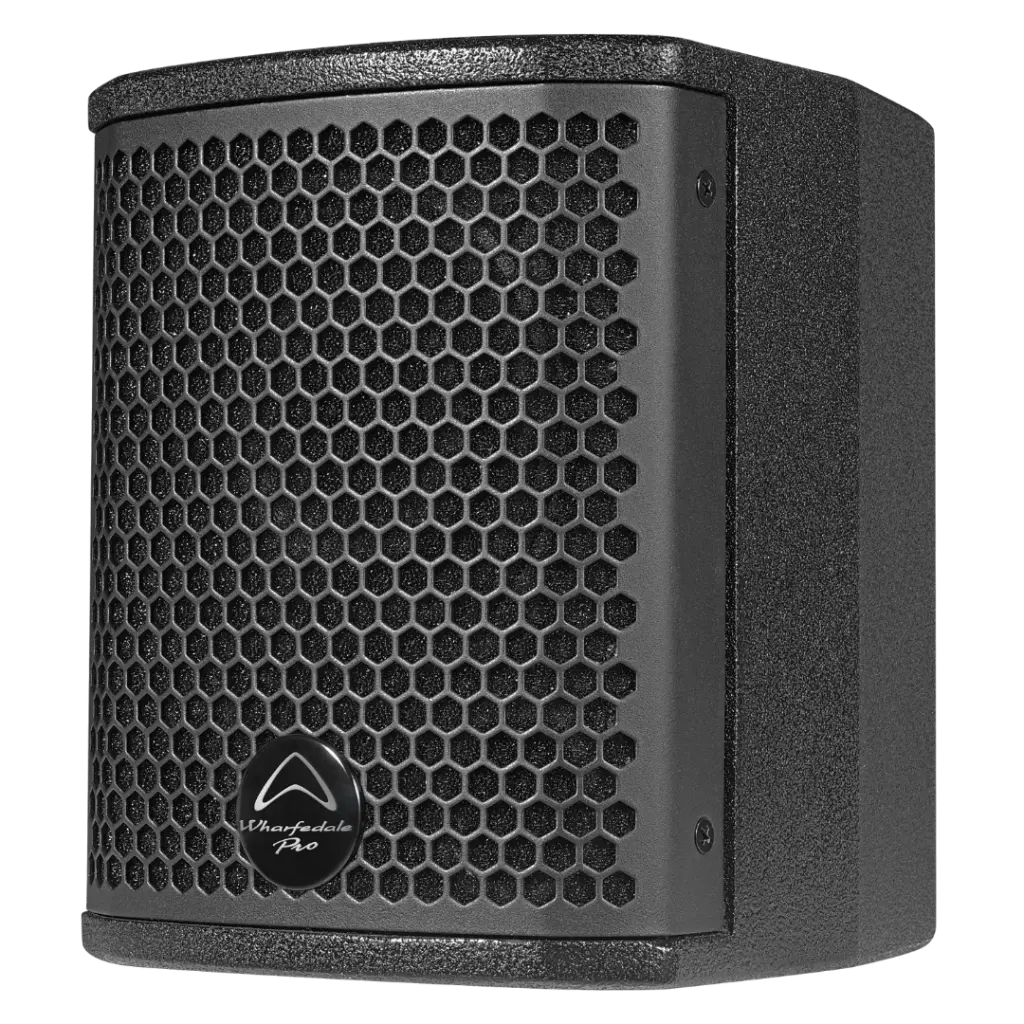

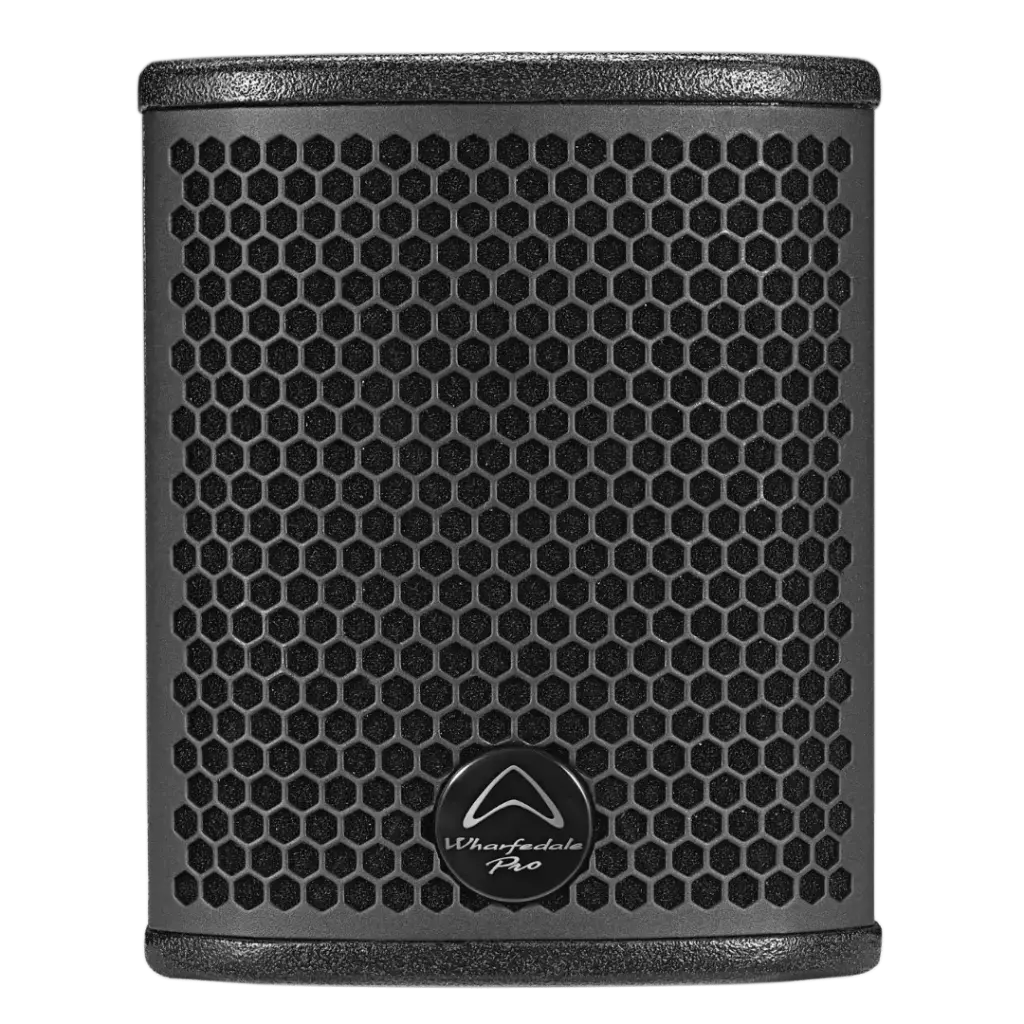

Wharfedale Pro GPL-5 Passive Full-Range Speaker 5-Inches

The Wharfedale Pro GPL-5 is a versatile, high-performance loudspeaker designed for professional audio applications. With its robust build and high-quality components, the GPL-5 delivers exceptional sound clarity and reliability. Its high-power handling capabilities make it suitable for a wide range of events, from live performances to installations. The GPL-5 features a well-tuned combination of drivers and advanced design to ensure a balanced frequency response and strong output, even in challenging environments. Ideal for venues and mobile setups, the GPL-5 provides an outstanding audio experience, ensuring high-quality sound delivery for demanding audio professionals.

All GPL models use premium Baltic birch plywood construction. Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character. GPL is also covered in our most durable and hard-wearing Rhino Rock paint finish. This ensures that a GPL loudspeaker will always look as good as the day you installed it.

Installations can be complicated enough, so Wharfedale Pro have made GPL series as easy as possible.

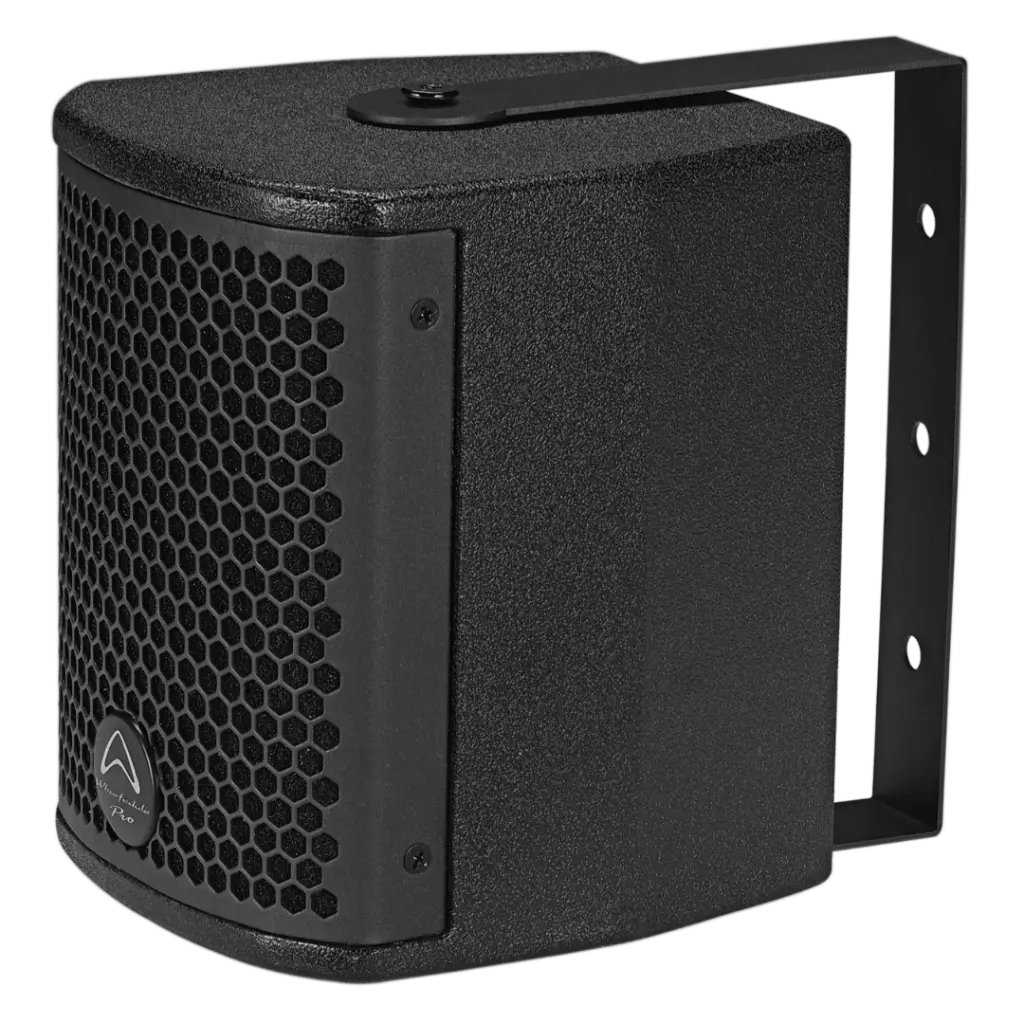

GPL-5 and GPL-8 are quickly fixed to a wall using the WPB-3 wall bracket or the included steel yoke. GPL-12, GPL-12HQ, GPL-15 and GPL-15HQ are quickly fixed to a wall using the WPB-1 wall bracket or the included steel yoke. These models are also compatible with PowerDrive Series 100 or Omni mount Series 60 installation brackets.

Building a system? How about this one for inspiration? GPL is engineered for any scale of system. Live or install, there is a GPL solution. The system in the diagram uses our Wharfedale Pro DP series amplifiers with downloadable presets for DP-N and DP-F models.

• Active or Passive: Passive
• System Type: Full-Range
• Configuration: Coaxial 2-way
• System Continuous Power: 200 W
• System Continuous Power: 400 W
• System Peak Power: 800 W
• Max SPL @ 1m: 125 dB
• Frequency Response (+/-3 dB) 80 Hz – 20 KHz
• Frequency Range (-10 dB): 68 Hz – 25 KHz
• Bi-amp Mode Switch: No
• Bluetooth: No
• IP Certification: None
• Driver Brand: Beyma
• LF Driver Size: 5"
• LF Voice Coil Size: 1.5"
• LF Rated Impedance: 8 Ω
• LF Power (RE:AES2-2012): 150 W
• HF Driver Type: Compression Drive
• HF Voice Coil Size: 1.5"
• HF Diaphragm Material: PM4
• HF Exit Size: 1"
• HF Power (RE:AES2-2012): 25 W
• HF Nominal Coverage (H x V): 70° conical
• Preset Library: Yes

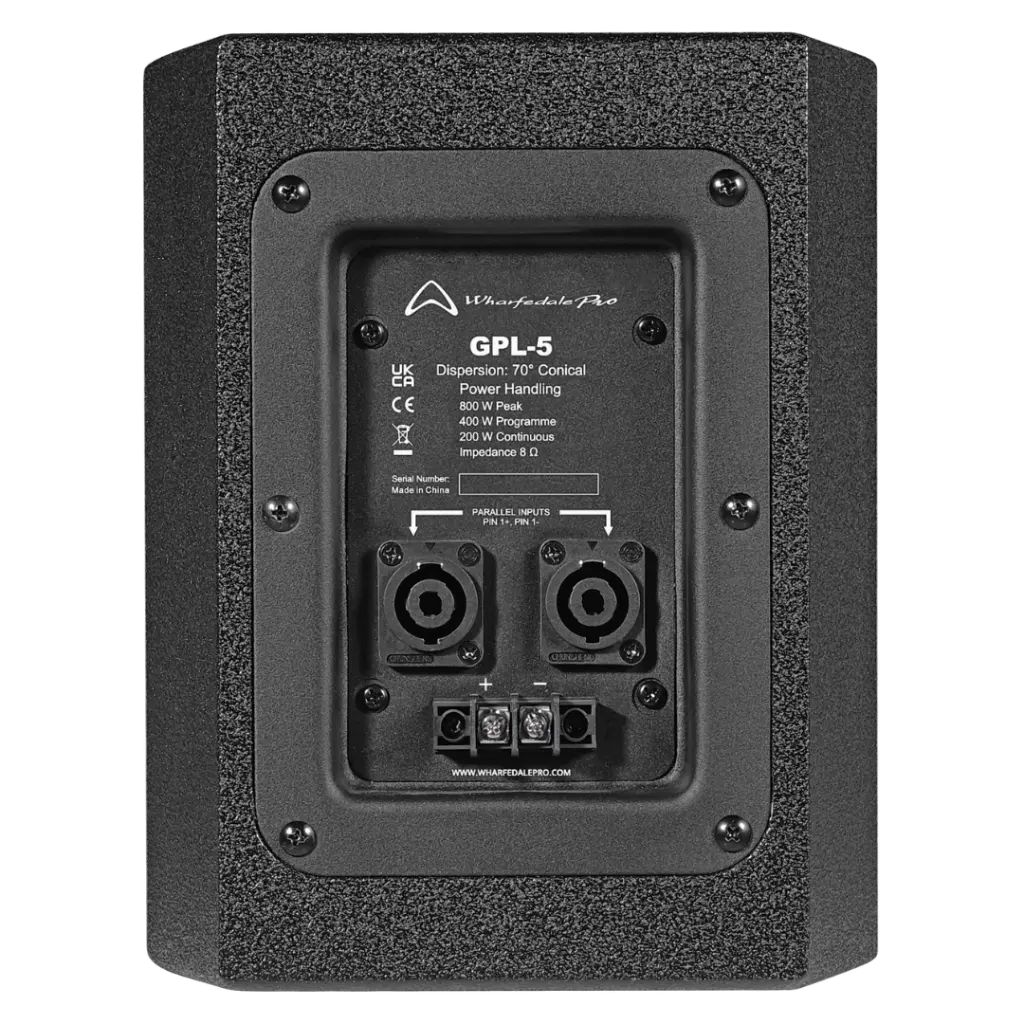

• Input Connector: 2 x 4 Pole Speaker Connector
• Waveguide Type: Spherical
• Enclosure Material: Birch Plywood
• Grille Material and Finish: Steel Black or White
• Finish: Black or White Tough-Tone paint
• Deployment: Flying, Wall Mount
• Pole Mount: None
• Brackets Included : Yes
• Rigging: Yes
• M8: 4
• M10: 2
• Sensitivity 2.83v / 1m: 96 dB
• System Rated Impedance: 8 Ω
• Crossover Frequency: 2.5 kHz
• Recommended HPF = BW 18 dB/OCT.: 68 Hz
• Transformer (T): No
• Included Accessory: Quick Start Guide, Flying Yoke

• Height 275mm / 10.82″
• Width Front 250mm / 9.84″
• Width Rear250mm / 9.84″
• Depth 265mm /10.43″

• Net Weight: 5.12 Kg / 11.29 lbs
• Gross Weight: 5.70 Kg / 12.57 lbs
