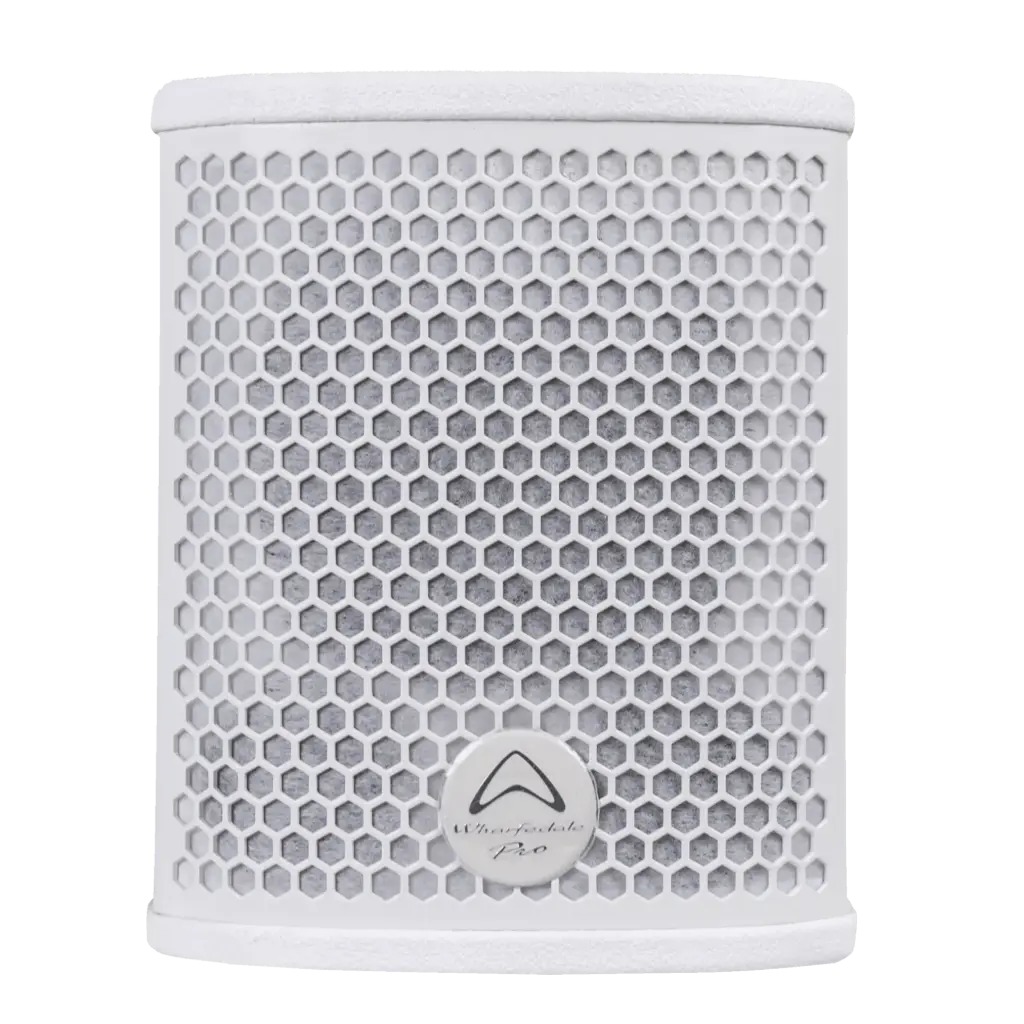

Wharfedale Pro GPL-5 Passive Full Range Speaker 5-Inches

The GPL-5 is a compact full-range loudspeaker from our GPL Series, designed for professional installations where clarity, control, and coverage consistency are key.

At its heart lies a Beyma coaxial driver, delivering phase-coherent audio and natural vocal reproduction with precise 70° conical dispersion. This custom design provides a more focused and uniform sound field than conventional point-source systems, making GPL-5 ideal for theatres, bars, nightclubs, and live venues.

GPL-5 can be quickly fixed to a wall using optional wall brackets or the included steel yoke, allowing for flexible mounting and clean installation. Constructed from birch plywood and finished in black or white, GPL-5 combines durability with a discreet aesthetic suited for architectural integration.

Handling 200 W continuous (800 W peak) power and producing up to 125 dB max SPL @ 1 m, GPL-5 delivers clean, full-range sound with impressive definition. FIR preset libraries and EASE .gll files are available for accurate system design and seamless integration.

• 70° conical coverage
• 400 W Programme
• 800 W Peak
• 1.5” LF Voice coil
• 125 dB Max SPL @ 1 m
• 70 V / 100 V ’T’ model also availabe

• Compact birch plywood construction
• Beyma Coaxial design drivers
• Multiple mounting options (Yoke brackets included)
• Conical or 80° x 40° (HQ models) dispersion options
• Band-pass or Bass Reflex subwoofers
• speakON compatible and barrier strip connections
• FIR Preset libraries and EASE .gll files available for download

• Beyma coaxial driver: Delivers phase-coherent audio and natural vocal reproduction with precise 70° conical dispersion.
• High power handling: Handles 200 W continuous (800 W peak) power and produces up to 125db max SPL @ 1m.
• Compact design: Constructed from birch plywood and finished in black or white, suitable for architectural integration.
• Versatile mounting: Can be quickly fixed to a wall using optional wall brackets or the included steel yoke.
• Premium construction: Uses premium Baltic plywood construction and Rhino Rock pain finish for durability and aesthetic appeal.
• High-quality components: Features a well-tuned combination of driv

• Active or Passive: Passive
• Configuration: Coaxial 2-way
• System Continuous Power: 200 W
• System Programme Power: 400 W
• System Peak Power: 800 W
• Max SPL @ 1m: 125 dB
• Freq Range (-10 dB): 68 Hz - 25 kHz
• Freq Response (+/-3 dB): 80 Hz - 20 kHz
• Bi-amp Mode Switch: No
• Bluetooth: No
• IP Certification: None
• Driver Brand: Beyma
• LF Driver Size: 5"
• LF Voice Coil Size: 1.5"
• LF Rated Impedance: 8 Ω
• LF Power (RE:AES2-2012): 150 W
• HF Driver Type: Compression Driver
• HF Voice Coil Size: 1.5"
• HF Diaphragm Material: PM4
• HF Exit Size: 1"
• HF Power (RE:AES2-2012): 25 W
• HF Nominal Coverage (H x V): 70° conical
• Preset Library: Yes
• Input Connector: 2 x 4 Pole Speaker Connector
• Waveguide Type: Spherical
• Enclosure Material: Birch Plywood
• Grille Material and Finish: Steel Black or White
• Finish: Black or White Tough-Tone paint
• Deployment: Flying, Wall Mount
• Pole Mount: None
• Brackets Included: Yes
• Rigging: Yes
• M8: 4
• M10: 2
• Sensitivity 2.83v / 1m: 96 dB
• System Rated Impedance: 8 Ω
• Crossover Frequency: 2.5 kHz
• Recommended HPF = BW 18 dB/OCT.: 68 Hz
• Transformer (T): No
• Included Accessories: Quick Start Guide, Flying Yoke
• ers and advanced design for balanced frequency response and strong output.

• Black  SKU# WD-GPL-5 BK
• White SKU# WD-GPL-5 WH
