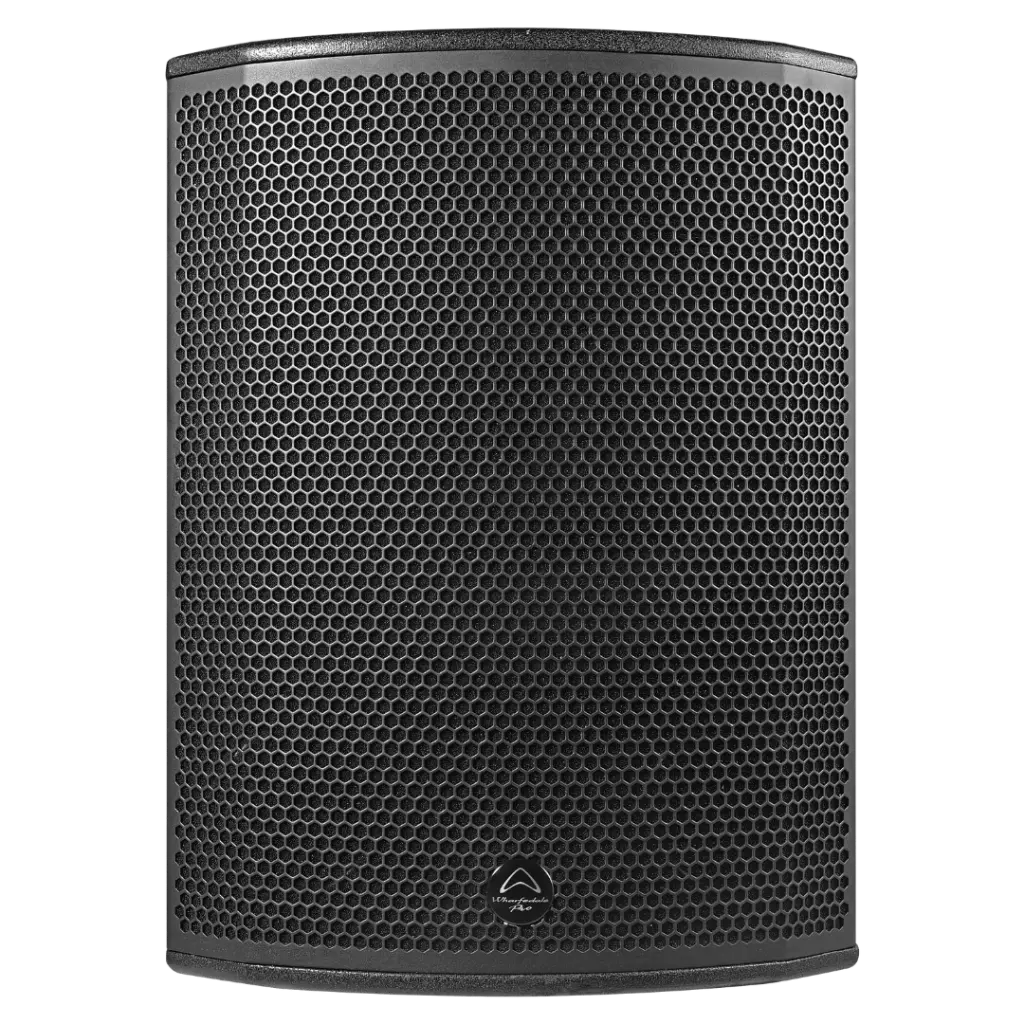

Wharfedale Pro GPL-15 HQ Passive Full Range Speaker 15-Inches

Equipped with a Beyma coaxial driver featuring a 4.0″ LF voice coil, GPL-15HQ offers exceptional detail and dynamic response. Its 80° x 40° rotatable constant directivity waveguide provides accurate, controlled dispersion, allowing precise HF targeting and reduced reflections in complex acoustic environments.

Built from birch plywood and available in black or white, GPL-15HQ combines premium build quality with flexible installation options. A steel yoke bracket is included for quick mounting, and GPL-15HQ is compatible with optional WPB wall brackets, Powerdrive Series 100, and Omnimount Series 60 ensures maximum versatility for permanent installations.

Handling 500 W continuous (2000 W peak) power and achieving 132 dB max SPL at 1 m, GPL-15HQ delivers refined, high-output sound with impressive consistency. FIR preset libraries and EASE .gll files are available for precise integration into professional audio systems.

• Active or Passive: Passive
• System Type: Full-Range
• Configuration: Coaxial 2-way
• System Continuous Power: 500 W
• System Programme Power: 1000 W
• System Peak Power: 2000 W
• Max SPL @ 1m: 132 dB
• Freq Range (-10 dB): 25 Hz - 25 kHz
• Freq Response (+/-3 dB): 42 Hz - 20 kHz
• Bi-amp Mode Switch: No
• Bluetooth: No
• IP Certification: None
• Driver Brand: Beyma
• LF Driver Size: 15"
• LF Voice Coil Size: 4"
• LF Rated Impedance: 8 Ω
• HF Driver Type: Compression Driver
• HF Voice Coil Size: 2.87"
• HF Diaphragm Material: Composite Titanium / Polyester
• HF Exit Size: 1.5"
• HF Power (RE:AES2-2012): 80 W
• HF Nominal Coverage (H x V): 80° x 40°
• Preset Library: Yes
• Input Connector: 2 x 4 Pole Speaker Connector
• Waveguide Type: Constant Directivity
• Enclosure Material: Birch Plywood
• Grille Material and Finish: Steel Black or White
• Finish: Black or White Tough-Tone paint
• Handles: 1
• Deployment: Flying, Wall Mount
• Pole Mount: None
• Brackets Included: Yes
• Rigging: Yes
• M8: 4
• M10: 4
• Sensitivity 2.83v / 1m: 99 dB
• System Rated Impedance: 8 Ω
• Crossover Frequency: 1.2 kHz
• Recommended HPF = BW 18 dB/OCT.: 25 Hz
• Transformer (T): No
• Included Accessory: Quick Start Guide, Flying Yoke
