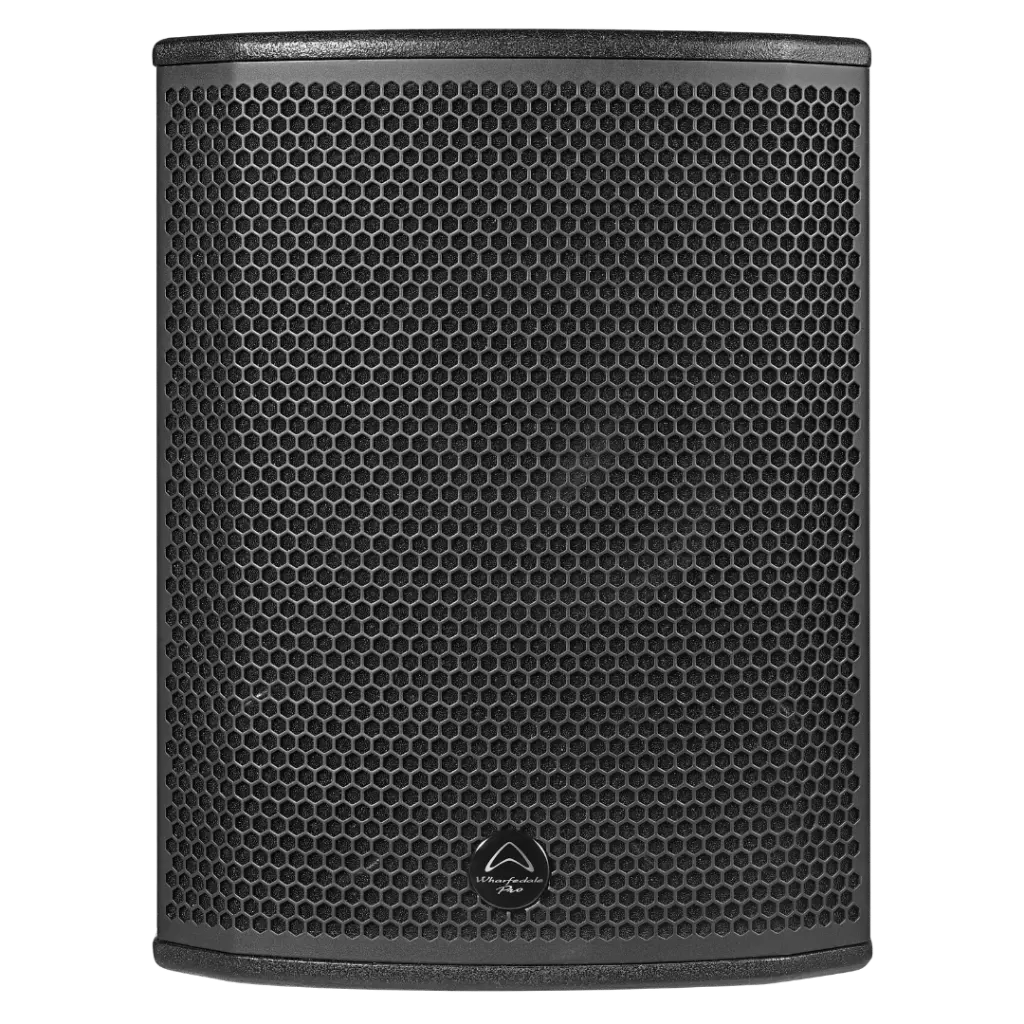

Wharfedale Pro GPL-12HQ Passive Full Range Speaker 12-Inches SKU# WD-GPL-12HQ

Featuring a Beyma coaxial driver with a 4.0″ LF voice coil, GPL-12HQ delivers controlled coverage through its 80° x 40° rotatable constant directivity waveguide, ensuring accurate dispersion and consistent tonal balance across the listening area. This design provides greater flexibility for installations requiring directional focus and minimal reflections.

Constructed from birch plywood and available in black or white, GPL-12HQ combines elegant aesthetics with rugged durability. It includes a steel yoke bracket for quick installation and is compatible with optional WPB wall brackets, Powerdrive Series 100, and Omnimount Series 60 wall mounting systems.

With 450 W continuous (1800 W peak) power handling and up to 131 dB max SPL at 1 m, GPL-12HQ delivers exceptional clarity and output. FIR preset libraries and EASE .gll files are available for precise system tuning and seamless integration into any fixed installation.

• Active or Passive: Passive
• System Type: Full-Range
• Configuration: Coaxial 2-way
• System Continuous: Power 450 W
• System Programme: Power 900 W
• System Peak Power: 1800 W
• Max SPL @ 1m: 131 dB
• Freq Range (-10 dB): 35 Hz - 25 kHz
• Freq Response (+/-3 dB): 55 Hz - 20 kHz
• Bi-amp Mode Switch: No
• Bluetooth: No
• IP Certification: None
• Driver Brand: Beyma
• LF Driver Size: 12"
• LF Voice Coil Size: 4"
• LF Rated Impedance: 8 Ω
• HF Driver Type: Compression Driver
• HF Voice Coil Size: 2.87"
• HF Diaphragm Material: Composite Titanium / Polyester
• HF Exit Size: 1.5"
• HF Power (RE:AES2-2012): 80 W
• HF Nominal Coverage (H x V): 80° x 40°
• Preset Library: Yes
• Input Connector: 2 x 4 Pole Speaker Connector
• Waveguide Type: Constant Directivity
• Enclosure Material: Birch Plywood
• Grille Material and Finish: Steel Black or White
• Finish: Black or White Tough-Tone paint
• Handles: 1
• Deployment: Flying, Wall Mount
• Pole Mount: None
• Brackets Included: Yes
• Rigging: Yes
• M8: 4
• M10: 4
• Sensitivity 2.83v / 1m: 98 dB
• System Rated Impedance: 8 Ω
• Crossover Frequency: 1.2 kHz
• Recommended HPF = BW 18 dB/OCT.: 35 Hz
• Transformer (T): No
• Included Accessory: Quick Start Guide, Flying Yoke
