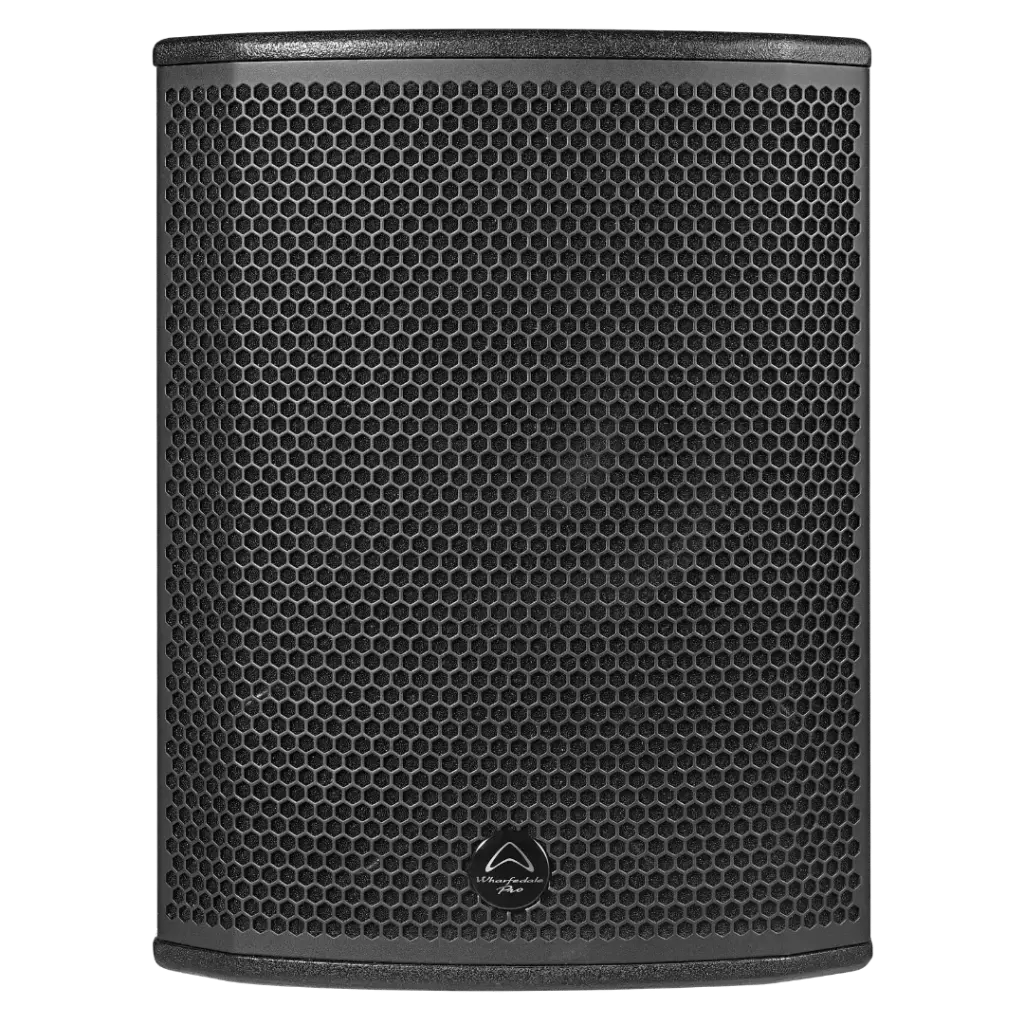

Wharfedale Pro GPL-12 Passive Full Range Speaker 12-Inches

At its core is a Beyma coaxial driver featuring a 4.0″ LF voice coil, delivering smooth, phase-coherent sound and consistent tonal balance across its 60° conical dispersion. The bespoke Wharfedale Pro waveguide directs high frequencies with accuracy, minimising reflections and ensuring focused, articulate output in any environment.

GPL-12 can be quickly fixed to a wall using optional wall brackets or the included steel yoke, allowing flexible mounting options for permanent installations. Built from birch plywood and finished in either black or white, GPL-12 combines a discreet, installation-friendly design with rugged durability.

Handling 450 W continuous (1800 W peak) power and achieving up to 131 dB max SPL @ 1 m, GPL-12 delivers a natural yet commanding sound. FIR preset libraries and EASE .gll files are available for precise tuning and seamless system integration.

• Active or Passive: Passive
• Configuration: Coaxial 2-way
• System Continuous Power: 450 W
• System Programme Power: 900 W
• System Peak Power: 1800 W
• Max SPL @ 1m: 131 dB
• Freq Range (-10 dB): 35 Hz - 25 kHz
• Freq Response (+/-3 dB): 55 Hz - 20 kHz
• Bi-amp Mode Switch: No
• Bluetooth: No
• IP Certification: None
• Driver Brand: Beyma
• LF Driver Size: 12"
• LF Voice Coil Size: 4"
• LF Rated Impedance: 8 Ω
• HF Driver Type: Compression Driver
• HF Voice Coil Size: 2.87"
• HF Diaphragm Material: Composite Titanium / Polyester
• HF Exit Size: 1.5"
• HF Power (RE:AES2-2012): 80 W
• HF Nominal Coverage (H x V): 60° conical
• Preset Library: Yes
• Input Connector: 2 x 4 Pole Speaker Connector
• Waveguide Type: Spherical
• Enclosure Material: Birch Plywood
• Grille Material and Finish: Steel Black or White
• Finish: Black or White Tough-Tone paint
• Handles: 1
• Deployment: Flying, Wall Mount
• Pole Mount: None
• Brackets Included: Yes
• Rigging: Yes
• M8: 4
• M10: 4
• Sensitivity 2.83v / 1m: 98 dB
• System Rated Impedance: 8 Ω
• Crossover Frequency: 1.2 kHz
• Recommended HPF = BW 18 dB/OCT.: 35 Hz
• Transformer (T): No
• Included Accessory: Quick Start Guide, Flying Yoke
