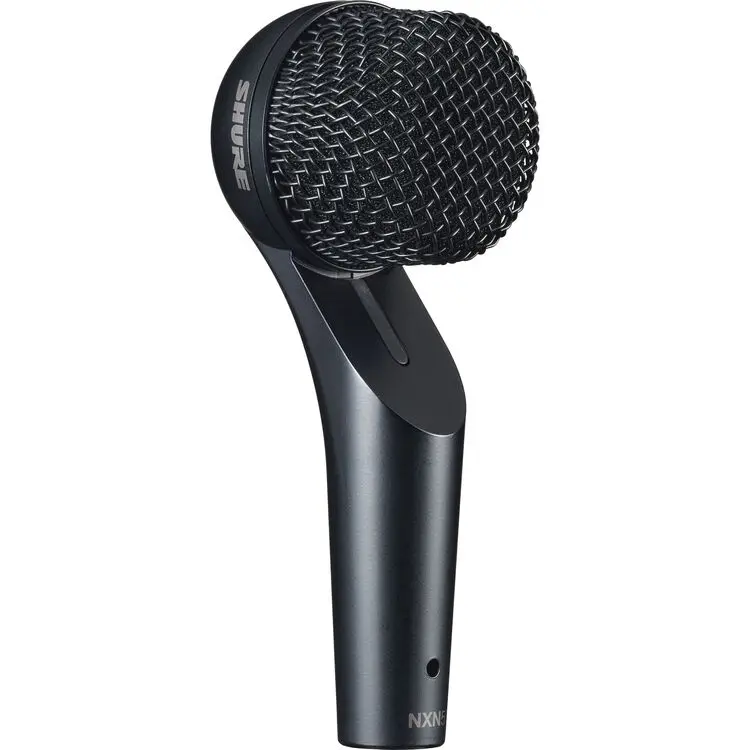

Shure NEXADYNE™ NXN5 Dynamic Supercardioid Instrument Microphone SKU# NXN5

Get the most out of your recorded guitar tone with the Nexadyne™ 5 from Shure, a supercardioid dynamic mic with Shure's innovative Revonic Dual-Transducer for polar uniformity, smooth character, and rejection of unwanted noise. Ideal for guitar amps and other instruments like horns, the Nexadyne 5 offers clear highs, flat mids, and full low end.

The Nexadyne™ 5 is designed to support hanging mic setups for amps as well as traditional mounting via a mic clip. Mechanical isolation further reduces noise during recordings. With a highly compact side-address cartridge and a discreet low-profile design, the Nexadyne 5 is easy to position optimally while remaining largely unnoticed during performances. The Nexadyne™ 5 includes an A25E mic clip, a zippered bag, and a brass 3/8" thread adapter.

Wiring both transducers out-of-phase cancels mechanical vibration. This removes self-noise as a factor that needs to be balanced as part of the acoustic signature of the microphone cartridge. As a result, Shure is free to precisely tune the acoustic network to have incredible polar pattern consistency across the frequency range, while precisely managing frequency response curves.

• For Guitar Amps and Horns
• Revonic Dual-Engine Transducer

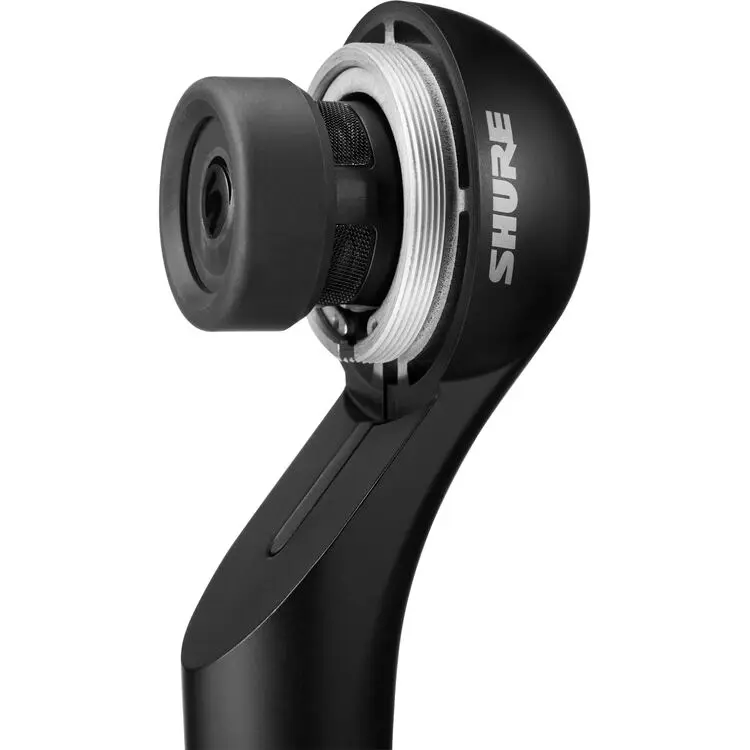

• Highly Compact Side-Address Cartidge
• Clear Highs, Flat Mids, Full Low End
• Supports Hanging or Mic Clip Mounting
• Highly Linear Supercardioid Pickup
• Mechanical Isolation Rejects Noise
• Discreet, Low-Profile Design
• Includes Mic Clip, Bag & Thread Adapter

• Type: Dynamic (moving coil) with secondary vibration-cancelling dynamic transducer
• Polar Pattern: Supercardioid
• Frequency Response: 50 Hz16 kHz
• Output Impedance @1 kH: 335 Ω
• Sensitivity (Open circuit voltage @1 kHz, typical): 61.0 dBV/Pa (0.9 mV/Pa), 1 Pa = 94 dB SPL
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Weight: 295 g (0.65 lbs.)
• Connector: Three-pin professional audio (XLR), male
• Housing: Die-cast aluminum with black paint

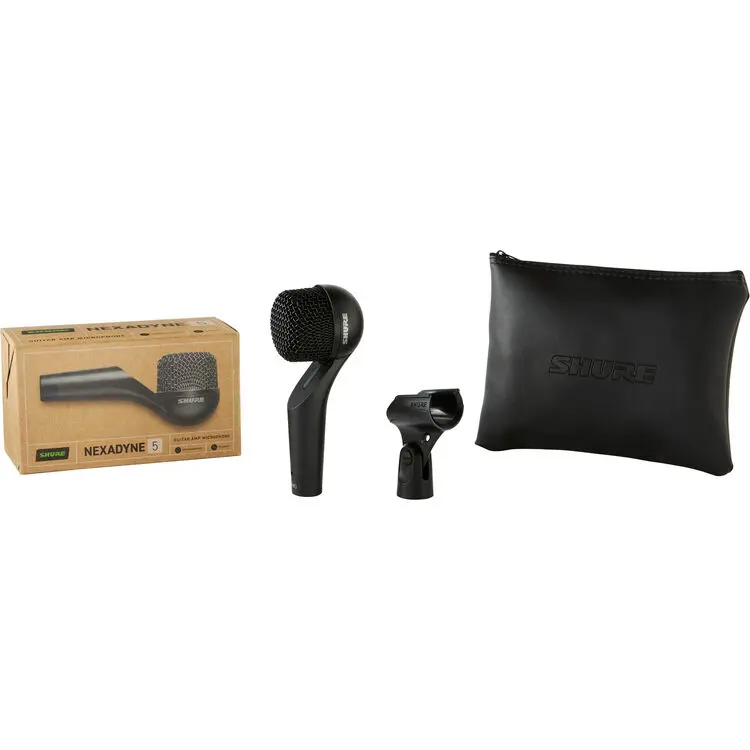

• Shure Nexadyne™ 5 Dynamic Supercardioid Instrument Microphone
• Shure A25E Stand Adapter
• Zippered Bag
• 3/8" Thread Adapter
