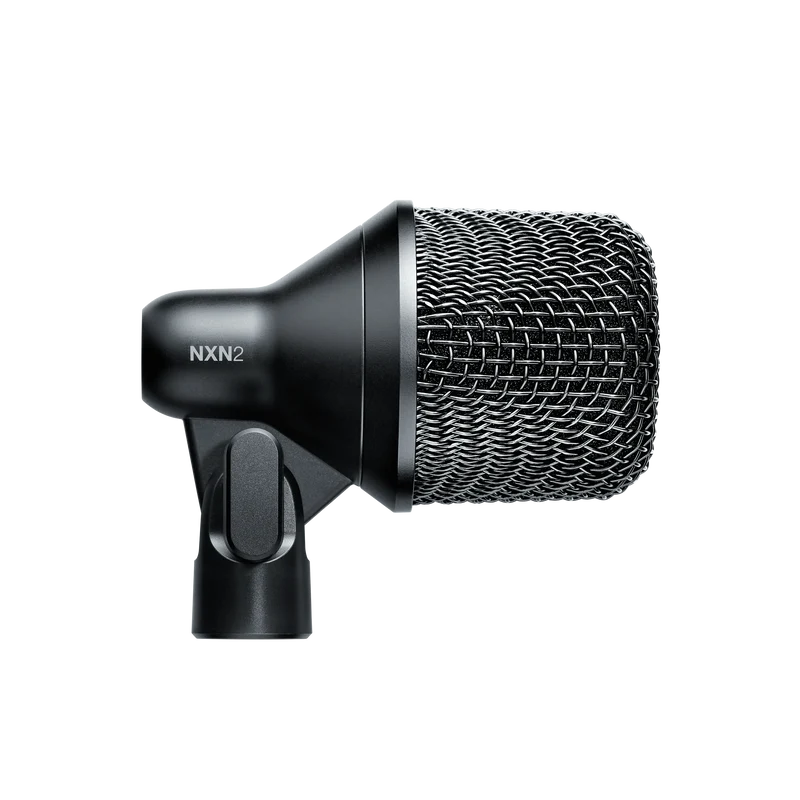

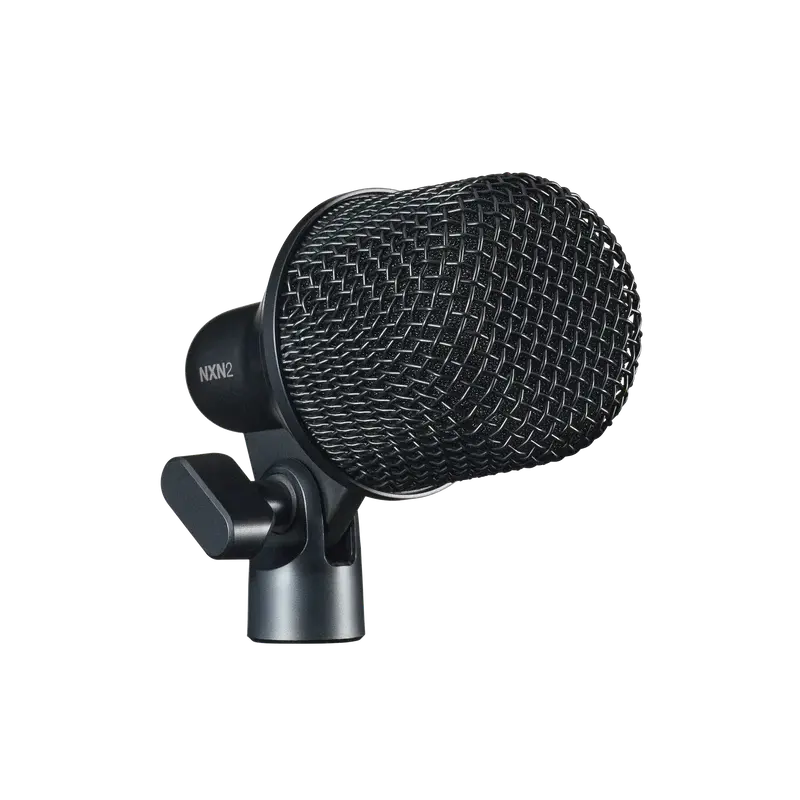

Shure NEXADYNE™ NXN2 Supercardioid Dynamic Kick Drum Microphone SKU# NXN2

Upgrade your kick drum setup with the Nexadyne™ 2 from Shure, a dynamic supercardioid mic with Shure's Revonic Dual-Engine Transducer for more consistent pickup and elimination of unwanted noise. Thanks to the heavier-than-average coils, the Nexadyne 2 offers extended low end with full mids and clearer treble attack.

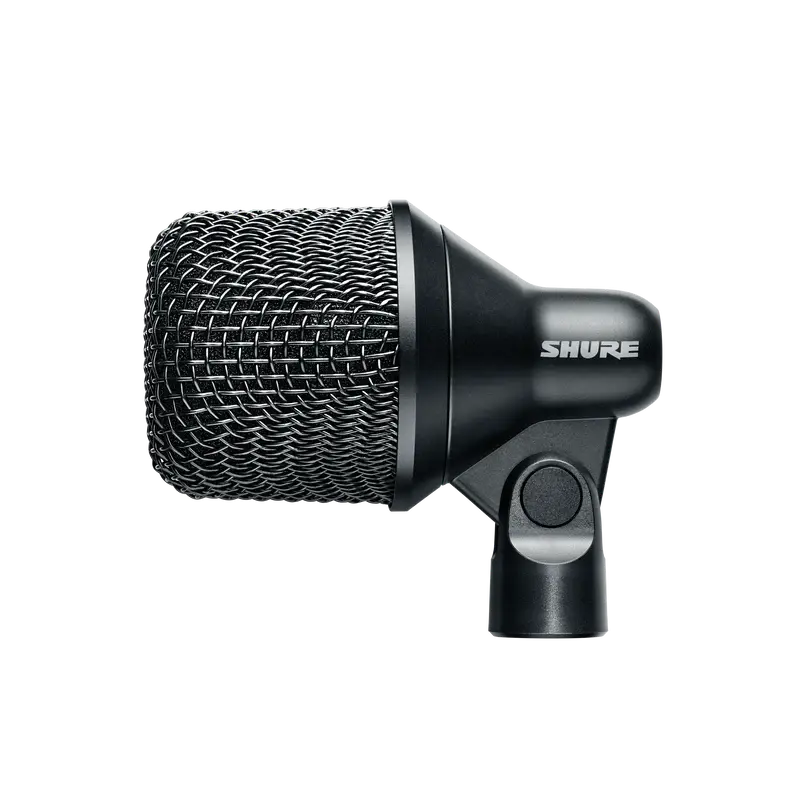

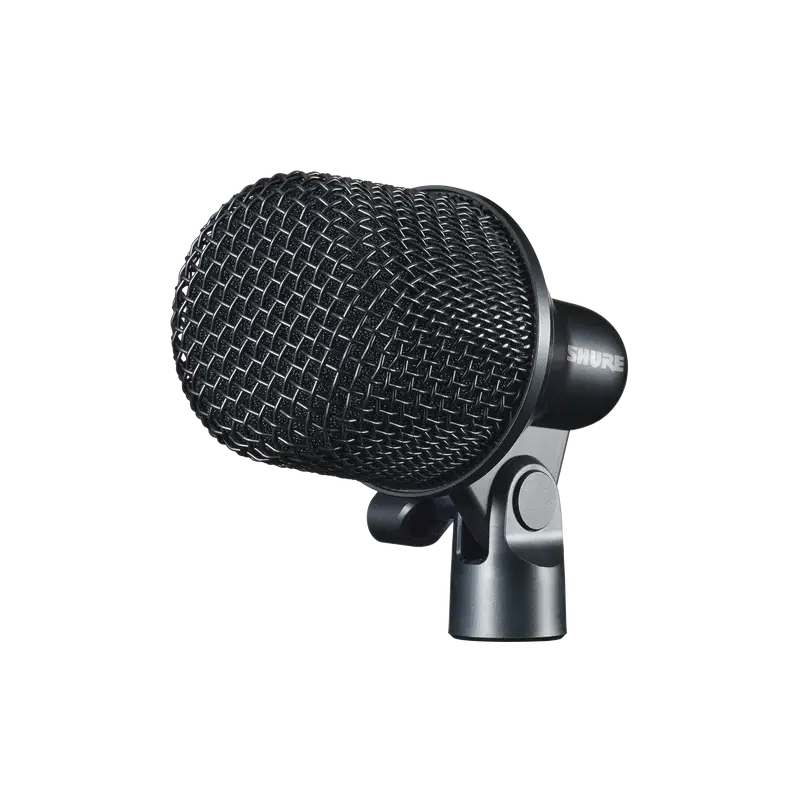

Thanks to the freedom provided by the unique dual-transducer design, the Nexadyne™ 2 features a contoured EQ, greatly reducing the amount of postprocessing needed for a killer kick drum sound. The compact cartridge design allows for a small footprint, making it easy to position the mic optimally, while the discreet black design allows for low-profile visibility. The microphone sports an integrated swivel joint, which is separated from the XLR output, ensuring secure placement without strain on cables. The humbucking nature of the Revonic capsule also helps to eliminate unwanted sounds like stage rumble, making the Nexadyne 2 an ideal choice for professional live performances. The Nexadyne™ 2 includes a zippered bag and a brass 3/8" thread adapter.

Wiring both transducers out-of-phase cancels mechanical vibration. This removes self-noise as a factor that needs to be balanced as part of the acoustic signature of the microphone cartridge. As a result, Shure is free to precisely tune the acoustic network to have incredible polar pattern consistency across the frequency range, while precisely managing frequency response curves.

• For Kick Drum and Bass Capture
• Contoured EQ for Kick Drum
• Revonic Dual-Engine Transducer

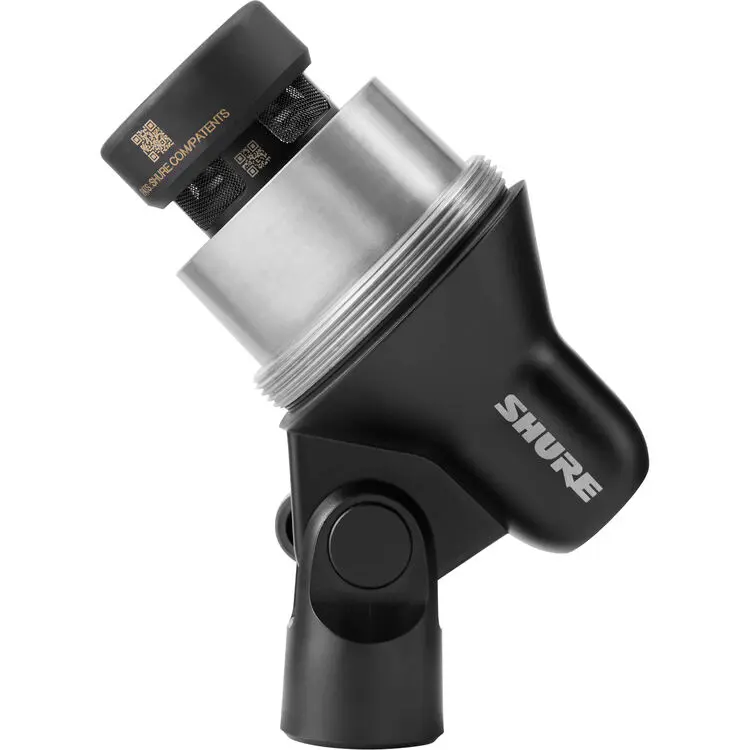

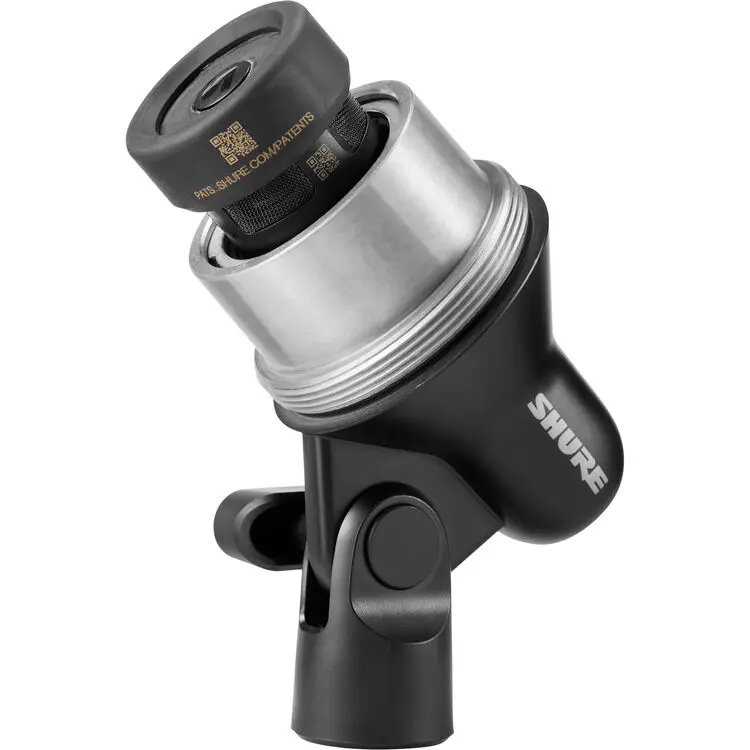

• Compact Footprint for Easy Positioning
• Heavy Moving Coil for Low-End Extension
• Supercardioid Pickup for Tight Capture

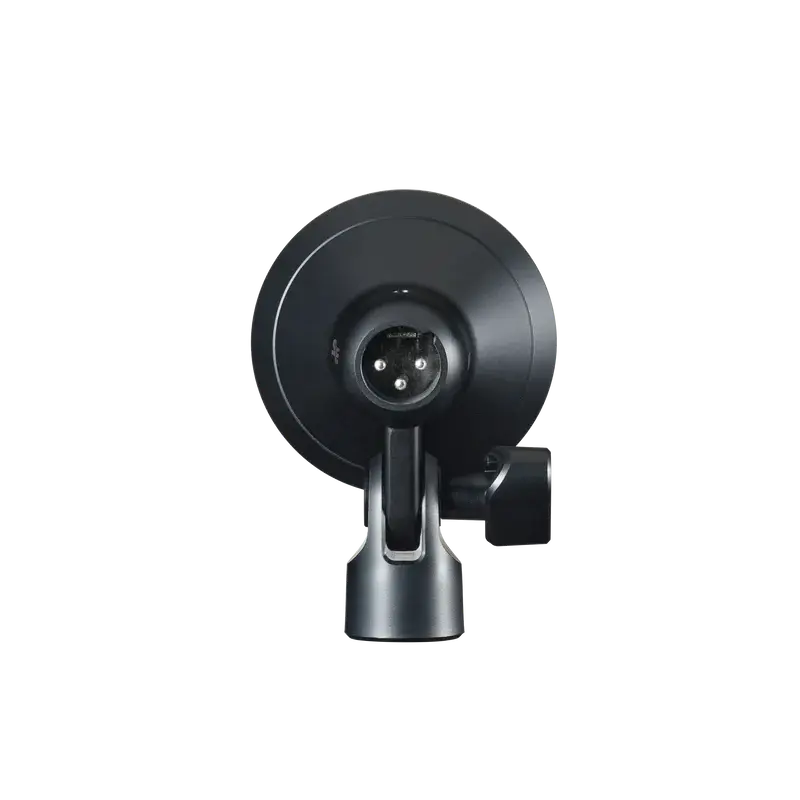

• Swivel Joint Separated from XLR Output
• Protects Against Stage Rumble
• Includes Zippered Bag and Thread Adapter
• Acoustic signal processing of the dual engine design enables exceptional signal clarity, reducing the need for typical corrective EQ
• Industry-leading Shure reliability standards provides innovation with confidence
• Dent-resistant hardened grille
• XLR connection with black finish

• Type: Dynamic (moving coil) with secondary vibration-cancelling dynamic transducer
• Polar Pattern: Supercardioid
• Frequency Response: 20 Hz-16 kHz
• Output Impedance @1 kH: 225 Ω
• Sensitivity Open circuit voltage @1 kHz, typical: -66.0 dBV/Pa (0.5 mV/Pa), 1 Pa = 94 dB SPL
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Weight: 535 g (1.18 lbs)
• Connector: Three-pin professional audio (XLR), male
• Housing: Die-cast zinc with black paint

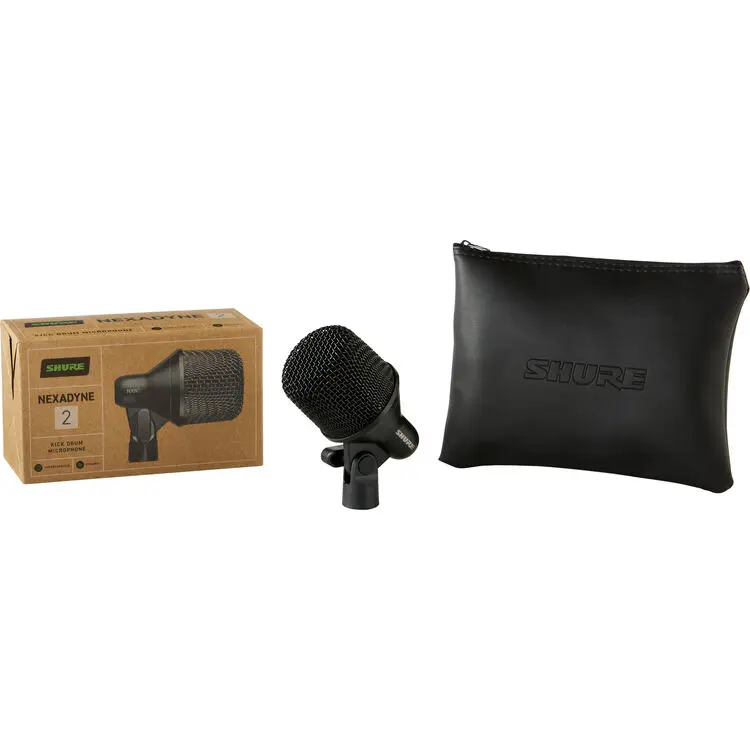

• Shure Nexadyne™ 2 Dynamic Supercardioid Kick Drum Microphone
• Zippered Bag
• 3/8" Thread Adapter
