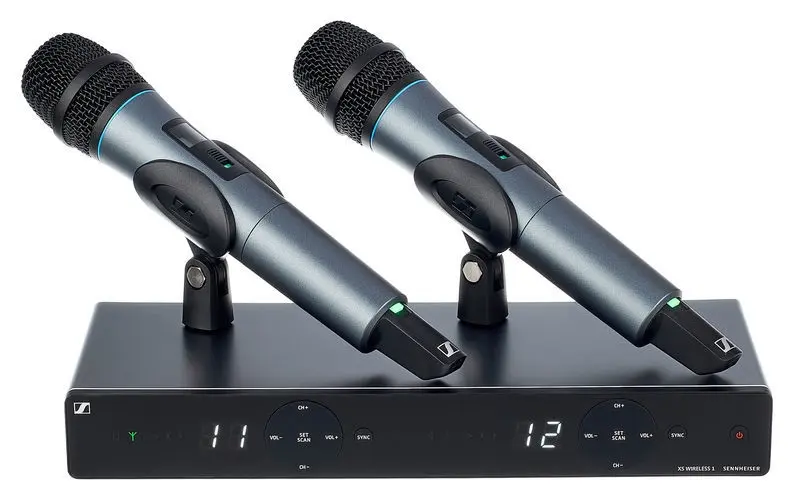

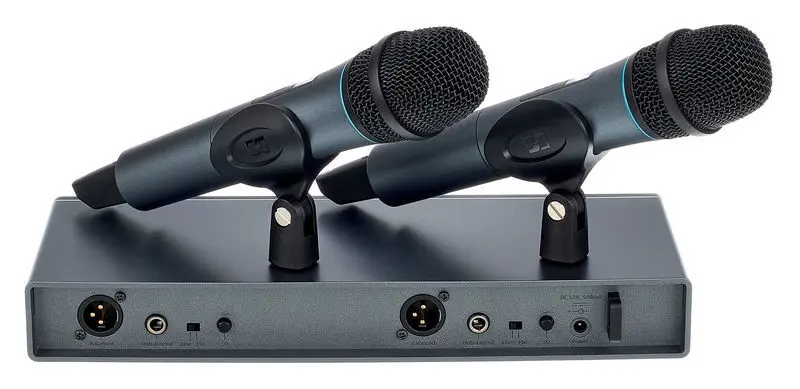

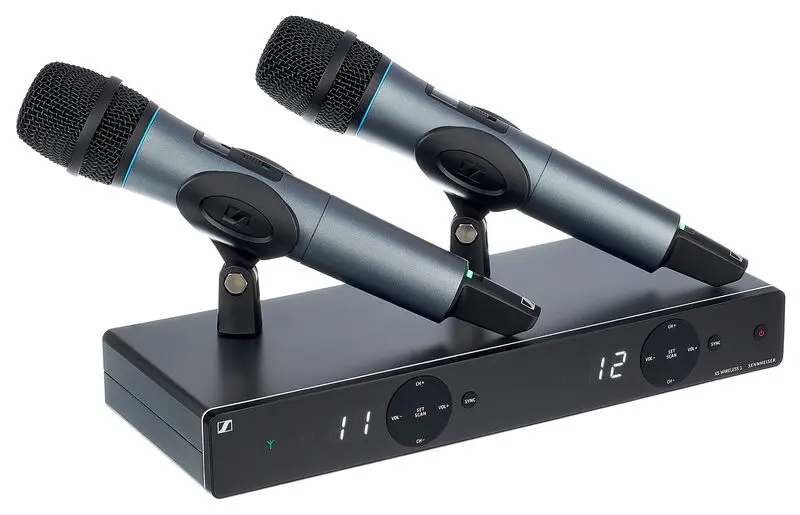

Sennheiser XSW 1-825 DUAL-A Wireless Dual Handheld Microphone System 548-572 MHz SKU# 508263
Sennheiser XSW 1-825 DUAL-A is a 2-channel wireless system for singers and presenters.
Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.
The Sennheiser XSW 1-825 Dual bundles great sound and ease of use into a sleek handheld wireless system.
Features
- Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
- Antenna-switching 2-channel diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
Technical Data:
System
- Frequency range A: 548-572 MHz
- Dimensions: Ø 48 x L 180 mm
- Connector: XLR-3
- Frequency response: 55 - 16,000 Hz
- THD, total harmonic distortion = 0.9%
- Transducer principle: dynamic
- Weight: 330 g (0.73 lbs)
- Pick-up pattern cardioid
- Nominal impedance: 300 O (at 1 kHz)
- Min. terminating impedance: 1 kO
- Storage temperature: -20°C to +70°C
- Operating temperature: 0°C to +40°C
- Signal-to-noise ratio: = 103 dBA
- Switching bandwidth: Up to 24 MHz
- Modulation: Wideband FM
- Frequency: 80 factory presets (8 banks of 10 channels each)
- Sensitivity: 1.8 mV/Pa (free field, no load at 1 kHz)
- Synchronization: Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)
- Temperature Range: 0 °C ... +40 °C (+32 °F ... +104 °F)
- Frequency range: 548-572 MHz
Frequency response: 766-790 MHz, 794-804 MHz, 821-832 / 863-865 MHz, 925-937.5 MHz

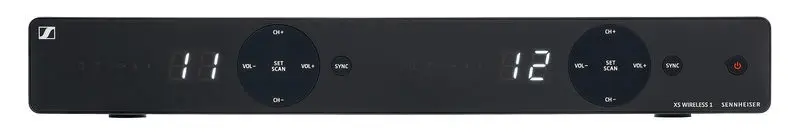

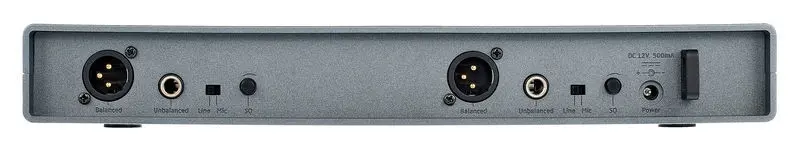

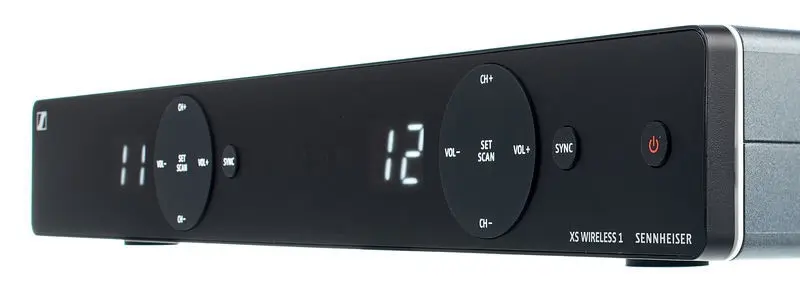

EM-XSW 1 DUAL
- Dimensions: approx. 320 x 126.5 x 42 mm
- Weight: approx. 620 g
- Power supply: 12 V DC nom. / 300 mA
- Output voltage (at peak deviation, 1 kHz AF): 1/4" (6.3 mm) socket (unbalanced): +6 dBu
- Housing: Rugged ABS housing
- Sensitivity: < 3 µV at 52 dB(A) rms S/N (at peak deviation)
- Squelch: Adjustable from 3 dBµV to 28 dBµV
- AF frequency response: 50 to 16,000 Hz (-3 dB)
- Audio adjustment range 45 dB, adjustable in 5 dB steps
- Line / Mic level: 20 dB, switchable
- Receiver Principle: Double superheterodyne
- Diversity principle: Antenna switching diversity via internal antennas

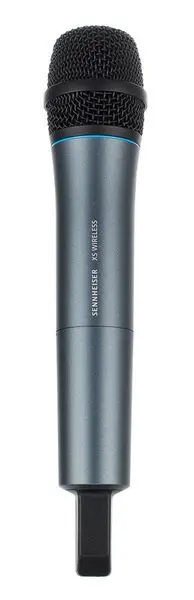

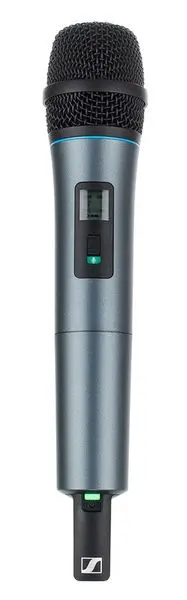

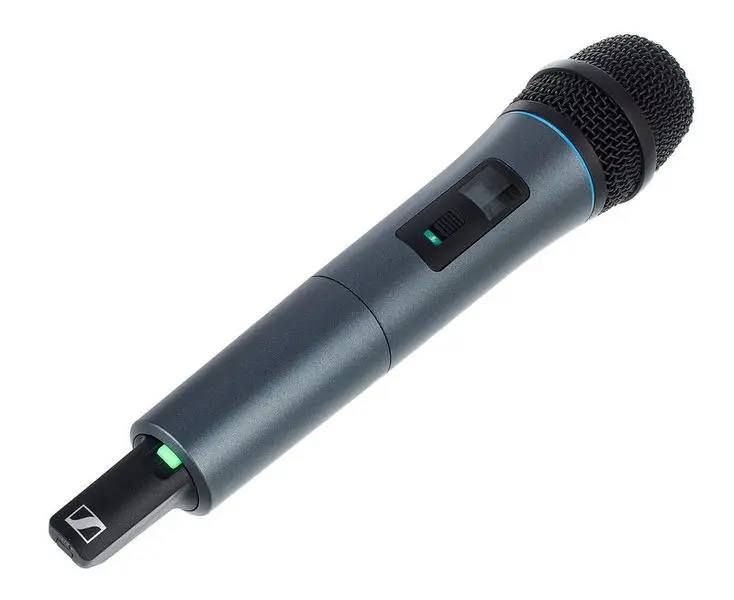

SKM 825-XSW / SKM 835-XSW
- Dimensions: Approx. 260 x 50 mm
- Microphone: Dynamic
- Weight: Approx. 245 g
- Pick-up pattern: Cardioid
- RF output power: 10 mW
- Operating time: Approx. 10 hrs
- Power supply: 2 AA size batteries, 1.5 V
- Housing: Rugged ABS housing
- Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
- Input sensitivity: 1.5 mV / Pa
- AF frequency response: 80-16,000 Hz
- Country of Origin: Taiwan
System Includes

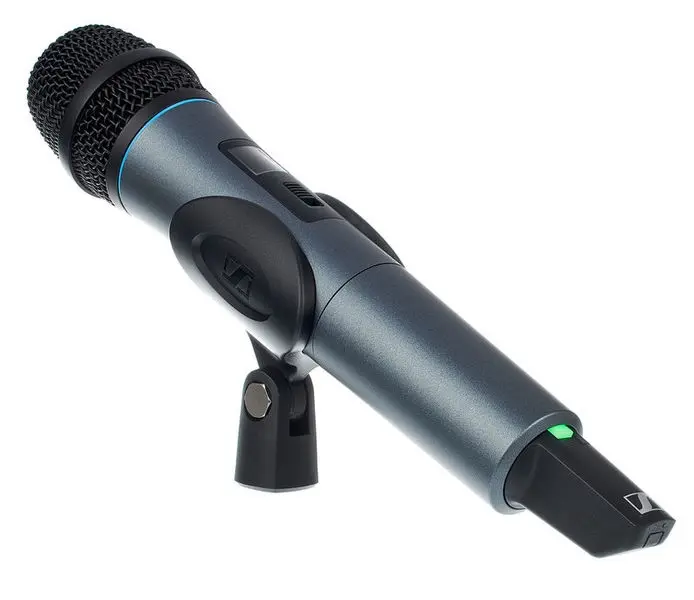

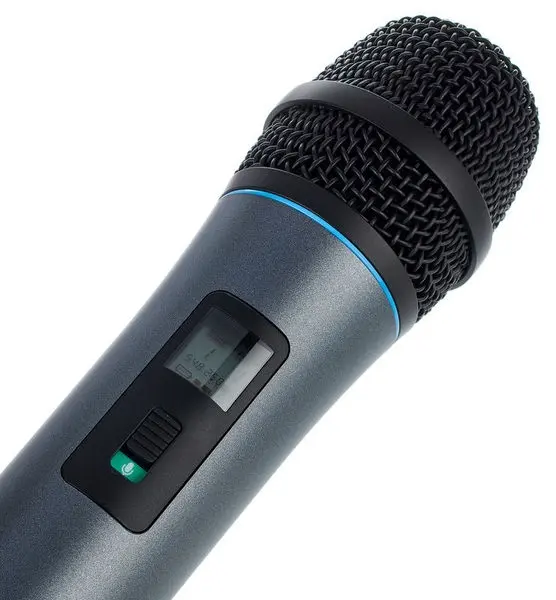

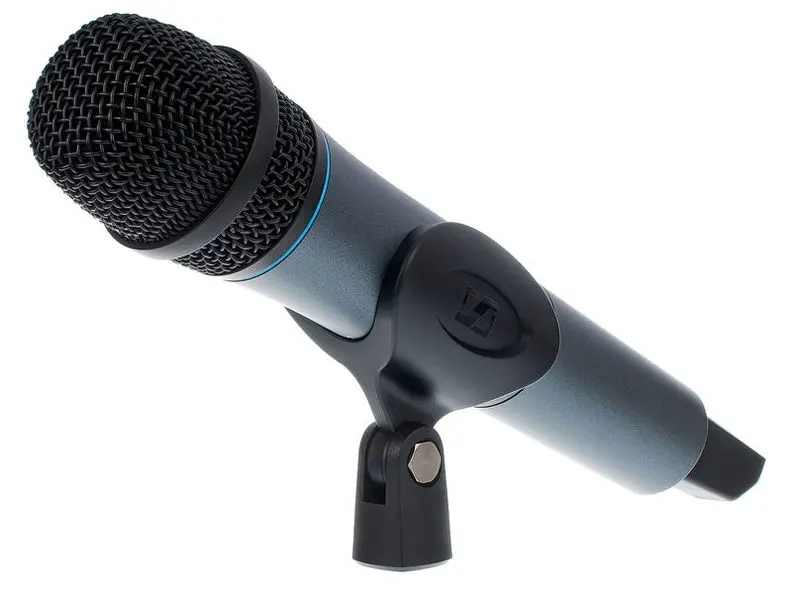

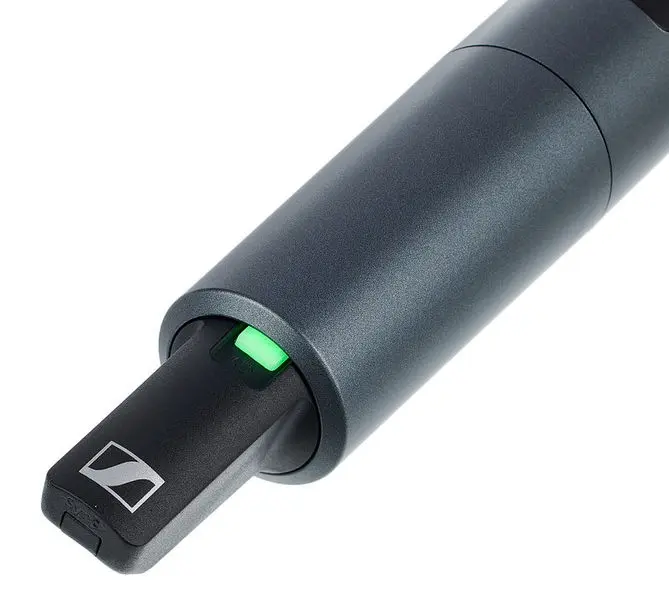

- (2) SKM 825-XSW handheld transmitters with mute switch and e825 cardioid dynamic capsules
- (1) EM-XSW 1 DUAL stationary receiver with internal antennas
- (2) MZQ 1 microphone clips
- (1) NT 12-5 CW power supply
- (2) pairs AA batteries
- (1) Quick Start Guide
Limited 2Â Year Manufacturer Warranty
