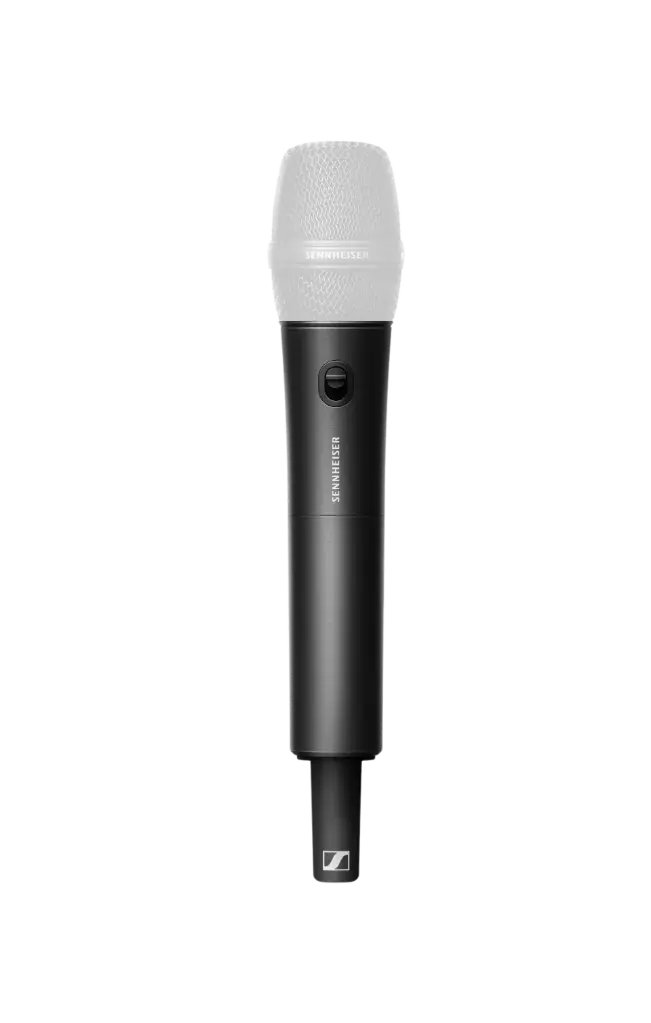

Sennheiser EW-D SKM-S (Q1-6) Handheld Transmitter Q1-6: 470 to 526 MHz) SKU# 508790

The Sennheiser EW-D SKM-S is a digital handheld wireless transmitter compatible with EW-D wireless receivers. It features an interchangeable microphone capsule design and is offered without a capsule included, so you can choose the one that best fits your application. Lightweight and comfortable for performers and presenters to hold, the transmitter features a rugged, all-metal housing well suited for daily use on stage.

The EW-D SKM-S is equipped with a mute button that can be locked out and overridden from the receiver or a mobile device during a performance. With a remarkable 134 dB dynamic range on its input, it can handle a wide variety of sound sources, including loud vocalists and performers, all without requiring any gain adjustment.

The unit quickly pairs with the receiver via Bluetooth at a distance up to 120', at the press of a button. What's more, the EW-D SKM-S utilizes an equidistant tuning grid that equally spaces 2240 frequencies across its wide 56 MHz bandwidth to prevent disruptive intermodulation issues that occur when multiple transmitters operate in confined spaces.

EW-D SKM-S is configured and controlled remotely via Bluetooth from either the receiver or the Smart Assist App installed on your iOS/Android phone/tablet—within a 120' range.

The transmitter provides up to 8 hours of operation on two AA batteries or 12 hours with a BA 70 lithium-ion rechargeable battery pack (available separately). The L70 USB dual-charging station (available separately) is required for the BA 70 batteries.

Note: The EW-D SKM-S is NOT backward-compatible with previous evolution analog systems.

• The EW-D SKM's interchangeable capsule design allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to narrow supercardioid—capsules include the MMD 845, MME 865, MMD 935, MMD 945, MMD 42, MM 435, ME 9004, MD 5235, ME 5004, and Neumann KK204 to name a few.

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

• 1 x Sennheiser EW-D SKM-S Digital Wireless Handheld Transmitter (capsule sold separately)
• 1 x Sennheiser MZQ 1 Microphone Clip
• 2 x AA Batteries
• 1 x Quick guide
• 1 x Safety guide
