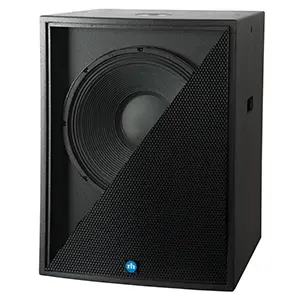

Renkus-Heinz CX118S Series Direct Radiating 18 in. Subwoofer SKU# CX118S
The CX118S subwoofers were developed as companion pieces to full range C Series loudspeakers. They provide the high impact sub bass energy needed in many venues.
Sound that makes performances and audiences truly come alive doesn't come easy. But C Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.
CX118S subwoofers were developed as companion pieces to full range C series loudspeakers. They provide the high impact sub bass energy needed in many venues.
Features
- Powerful 18-inch Subwoofers: Outstanding 35 to 100Hz, 137dB peak SPL sub-bass performance
- High Performance, High Power Woofers: With 4-inch voice coils, rigid cast-alloy frames and long throw magnetic structures easily handle 900W of program power
- Built-In Lo-Pass Filter: Eliminates the need for an external electronic crossover
- Applications:
- Virtually any application where high-output, low frequency content is required
- Available in black or white paint finish
Permanent Installations
- High quality music/speech systems and surround systems for houses of worship, schools, performing art centers, night clubs, etc.
Portable Applications
- Live music reinforcement, DJ systems, houses of worship, schools, etc.
Specification
- Speaker Diameter (Driver): 18 in
- Maximum Frequency Response (Bandwidth): 100 Hz
- Maximum Frequency Response (Bandwidth): 0.10 kHz
- Minimum Frequency Response (Bandwidth): 35 Hz
- Minimum Frequency Response (Bandwidth): 0.04 kHz
- Impedance: 8 ohm
- Maximum SPL (Sound Pressure Level): 137 dB
- Sensitivity: 98 dB
- Depth: 23.50 in
- Height: 29.50 in
- Width: 22.25 in
- Product Weight: 90.60 lbs
- Enclosure: 13-ply hardwood, perforated metal grille
- Power: 900W Pgm at 8 Ohms
- Connectors: Screw terminals and looping 4-pin Neutrik SpeakOn style connectors
- Hardware: 6 M10 Points
- Power Handling: 450 Watt
