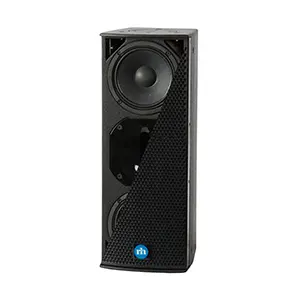

Renkus-Heinz CX Series CX62 2 x 6" LF + 1" HF Two-way, Complex Conic Loudspeaker SKU# CX62

The CX62 C Series loudspeakers employ advanced technology and application-driven engineering to bring live sound closer to the ultimate reference point reality. Cutting-edge driver technology and unique innovations like our Complex Conic horns deliver natural sounding music and intelligible speech.

Versatile enclosure designs, combined with a wide range of mounting options and associated hardware, provide unrestricted flexibility for both portable and installed applications. Wherever audiences and operators demand superior performance and ease of use, C Series loudspeakers are the choice for unequalled value.

The  Renkus-Heinz CX62 features dual 6.5-inch Heavy-Duty LF drivers with carbon fiber cones and a 1-inch Extended Range Titanium HF Driver.

Features

• Miniaturized design: outstanding, full-range 70Hz to 20kHz performance in an extremely compact, space-saving design
• Exclusive complex conic design: complex conic horn provides superior pattern control with low distortion
• Wide-angle 150° by 60° coverage: complex conic horn provides smooth 150° by 60° coverage
• 1-inch Extended range titanium HF driver: provides smooth, low distortion high frequency performance to 20kHz and beyond
• Heavy-Duty 6.5-inch woofers: with carbon fiber cone easily handles 400Watts of program power
• Built-in crossover: eliminates need for a separate electronic crossover and bi-amplification
• Available in black or white paint finish

Applications

• Virtually any application where size is a critical issue and outstanding sonic performance is required
• Ideal for many side and front fill applications; mounts inconspicuously in walls or ceilings, under and over balconies, etc.
• Foreground music systems in shopping malls, retail stores, offices, etc

Specification

• Horizontal Symmetry - Yes
•  Vertical Symmetry - Yes
•  Spec Sheet available - Yes
•  Speaker Diameter (Driver): 6.50 in
•  Maximum Frequency Response (Bandwidth): 18 kHz
•  Maximum Frequency Response (Bandwidth): 18000 Hz
•  Minimum Frequency Response (Bandwidth): 100 Hz
•  Minimum Frequency Response (Bandwidth): 0.10 kHz
•  Impedance: 8 ohm
•  Maximum SPL (Sound Pressure Level): 132 dB
•  Sensitivity: 97 dB
•  Depth: 9.38 in
•  Height: 21 in
•  Width: 8 in
•  Product Weight: 18.60 lbs
•  Construction: 15mm Lite Ply, Perforated Metal Grille
•  Coverage Horizontal: 150 degrees
•  Coverage Vertical: 60 degrees
•  HF Driver: 1" SSD102-8 Titanium driver, 15W RMS, 30W Pgm
•  LF Driver: Dual 6.5"model SSL6.5-6 woofers, 1" VCs, treated fiber cones, 100W RMS, 200W Pgm (400W total)
•  Crossover Point: 2.8kHz
•  Power Rating: 400W Pgm at 8 Ohms
•  Hardware: 12-point universal mounting hardware (metric M6 threads) U-bracket attachment points
•  Power Handling: 200 Watt
