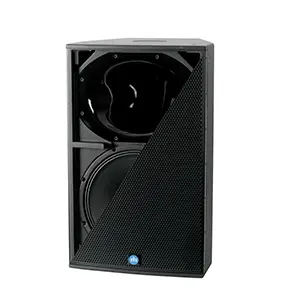

Renkus-Heinz CX Series CX151 15" LF + 1" HF Two-way, Complex Conic Loudspeaker SKU# CX151
Unleash performance that makes the audience truly come alive with the Renkus-Heinz CX151 loudspeaker. This durable speaker contains the unique Complex Conic Horn technology that works with the spherical expansion of the acoustic pressure wave instead of trying to force it through a rectangular funnel like conventional designs. This technology gives this loudspeaker a natural, transparent sound. The rugged construction and versatile enclosure design helps solve sound reinforcement challenges easily and quickly. The CX151 is ideal for use in any application where size is a critical issue and outstanding sonic performance is required.
Features
- Compact design
- Outstanding, full-range ± 3 dB, 55 Hz to 20 kHz performance
- Exclusive 60° x 40° Complex Conic design
- Provides constant beam width / directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces
- 2" Extended Range Titanium HF Driver
- Provides smooth, low distortion high frequency performance to 20 kHz and beyond
- Heavy-duty 15" woofer
- Easily handles 700W of program power
- Built-in crossover
Applications
Permanent Installation
- Houses of worship
- Schools
- Performing art centers
- Night clubs
- Stadiums and arenas
Portable Applications
- Rental A/V
- DJ systems
- Churches
- Schoolsetc
Specification
- Sensitivity: 98 dB (1W/1m)
- Max SPL: 135 dB peak
- Dispersion: 60° x 40°
- Freq. Response: ± 3 dB, 55 Hz to 20 kHz
- HF Driver: 2" SSD203-8F driver, 40W RMS, 80W Pgm
- LF Driver: 350W RMS @ 8 Ω, 700W Pgm
- Enclosure: Poplar Ply, perforated metal grille
- Finish: Black or White Paint
- Power Rating:
- 350W AES @ 8 Ω
- 700W Pgm @ 8 Ω
- Connectors: CX151 screw terminals and looping Neutrik 4-pin speakON style connectors
- Hardware: U Bracket, 12 M10 Points
- Dimensions (H x W x D): 28.375" x 17.5" x 17" (72.073 x 44.45 x 43.18 cm)
- Net Weight: 57 lbs. (25.85 kg)
