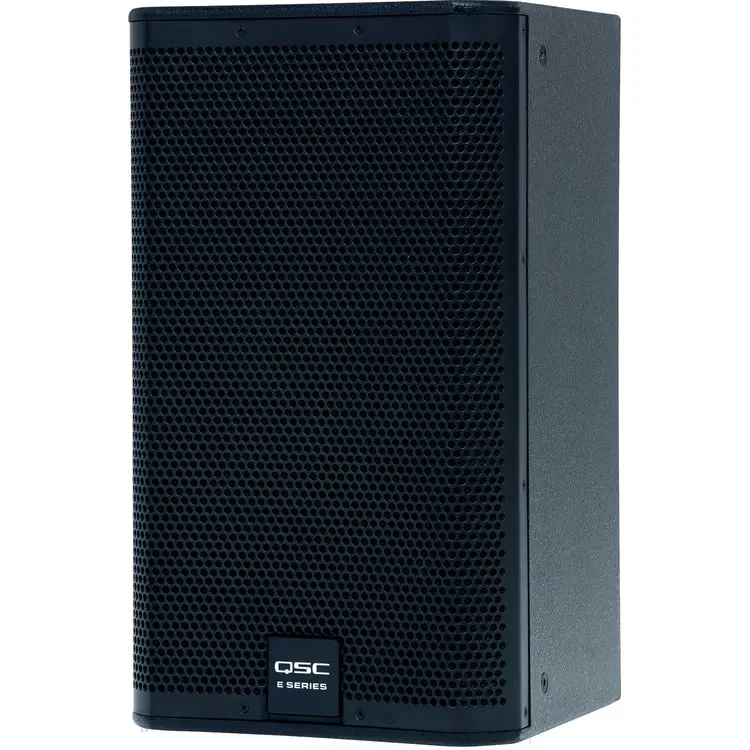

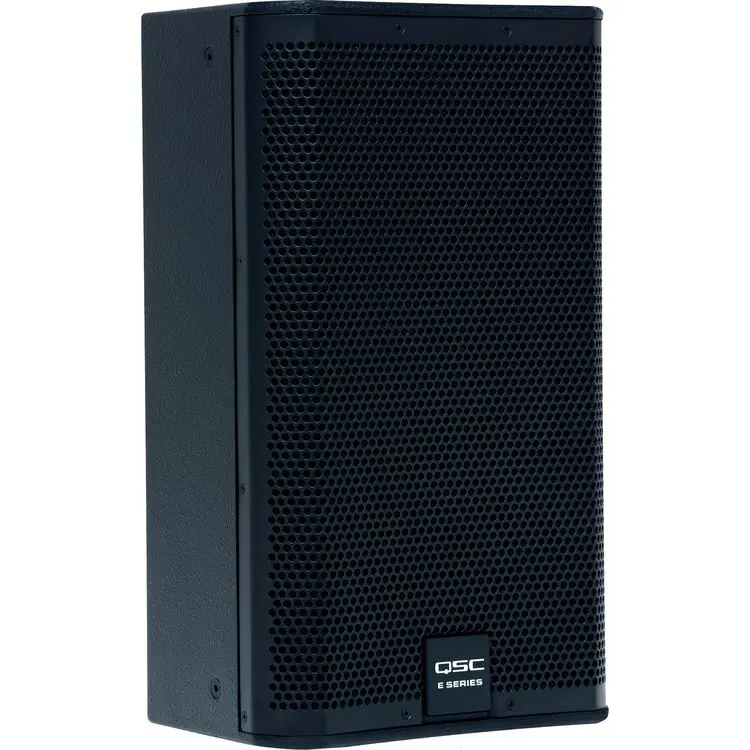

QSC E110 Two-Way 300W Passive Loudspeaker - 10" SKU# E110

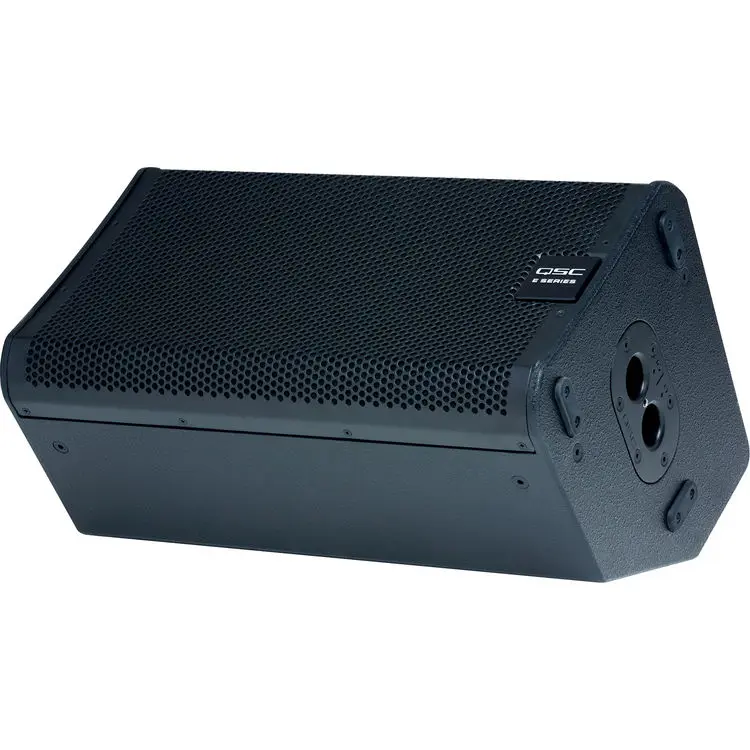

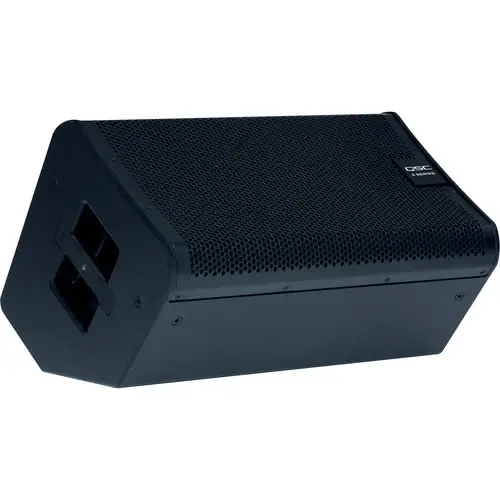

The black QSC E110 is a compact, two-way loudspeaker with a 10” die cast frame woofer with a 2.5” voice-coil, housed in a multi-purpose enclosure for stage monitor or main PA deployment. It incorporates QSC DMT (Directivity Matched Transition) design with an 85° wide coverage. When used as a stage monitor, the E110 loudspeaker is angled up at 55°, allowing it to be placed near the performer when used on a crowded stage.

An all metal, dual-angle, 35mm socket allows the loudspeaker to be mounted vertically on a pole or angled down by 10° to improve audience coverage and reduce rear wall reflections. Multiple mounting options using E-Series Yoke or M8 eyebolts (sold separately) are supported. Input connections include dual NL4 as well as screw terminal receptacles.

Like all speakers in the E-Series Entertainment System, the E110 is compatible with GXD, PLD amplifiers and TouchMix digital mixers, which afford advanced signal processing options to help fine-tune the performance of your speakers. The QSC E110 features a redesigned yoke for better mounting in permanent installations.

• 300W continuous, 1200W peak
• E-Series Entertainment System offers advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
• Rugged tour-grade textured paint
• Foam-lined perforated steel grille
• Constructed of rugged plywood and coated in black, textured paint
• Dual-angle pole socket

• Speaker Type: Passive Loudspeaker
• Configuration 1 x 10-inch, 2-way, non-powered
• Frequency Response (-6 dB) 68Hz – 20kHz
• Frequency Range (-10 dB) 50Hz - 20kHz
• Power capacity²: continuous/peak 300 W / 1200 W
• Sensitivity 95 dB, 1 W @ 1 m
• Coverage Angle 85° conical DMT
• Output1 (Peak SPL @ 1m) 126 dB
• Drivers
  • LF 254 mm (10-inch) driver with 64 mm (2.5-inch) voice coil;
  • HF 25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver
• Nominal Impedance 8Ω
• Cross-over Full-range only, 1.8 kHz
• Input Connections 2 x NL4, 1 x barrier strip
• Enclosure Multi-angle plywood, black texture paint finish. One top-mounted handle. Perforated, powder-coated steel grille with foam lining.
• Mounting and suspension 4 x M8 suspension points, dual angle, 35 mm pole-socket

• High output, professional quality sound with 300 W continuous power
• E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
• E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers
• Rugged tour-grade textured paint
• Foam-lined perforated steel grill
• Suitable for main PA and stage monitor
• Available U-Style Yoke and M8 rigging kit for permanent installation
• Dual angle pole socket

• QSC E110 10" Two-Way Passive Loudspeaker (Black)
