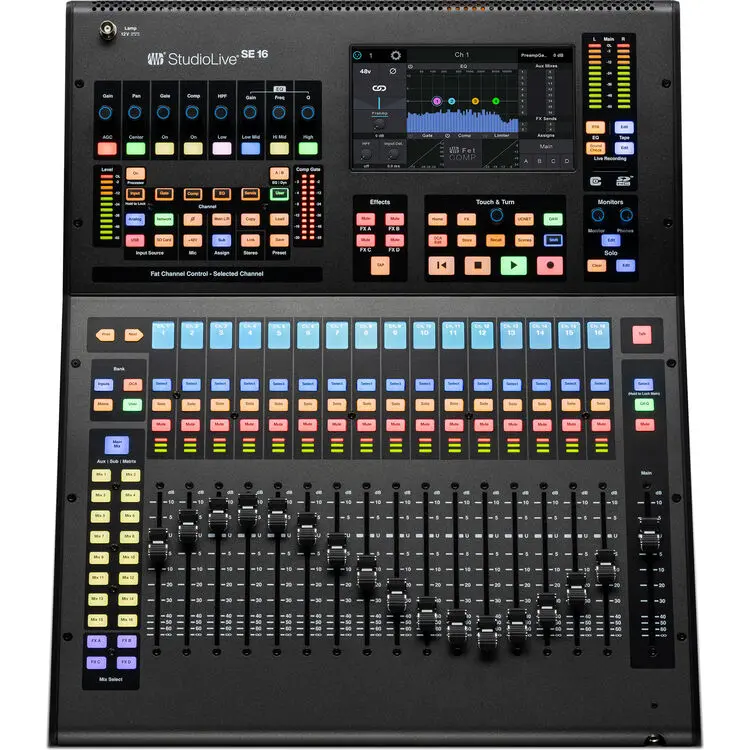

PreSonus STUDIOLIVE-SE16 Digital Console Mixer SKU# 2779200308

40-channel, 26-bus digital mixer with 17 motorized faders, a 64x64 USB Audio Interface, and Milan-certified AVB Audio Networking.

Designed to inspire and built to perform, StudioLive® SE delivers pristine, ultra-low noise studio-quality sound to the stage in a unique split-fader frame. Dial in your mix with an arsenal of audio processors and effects, including meticulous digital models of coveted EQs, compressors, limiters, and reverb.

But live sound for touring, installations, and houses of worship demands more than pristine audio and powerful effects. With the StudioLive® SE 16, you get access to capabilities beyond any solution in its class—like seamless multitrack recording, playback and streaming with integrated Fender Studio Pro and Capture software, remote access mix, console management, and one-click virtual soundcheck.

• Portable, rack-mountable, and flexible 40-channel digital console available with 26 mix buses, integrated recording, advanced audio networking, and a complete professional software suite.
• Flexible onboard 16 mic/line inputs with recallable XMAX preamps, 10 mix outputs, and dedicated Main LR outputs plus a Mono sum output.
• 17 fully recallable touch-sensitive motorized faders.
• Milan-certified AVB audio networking ecosystem makes it easy to connect PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, other Studiolive Series III mixers, and AVB-D16 Dante bridge.
• PreSonus Metro provides control of your mixer over the internet from anywhere in the world with real-time audio monitoring.
• Continuously bidirectional 64x64 USB 2.0 interface with deep integration and included PreSonus Capture multitracking software with automated Virtual Soundcheck.
• 7 State-Space modeled EQ and 8 vintage-inspired compressors options available on every input and bus.
• Onboard 34x34 multitrack SD Card recording.
• Take charge of your mix with 16 FlexMixes (aux mixes, subgroups, or matrix mixes), 4 dedicated FX mixes, 4 dedicated subgroups, and 24 DCA Groups.
• Free Universal Control lets you remotely control your mixer, dial in mixes of line, or listen in and control your mixer over the Internet using PreSonus Metro.
• PreSonus Metro lets you remotely control your mixer from anywhere with an Internet connection and monitor your audio in real time.
• Free QMix-UC for iPhone and Android with easy-to-use Wheel of Me puts musicians’ monitor mixes in the palms of their hands.
• Includes both Studio One Pro DAW and Capture Multitrack software.
• Optional Dante support with AVB-D16.

• Integrated Multitrack Recording
  • Record every channel and mix with the onboard SD recorder or 64x64 USB audio interface
  • One-click Virtual Soundcheck with Capture
  • Seamless compatibility with Fender Studio Pro and leading DAWs
• Pristine Studio Sound on Stage
  • 17 XMAX-Remote preamps for transparent analog tone and digital recall
  • 32-bit floating-point DSP processing
  • 115 dB A/D–D/A converters with ultra-low jitter clocking
• Expanded Routing and I/O
  • 16 FlexMixes configurable as auxes, subgroups, or matrix mixes
  • AVB networking with StudioLive Stage Boxes and Milan-compatible gear
  • Four dedicated effects buses, four subgroups, and 24 DCAs
• Advanced Fat Channel Processing
  • Dynamic Fat Channel design with 8 scribble strip displays for fast visual access and customization
  • All 7 EQs and 8 Compressors from the Fat Channel Collection included
  • Modeled after iconic hardware: Brit Comp, FC-670, Tube EQ, and more
  • Extended reverb parameters: Diffusion, Predelay, Room Size, and advanced damping
• Metro™ Remote Access and Universal Control
  • Control every aspect of your mix remotely—from routing to effects
  • Provide technical support and reconfiguration remotely
  • Use QMix®-UC for personal monitor mixing from mobile devices
• Mixing Comfort and Control
  • 17 touch-sensitive motorized faders deliver smooth automation and tactile mixing
  • Ergonomic flat screen and redesigned fader caps for maximum visibility and comfort

Expand your system and stay industry-ready—StudioLive SE connects effortlessly to networked StudioLive Stage Boxes and any Milan-compatible I/O, while its sleek design, intuitive layout, ergonomic feel, and high-contrast UI maximize comfort and streamline workflow during long sessions.

• PreSonus StudioLive® Series III SE 16 Digital Console Mixer / Recorder / Interface
• IEC Power Cable
