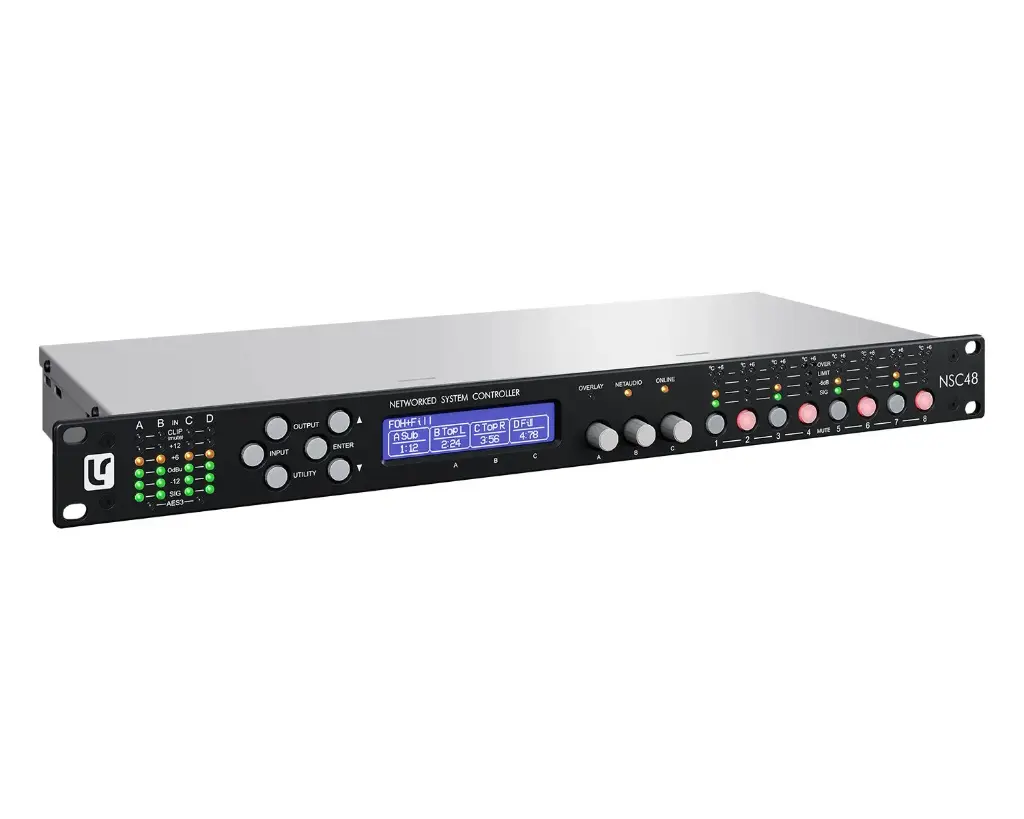

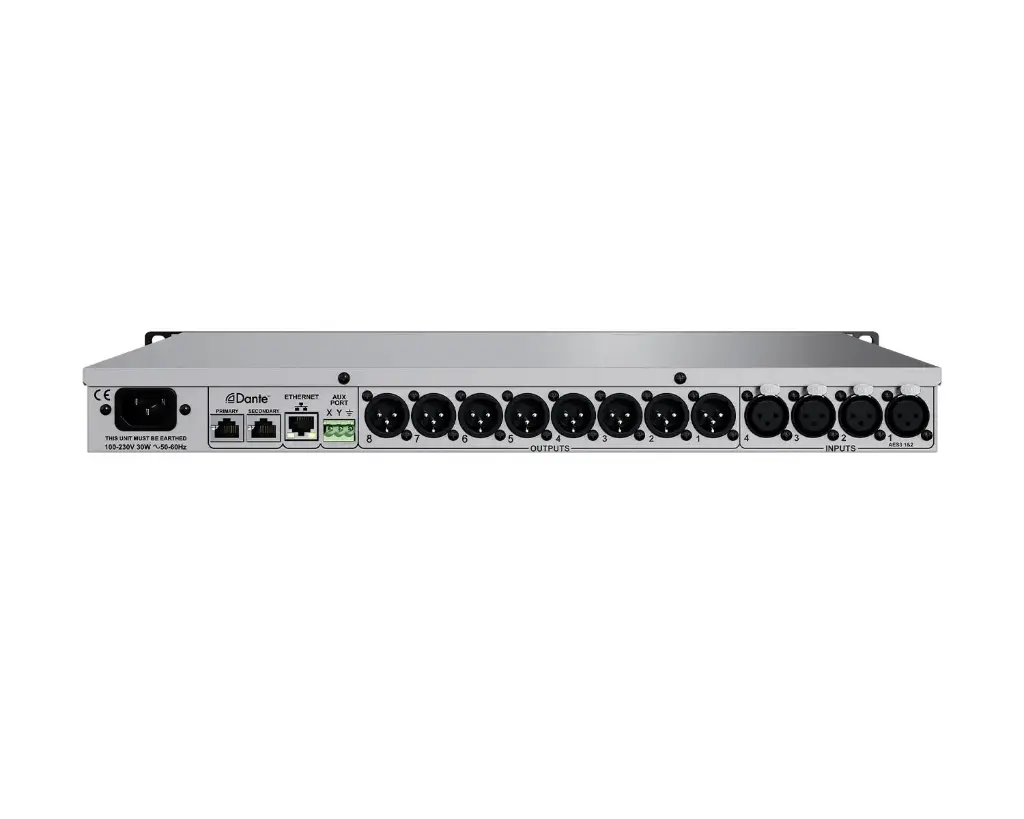

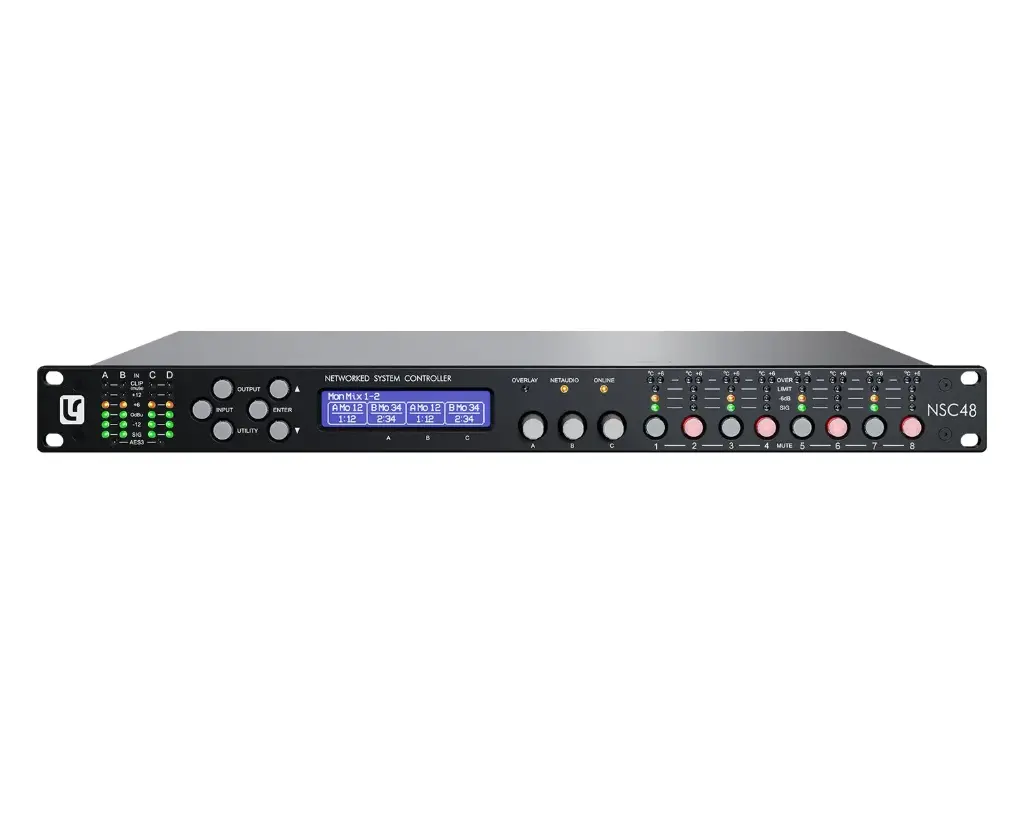

Linea Research NSC48 Dante Networked System Controller SKU# NSC48 DANTE
The Linea Research NSC48 Dante is the flagship of the NSC range – a 4-input, 8-output networked system controller with integrated Dante audio networking and 96kHz DSP processing. With eight outputs and Dante connectivity, it handles the most demanding multi-way and multi-zone loudspeaker configurations while keeping the entire signal chain in the digital domain from console to processor output.
Specifications
- Inputs: 4Â (Analogue + AES3 + Dante)
- Outputs: 8Â (Analogue + Dante)
- DSP Sample Rate: 96 kHz
- Crossover Filters: LIR (Linear Phase)
- Limiter: VX Limiter Suite (Peak, RMS, Multiband)
- Dante: Yes – integrated I/O
- Remote Control: Ethernet
- Software: System Engineer
- Form Factor: 1U rack mount
Features
- Four input channels and eight output channels
- 8×8 Dante I/O connectivity available across all models
- 96kHz Digital Signal Processing
- Analogue, AES3 input as standard
- Full front panel user interface offers simple intuitive local operation
- Control and telemetry via ethernet with System Engineer software
- Proprietary VX (Virtual X-Over) limiter
- Flexible module preset recall
- Powerful grouping & multi-layer EQ
- FIR file compatibility 48kHz/96kH
Items Included
- NSC Digital Signal Processor Advanced System Controller unit
- IEC mains power cable (European specification)
- Safety instructions leaflet
- Certificate of conformity (CE)
