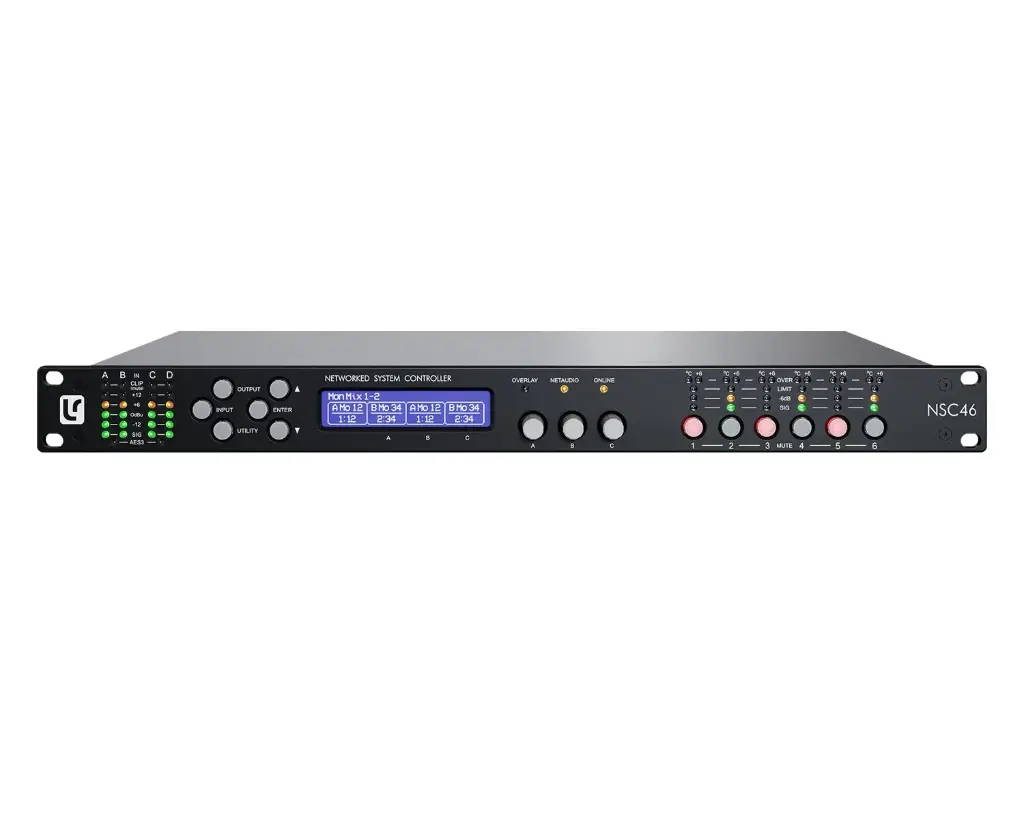

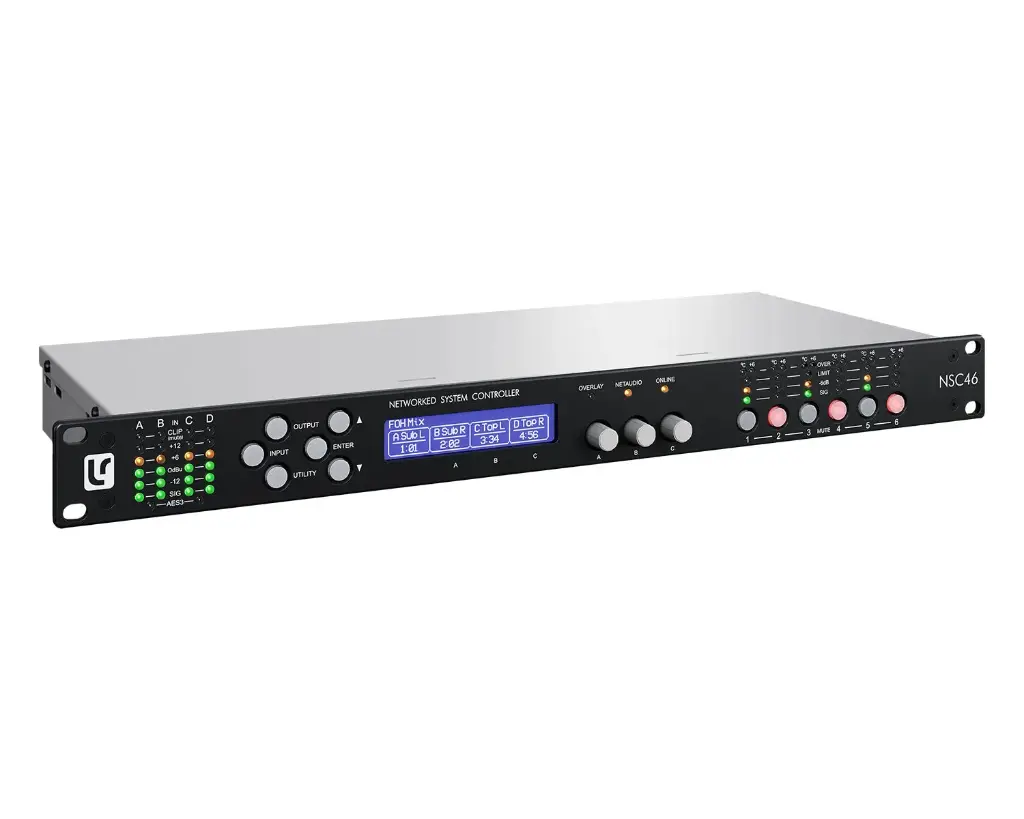

Linea Research NSC46 Networked System Controller SKU# NSC46
The Linea Research NSC46 is a 4-input, 6-output networked system controller built on ASC48-derived architecture with 96kHz DSP. With four inputs and six outputs, it handles more complex loudspeaker configurations than the NSC24 – ideal for multi-way systems or venues running several zones from a single processor. Analogue and AES3 connectivity is standard, with Ethernet remote control via System Engineer.
Specifications
- Inputs: 4 (Analogue + AES3)
- Outputs: 6Â (Analogue)
- DSP Sample Rate: 96 kHz
- Crossover Filters: LIR (Linear Phase)
- Limiter: VX Limiter Suite (Peak, RMS, Multiband)
- Dante: No
- Remote Control: Ethernet
- Software: System Engineer
- Form Factor: 1U rack mount
Features
- Four input channels and six output channels
- 96kHz Digital Signal Processing
- Analogue, AES3 input as standard
- Full front panel user interface offers simple intuitive local operation
- Control and telemetry via ethernet with System Engineer software
- Proprietary VX (Virtual X-Over) limiter
- Flexible module preset recall
- Powerful grouping & multi-layer EQ
- FIR file compatibility 48kHz/96kHz
Items Included
- NSC Digital Signal Processor Advanced System Controller unit
- IEC mains power cable (European specification)
- Safety instructions leaflet
- Certificate of conformity (CE)
Limited 1 Year Manufacturer WarrantyÂ
