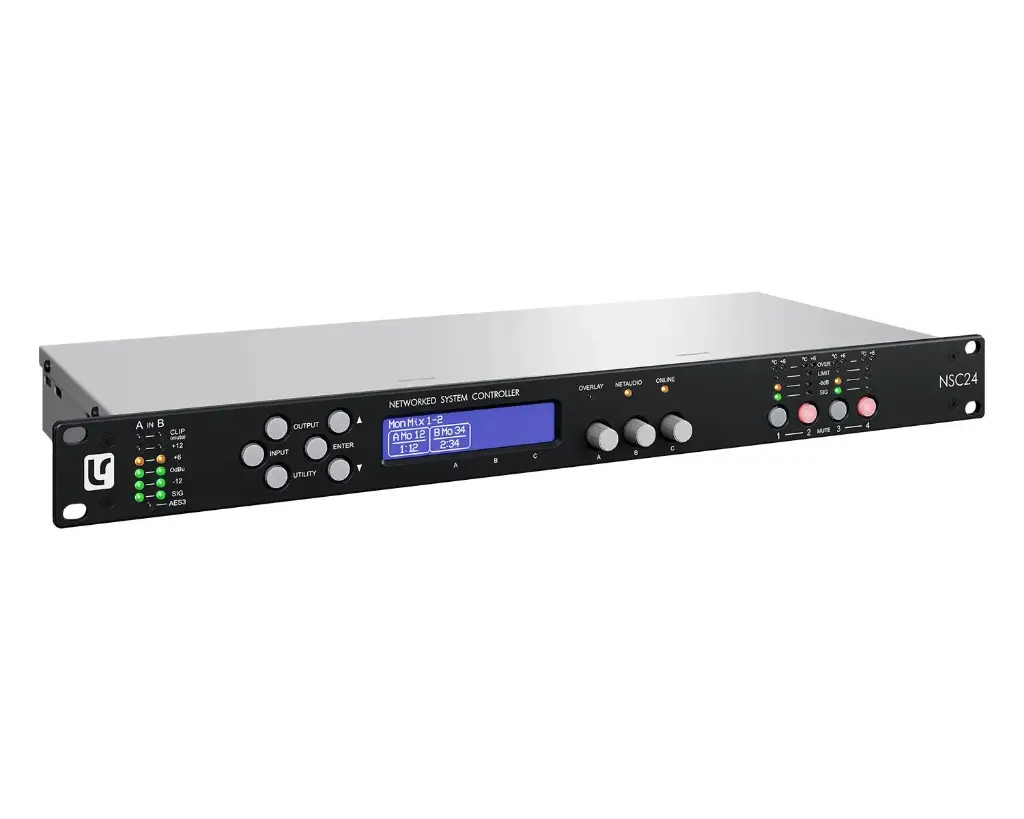

The Linea Research NSC24 Dante is a 2-input, 4-output networked system controller with integrated Dante audio networking, built on ASC48-derived architecture with 96kHz DSP. It provides loudspeaker management, crossover filtering, and system control with the ability to receive and transmit audio over Dante alongside analogue and AES3 connectivity – keeping audio entirely in the digital domain from input to output.
Specifications
Inputs: 2Â (Analogue + AES3 + Dante)
Outputs: 4Â (Analogue + Dante)
DSP Sample Rate: 96 kHz
Crossover Filters: LIR (Linear Phase)
Limiter: VX Limiter Suite (Peak, RMS, Multiband)
Dante: Yes – integrated I/O
Remote Control: Ethernet
Software: System Engineer
Form Factor: 1U rack mount
Features
- Two input channels and four output channels
- 8×8 Dante I/O connectivity available across all models
- 96kHz Digital Signal Processing
- Analogue, AES3 input as standard
- Full front panel user interface offers simple intuitive local operation
- Control and telemetry via ethernet with System Engineer software
- Proprietary VX (Virtual X-Over) limiter
- Flexible module preset recall
- Powerful grouping & multi-layer EQ
- FIR file compatibility 48kHz/96kHz
Items Included
- NSC Digital Signal Processor Advanced System Controller unit
- IEC mains power cable (European specification)
- Safety instructions leaflet
- Certificate of conformity (CE)
Limited 1 Year Manufacturer WarrantyÂ
