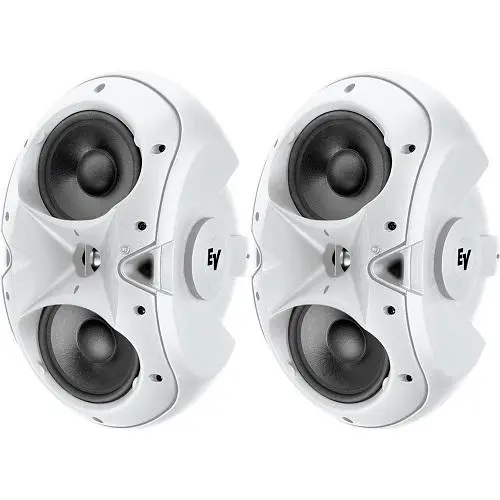

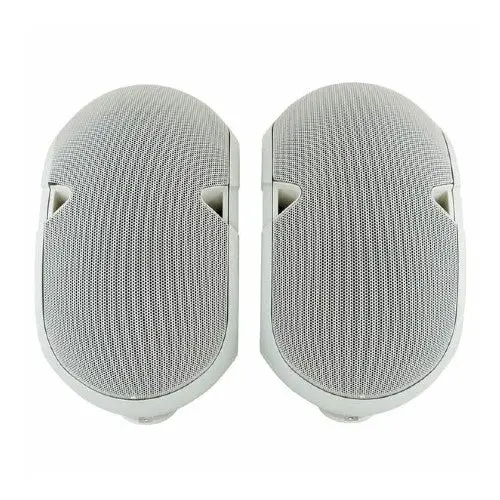

Electro-Voice EVID 4.2T Pair Transformer-Isolated Passive Installation Speaker
The Electro Voice EVID 4.2T is a Dual 4-inch Two-Way Surface-Mount Loudspeaker with Transformer.
EVID premium commercial loudspeakers bring best-in-class sonic characteristics and stunning high fidelity to a broad range of installation applications including performance and sports venues, retail environments, conference and meeting rooms, and hospitality settings such as restaurants and bars. EVID loudspeakers feature innovative designs that beautify not only the sound of a room but also its looks. EVID 3.2, 4.2, and 6.2 models are available in "T"-designated versions with internal 70 or 100 V line transformer. High power and high performance, EVID is the superior solution to today's installation needs.
- Line-array enhanced coverage control
- Organic, unobtrusive shape
- Strong-Arm-Mount TM for easy, flexible aiming (includes mounting kit)
- Full-bandwidth overload protection
- Weather resistant - Conforms to Mil Spec 810 and IEC 529 IP 34
- Dual LF transducers for extended bass and greater power handling and output
- Ti direct-radiator HF transducer, Neodymium structure
- High sensitivity
- Magnetically shielded
- Zinc-plated grilles
Features
- Compact full range
- Ideal for restaurants, bars, patios, and retail
- Vented LF enclosure
- 1-inch titanium diaphragm HF driver with neodymium magnetic structure
- Coherent Coverage Waveguide
- Full-bandwidth overload protection (LF and HF)
- Elliptical weather-resistant ABS enclosure
- Paintable black or white finish
- Magnetically shielded for video applications
- Strong-Arm Mount for easy, flexible aiming
- "T" version for 70 or 100 V distributed systems
Specifications
- Chassis Size: 4" (101.6 mm)
- Input Connections: Spring Terminal
- Speaker Type: Full-range, Mid-High, Two-Way
- Transformer Taps: 70 V: 3.75 W, 70 V/100 V:7.5 W, 15 W,30 W,8 Ω Bypass
- Frequency Response (-10 dB): 65 - 20000 Hz
- Internal Crossover: Yes
- Sensitivity 1 W/1 m: 89 dB
- Max. SPL/1m (calc): 115 dB
- Coverage (Nominal -6 dB) H: 120 °
- Coverage (Nominal -6 dB) V: 80 °
- System Power Handling (Continuous 200w 8 ohm - 400w program 8 ohm): 100/400 Watts
- LF Transducer: Two 4-inch
- LF Power Handling: Two 4-inch Watts
- HF Power Handling: 1-inch Watts
- HF Transducer: 1-inch
- Nominal Impedance (Passive): 8 Ω
- Minimum Impedance: 6 Ω
- Outdoor: Yes
Available colours
Black  MFR# EVID 4.2T
White MFR# EVID 4.2TW
Limited 3 Year Manufacturer Warranty
Specifications
| Color | White, Black |
