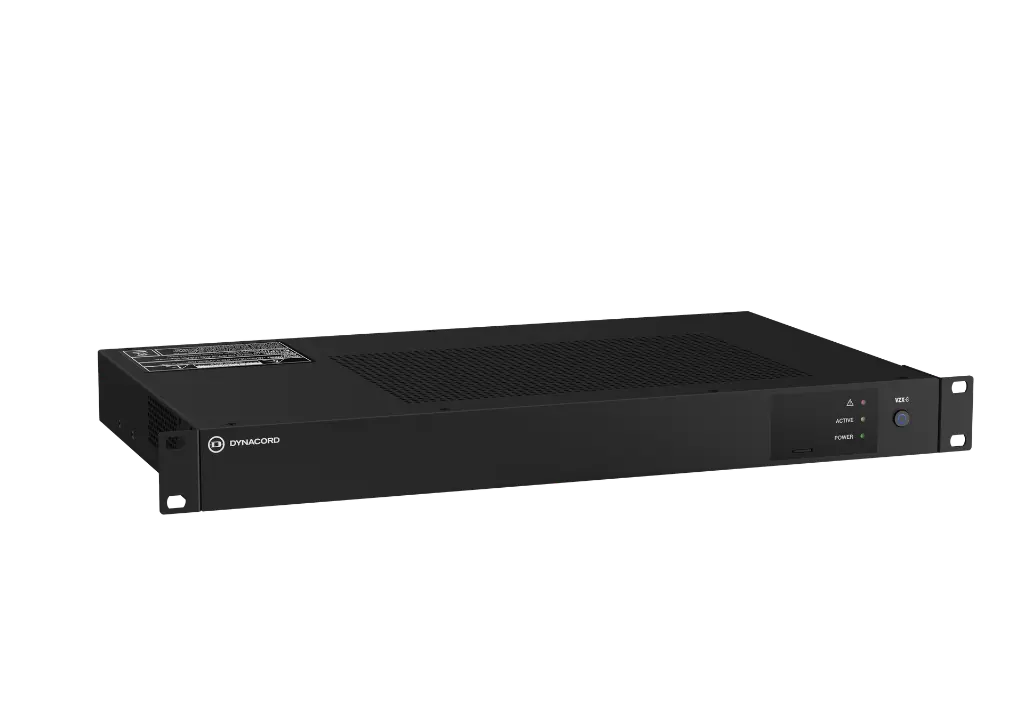

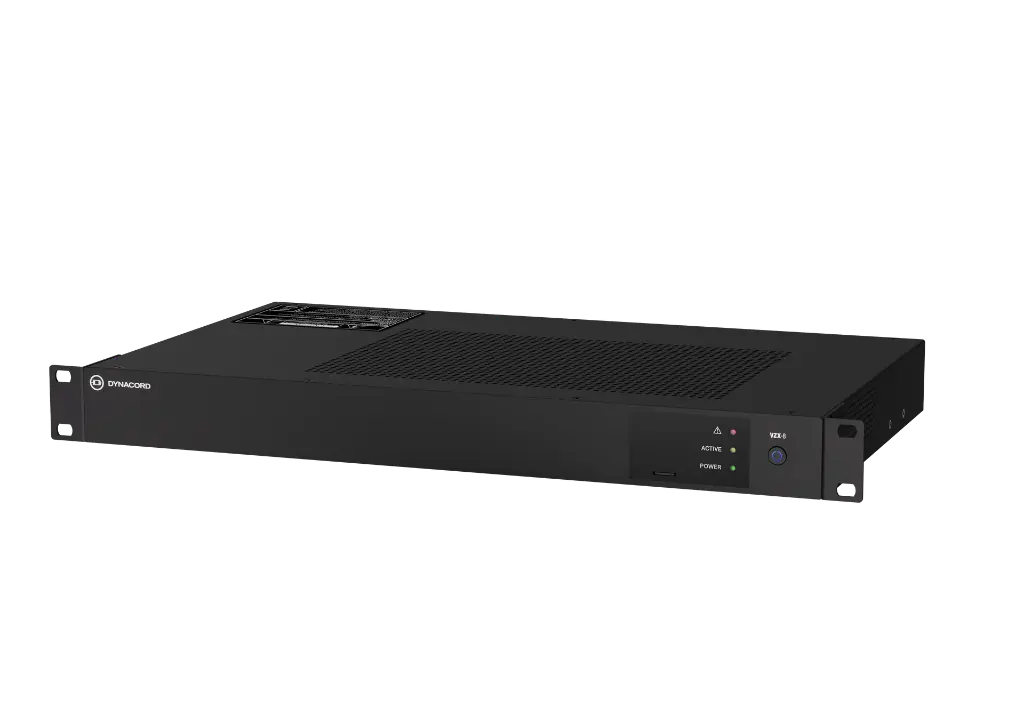

Dynacord VZX-8 8-Zone Audio Processor SKU# VZX-8

The VZX-8 8-Zone Audio Processor from Dynacord is a DSP processor and mixer for larger venues or businesses. Employing 20 processed input sources, 8 processed zone outputs and advanced DSP features, audio system performance can be maximized in a variety of useful and intuitive ways.

Features include virtual Mixer with Automixer (AMM), zone-assignable effects such as EQ and reverb, and access to Sonicue databases which house presets for many popular and frequently used loudspeaker models. Storing config files, music and more is simplified with the 32 GB MicroSD card; two RJ45 Accessory ports support cable lengths up to 1640' per port, allowing integration of 16 total devices. VZX-8 works seamlessly with Dynacom VCS-8 Call stations and VWP wall panel controllers to provide an even more localized and individually geared zone control system. The VZX-8 handily meets the diverse and constant needs for music, paging and other programming in large-scale audio installations.

The VZX-8 8-Zone Audio Processor features 20 processed input sources, 8 processed zone outputs and advanced DSP features including a Virtual Mixer with AMM, ANC, AGC, EQ with FIR, and more. Loudspeaker presets for Electro-Voice and third-party loudspeakers allow installers to instantly maximize system performance.

• Bars
• Restaurants
• Hospitality Venues
• Retail Outlets
• Fitness Centers
• Houses of Worship
• Educational Spaces
• Corporate Spaces
• Warehouses

• Eight GPIO (General-Purpose Input/Output), Ethernet control with TCP/IP, JSON RPC (Remote Procedure Call)
• Two RJ45 Accessory ports work reliably with cable lengths up to 1640 feet (500M) per port, allowing 16 devices total
• Two RJ45 Line Outputs to V-Series amplifiers for fast connections

• For Use in Larger Commercial Spaces
• 20 processed input sources including 8 balanced Mic/Line inputs
• Full Matrix DSP: input EQ, compression, AGC, Noise Gate, FX, room EQ, speaker EQ with FIR and more
• Virtual Mixer with Automixer (AMM) and FX available for live mixing on any zone
• 32 GB MicroSD card included for storing music, messages and configuration files
• Compatible with SONICUE speaker databases for EV Loudspeakers and more: maximize the performance of your system, instantly
• 2 x RJ45 Accessory ports work reliably with cable lengths up to 1640 feet (500M) per port, allowing 16 devices total
• Add VCS-8 Call stations and VWP wall panel controllers with display for level, zone, source control to complete your system

• Dynacord VZX-8 8-Zone Audio Processor
• AC Power Cable
• 4 x 12 Position Terminal Block Plug for Inputs & Outputs
• 20 Position Terminal Block Plug for GPIO
• CAN-Termination Plug
• Rubber Feet for Tabletop Mounting
