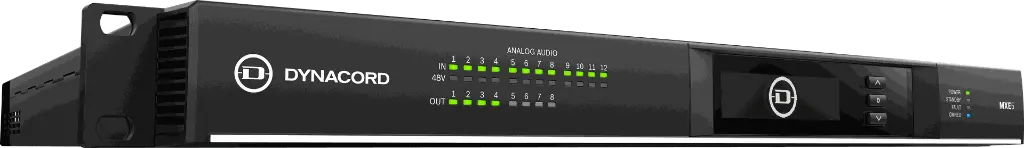

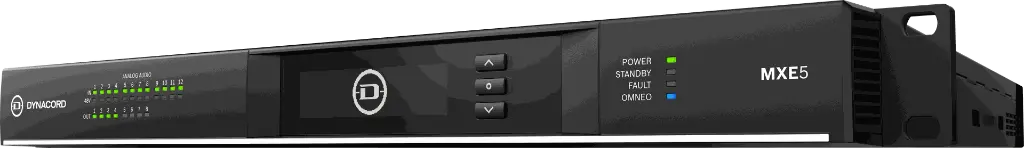

Dynacord MXE5-64 Audio Matrix Mix Engine SKU# MXE5-64

The Dynacord MXE5-64 is a versatile matrix mix engine designed for high-performance audio processing in live and installed sound applications.

The MXE5-64 is ideal for medium to large venues, such as theaters, conference centers, and houses of worship, offering a powerful, versatile, and reliable solution for complex audio routing and processing needs.

Working as a control center and communications hub for other system devices and IP-based peripherals, it provides comprehensive supervision and system wide control, featuring 12 analog mic/line inputs, 8 line outputs and 64x64 Dante channels.

The freely configurable DSP unit offers a variety of DSP blocks, the configurable matrix blocks support up to 3840 cross-points and up to 256 internal signal paths for customized DSP designs. Onboard are professional input and output processing features, including mixing, parametric EQ, delays, compression, limiting, ducking, auto mixing, auto gain control, ambient noise compensation and a comprehensive speaker processing with FIR drive.

MXE’s TaskEngine provides advanced, system wide control with functions like scheduler and scene handling. The MXE5-64 is entirely designed and configured in SONICUE Sound System Software which also allows the creation of customized GUIs for use in SONICUE Control on TPC-1 touch panels, iOS devices or PCs.

• 64 input and 64 output channels for flexible routing and mixing.
• Extensive DSP features such as EQ, compression, and delay.
• Support for 96 kHz sampling rate for superior audio fidelity.
• Built-in DSP for advanced signal processing without requiring external processors.
• Room EQ, feedback suppression, auto-mixing, and more.
• Support for Dante, AES67, and OMNEO protocols for audio networking.
• Integration with Dynacord’s SONICUE software for intuitive system control and configuration.
• Real-time monitoring and status updates for seamless operation.
• Modular design for expansion and support for redundant network setups.
• Compatibility with third-party control systems like Crestron and AMX.
• GPIO and control ports for external device interaction.

• Dynacord MXE5-64 DSP Matrix Mix Engine 64x64 Dante Channels
