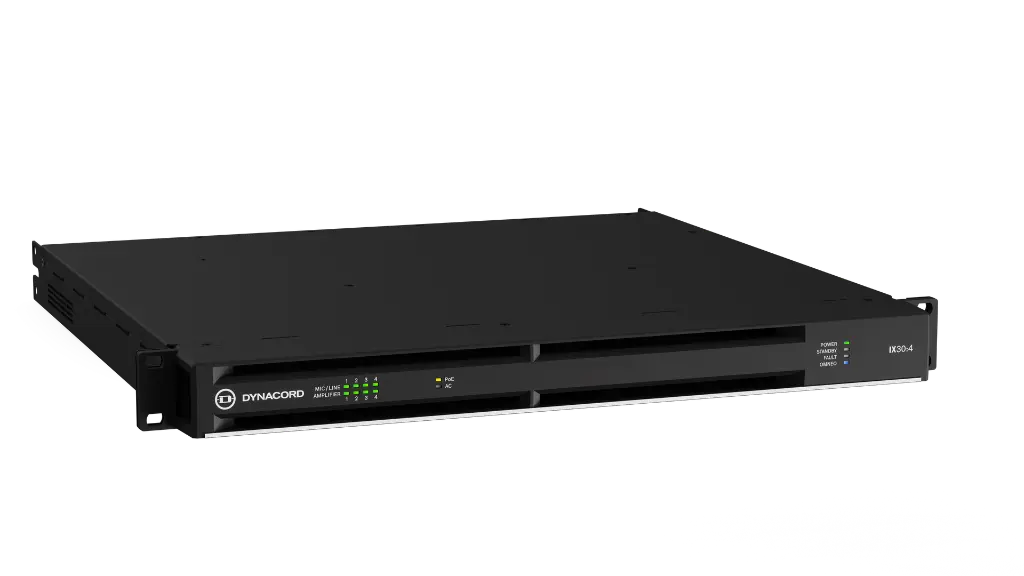

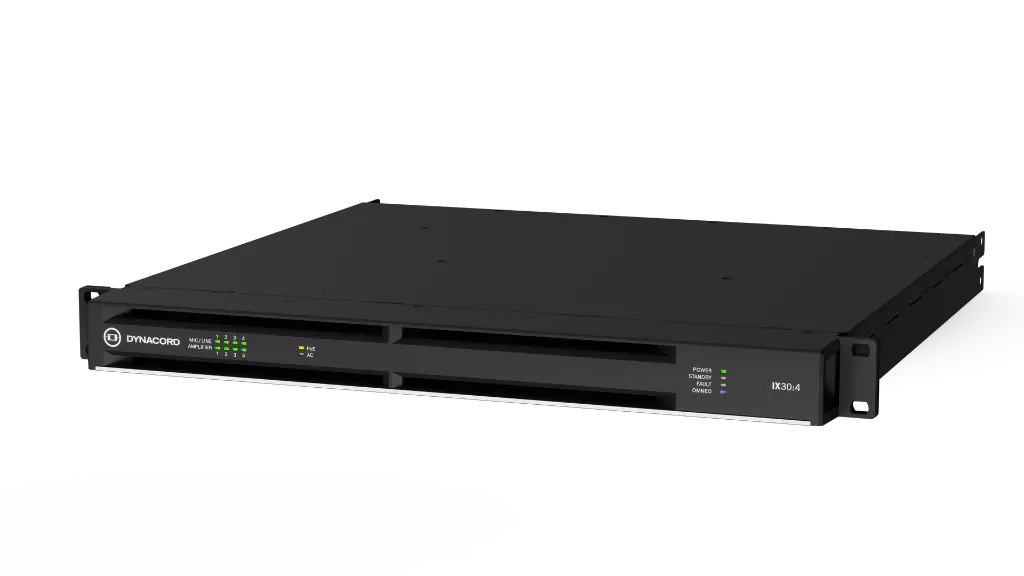

Dynacord IX30-4 4 Channel Networked Multichannel DSP Amplifier - 3KW SKU# IX30-4

The Dynacord IX30 is ideal for live music and sports venues, houses of worship, and hospitality, the Dynacord IX30 is a 4-channel networked DSP amplifier sporting 8x8 Dante I/O, four 2-pin block mic/line inputs, and 96 kHz DSP processing with a 12x12 matrix mixer. With 3000W of total output power for its four output channels, the IX30 can provide enough juice to facilitate many audio system configurations.

The amp section can operate in four channel mode or bridged mode, and with the 3kW powerTANK, this amp supports both low-Z operation at 2, 2.7, 4, or 8 ohms and hi-Z operation at 70 or 100V. The MXE-style TaskEngine lets you easily engage in automation, scheduling, and integration. The system is power efficient thanks to ecoRAIL technology and ghostPOWER, which maintains DSP, Dante networking, and analog inputs via PoE. The onboard DSP includes numerous EQs, dynamics processors, Dynacord FX, DIR-Drive, and the ability to output pilot tones (and detect them on inputs). The IX30 supports OCA/AES70 remote control and includes block connections for analog I/O and GPIO. Finally, the IX30 supports the SONICUE platform and can be used as a SONICUE control server.

IX30:4 features eight (8) Dante inputs, eight (8) Dante outputs and four (4) mic/line inputs that can be used as Dante break-in points. The natively operating 96 kHz DSP features a fully equipped 12 x 12 matrix mixer, EQs, dynamics, Dynacord FX and FIR-Drive capability. All 12 inputs feature pilot-tone detection, while the eight (8) Dante and four (4) amplifier outputs allow to add pilot tones up to 30 kHz.

The IX30:4 uses Dynacord‘s patented ecoRAIL technology for optimizing energy consumption. ghostPOWER via POE maintains the entire DSP, the Dante network and all mic/line inputs active, independent of the mains power. The integrated MXEstyle TaskEngine allows for system automation, scheduling, control, and integration to third party devices.

IX series is fully integrated in Dynacord‘s SONICUE Sound System Software and can be used as a SONICUE control server, for direct use with the WPN1 wall panel as well as TPC-1, iOS and Windows devices.

• 4-channel networked DSP amplifier with 3 kW powerTANK for Hi-Z and Lo-Z operations
• 4 high-quality microphone/line-level inputs with switchable 48V phantom power
• 8 Dante inputs and 8 Dante output channels: direct outs, mix outs, amp outputs
• 96 kHz fully featured DSP with input processing, 12x12 matrix mixer, dynamics, FIR-Drive, Dynacord FX
• ghostPOWER via PoE maintains DSP, Dante network, and mic/line inputs independent of mains power
• ecoRAIL technology for significant energy savings
• State-of-the-art supervision and protection packages derived from flagship IPX series
• Integral part of SONICUE ecosystem, plug-ins for Crestron and Q-SYS available
• MXE-style TaskEngine for system integration, automation and control (e.g. WPN1)
• Dynacord sound quality and reliability

• Live Venues, Sports, Houses of Worship
• 3kW powerTANK for Hi-Z and Low-Z Useage
• 8x8 Dante with OCA/AES70 Remote Control
• Four Mic/Line Inputs with Dante Break In
• 96 kHz DSP with 12x12 Matrix Mixer
• EQs, Dynamics, Dynacord FX, FIR Drive
• MXE-Style TaskEngine for Automation
• ghostPOWER via PoE to Maintain DSP & I/O
• ecoRAIL Tech for Efficient Power Usage
• Can Be Used as SONICUE Control Server

• Dynacord IX30 4-Channel 3000W Networked DSP Amplifier
