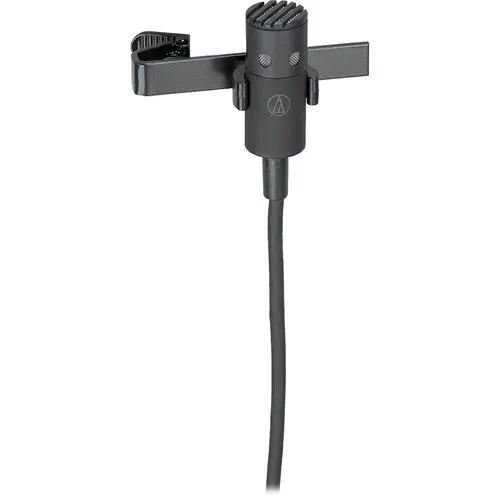

Audio-Technica Professional PRO70 Cardioid Lavalier Microphone SKU# PRO70

The Audio-Technica PRO70 is a cardioid lavalier microphone designed for vocal or instrument capturing in recording or sound reinforcement applications. The frequency response favors the mid-range frequencies of instruments and vocals while minimizing noise registering at high and low frequencies.

The cardioid polar pattern is effective in minimizing pickup at the off-axis sections of the microphone capsule. The result is improved signal before feedback response and minimal ambiance pickup. A low frequency roll-off switch further reduces low frequency noise due to hum, wind etc. The provided UM3 power supply provides phantom power with a single 1.5V AA battery or external phantom power source. The UM3 provides a standard 3-pin XLR output connection to mixers, preamplifiers, cameras etc.

• Miniature condenser for both vocal and acoustic guitar
• Natural, articulate vocal reproduction
• Included instrument adapter for acoustic guitar
• Cardioid polar pattern reduces side/rear sound pickup
• Switchable low-frequency rolloff

• Element: Fixed-charge back plate, permanently-polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 100Hz - 14kHz
• Low Frequency Roll-Off: 80Hz, 8dB/octave
• Open Circuit Sensitivity:
  • Phantom: -45dB (5.6mV) re 1V @ 1Pa
  • Battery:-45dB (5.6mV) re 1V @ 1Pa
• Impedance:
  • Phantom: 200Ω
  • Battery: 200Ω
• Maximum Input Sound Level:
  • Phantom: 123dB SPL, 1kHz @ 1% T.H.D.
  • Battery: 123dB SPL, 1kHz @ 1% T.H.D.
• Dynamic Range (typical):
  • Phantom - 96dB, 1kHz @ Max SPL
  • Battery: 96dB,1kHz @ Max SPL
• Signal-to-Noise Ratio: 67dB, 1kHz @ 1Pa
• Phantom Power Requirements: 11 - 52VDC, 2mA, typical
• Battery Type: 11 - 52VDC, 2mA, typical
• Battery Current/Life: 0.4mA / 1200 hours, typical (alkaline)
• Switch: Off, On - Flat, On - Roll-Off
• Weight (microphone): 0.3oz. (8g)
• Weight (power module): 4.7oz. (134g)
• Dimensions (microphone, L x Dia): 0.98" x 0.40" (25 x 10.2mm)
• Dimensions (power module, H x W x D): 3.27" x 2.48" x 0.87" (83 x 63 x 22mm)
• Output Connector: Integral 3-pin XLRM-type
• Cable: Integral 6ft, permanently attached between microphone and power module
• Note: further information can be found within the items located under the "Documentation" tab above.

• PRO 70 microphone
• AT8411 clothing clip
• AT8444 instrument adapter
• Power module
• Windscreen
• Battery
• Soft protective pouch
