Ashly SRA-4075 Rackmount 4-Channel Power Amplifier - 40 Watts Per Channel At 8 Ohms SKU# SRA-4075
The SRA Series SRA-4075 Convection-Cooled Power Amplifier from Ashly is a 4-channel convection-cooled rackmount P.A. or studio power amplifier housed in a rugged 1-RU metal chassis, offering an output of 40 W per channel at 8 Ohms, designed to drive 4 and 8 Ohm loads.
The SRA-4075 incorporates a switch-mode-power supply and Class-D amplifier circuitry, providing a power-efficient solution. The low-noise unit features a switchable HPF filter and selectable gain sensitivity, turn-on delay DIP switches with up to 8 seconds of delay available, and dual or bridge modes of operation.
The SRA-4075 is equipped with an internally switchable 120V/240V power supply, extensive protection circuitry, and standard Euroblock inputs along with screw terminal outputs
- 1RU 9.4 lb. lightweight rackmount 4-channel power amplifier with 40W per channel power output at 8 Ohms
- Selectable dual or bridge mono operation, designed for 4- or 8-Ohm loads
- 2-stage high-efficiency switched-mode power supply with high power-to-weight ratio
- Ultra-quiet convection-cooled operation
- On-board 80Hz HPF, selectable gain sensitivity (+26/+36 dB)
- Up to 8 seconds of turn-on delay with selectable dip switch complement
- Comprehensive amplifier protection circuitry includes: output over-current, DC output, main supply rail over-voltage, chassis temperature, inrush limiting, and mains fuse

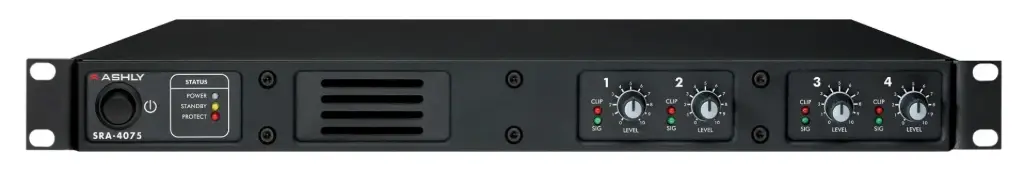

- Front panel indicators include overall power, standby, and protect along with per-channel clip and signal indicators

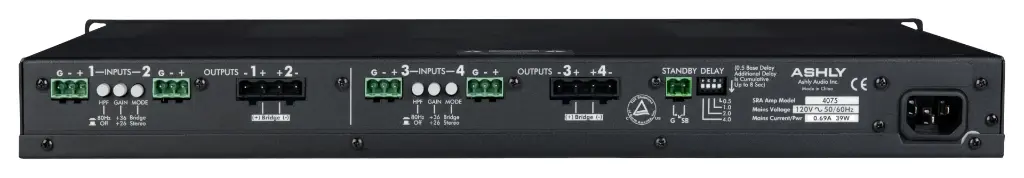

- Euroblock input connectors, screw terminal outputs
- 75W per Channel at 4 Ohms
- 4-Channel Operation
- Convection Cooling
- Extremely Low Noise
- Protection Circuitry
- Level Attenuators for Each Channel
- Selectable Input Sensitivity
- Euroblock Inputs/Outputs
- Alert Status LEDs
- Remote Stand-By Control
- Ashly SRA Series SRA-4075 Convection-Cooled Power Amplifier
- Power Cable
