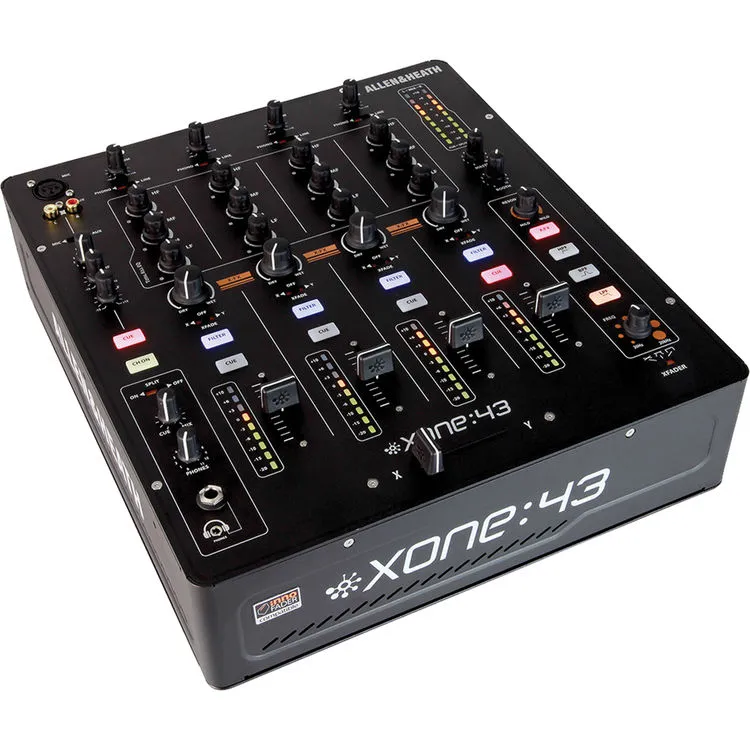

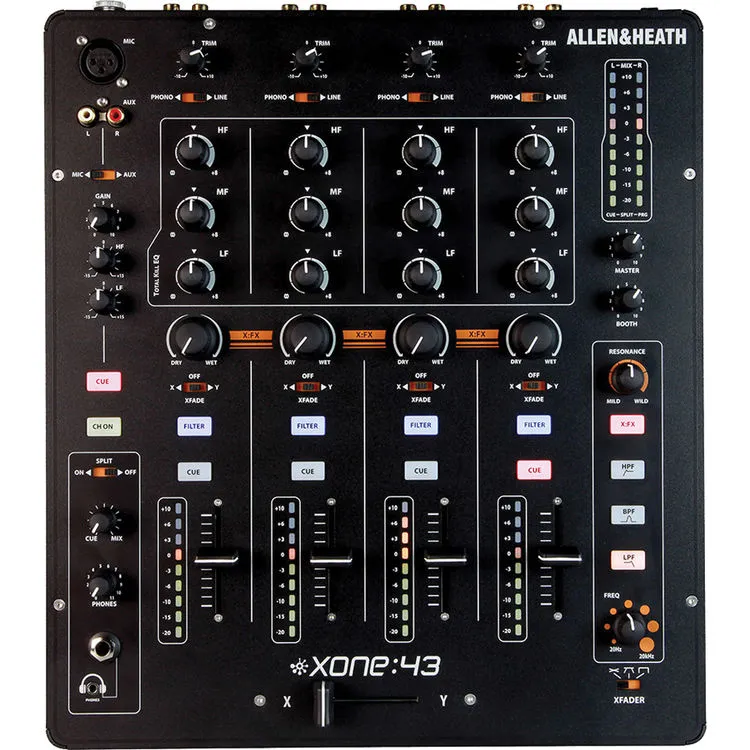

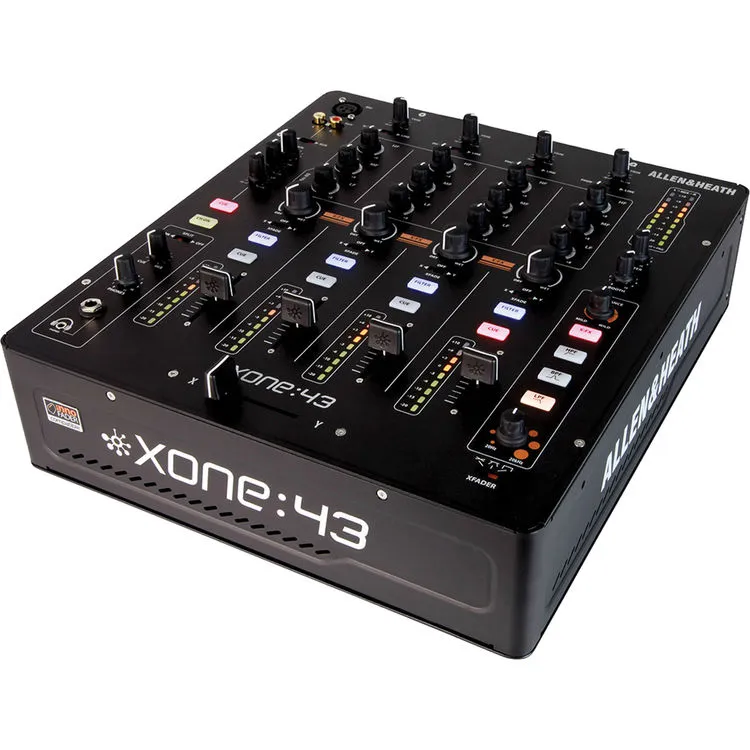

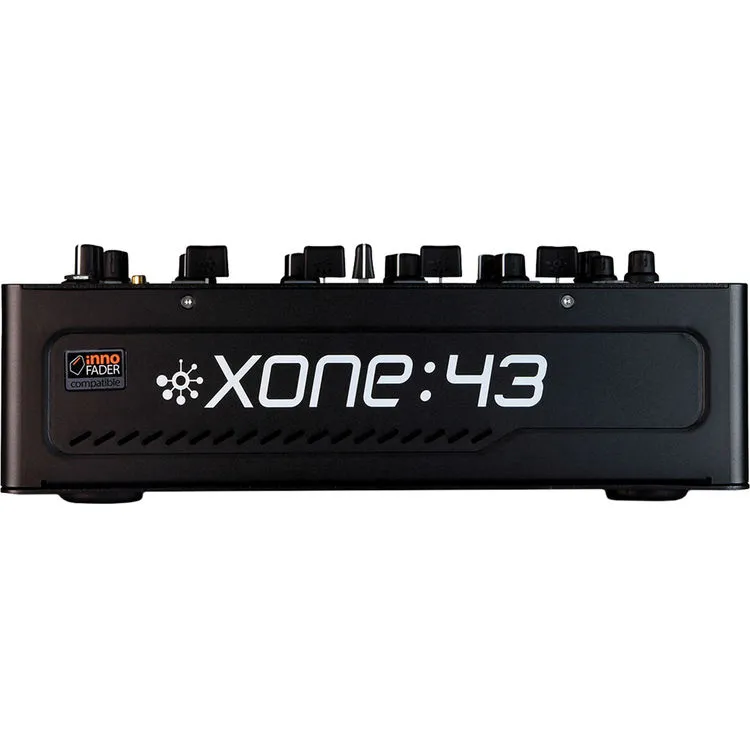

Allen & Heath XONE:43 - 4+1 Channel Analog DJ Mixer SKU# XONE-43

The XONE:43 from Allen & Heath is a 4+1 channel DJ mixer offering professional quality in a simple, yet intuitive layout for professional DJs, serious home enthusiast and night clubs. The mixer features the XONE analog filter with resonance control, 3-band EQ, a replaceable VCA crossfader, and the X:FX send and return that incorporates any outboard FX unit.

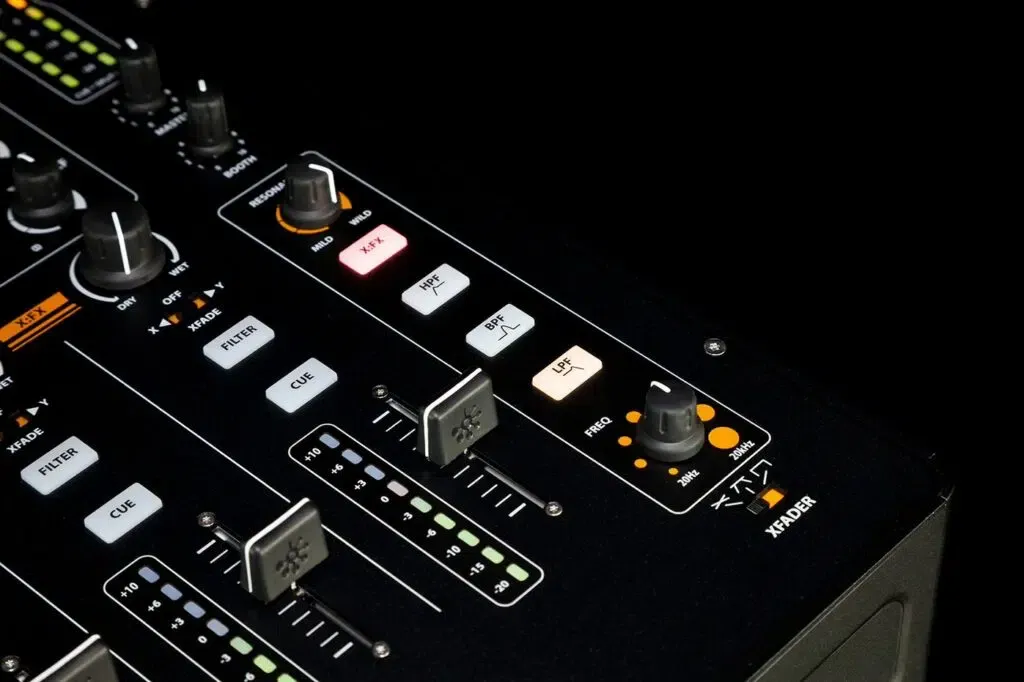

The XONE filter includes high pass, band pass, and low pass filter selections, resonance control, and frequency sweep. Additionally, X:FX may be routed to the filter to add layers of FX and filtering. The crossfader offers three settings for blending and scratching styles and is compatible with a custom Innofader. The microphone channel features a 2-band EQ and doubles as an additional auxiliary input via stereo RCA connectors. The mixer offers XLR main outputs with independent booth and record outputs. The XONE:43 ships with a power cord and a spare set of knobs and buttons.

• 4 channels with phono/line inputs
• VCF Filter system – low-pass, high-pass, and band-pass filters plus frequency and resonance controls
• 3-band EQ

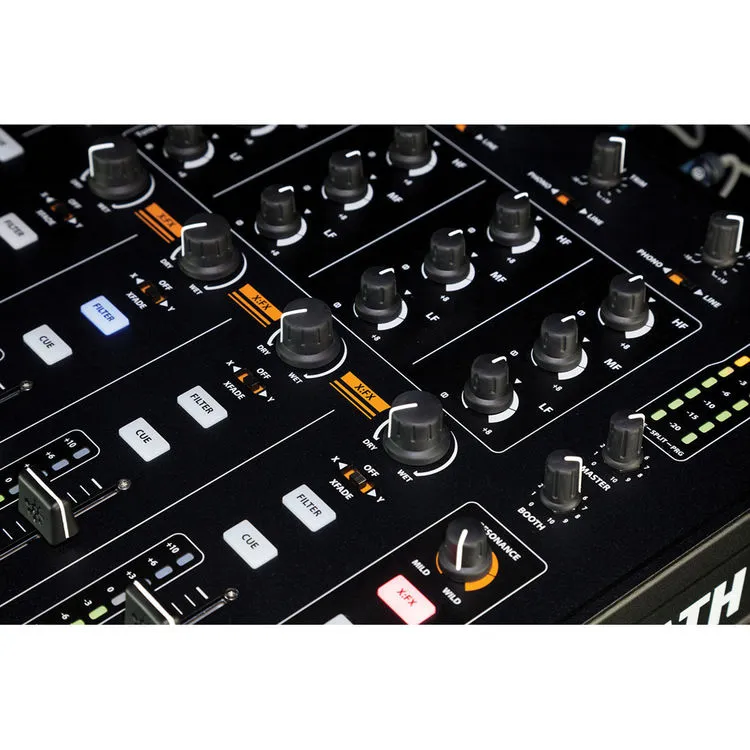

• External FX loop (Send/Return) system with dry/wet control per channel
• Mic input on balanced XLR, with 2-band EQ
• Balanced main mix out on XLR
• Independent booth out
• Record out

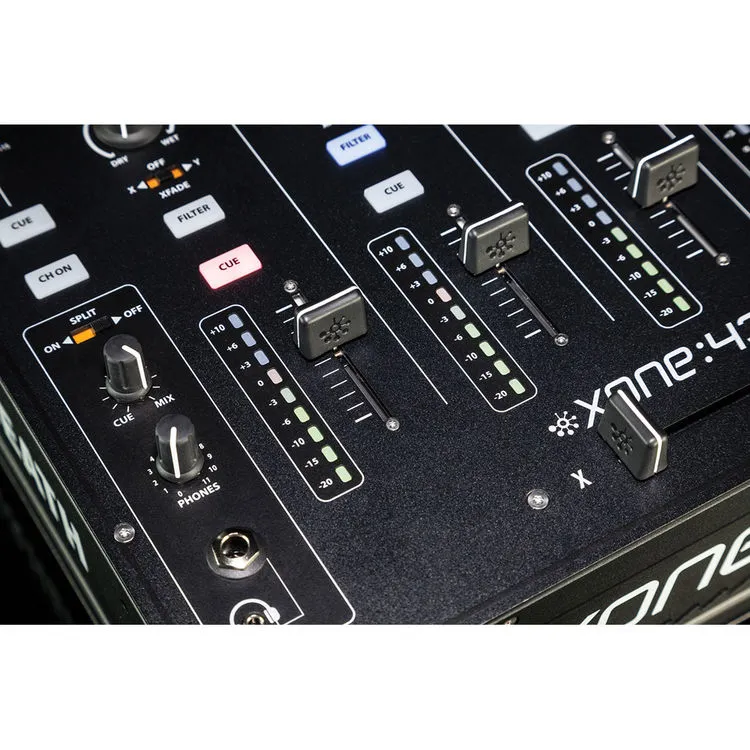

• 3.5mm and 1/4″ headphone outputs
• Touring grade build quality

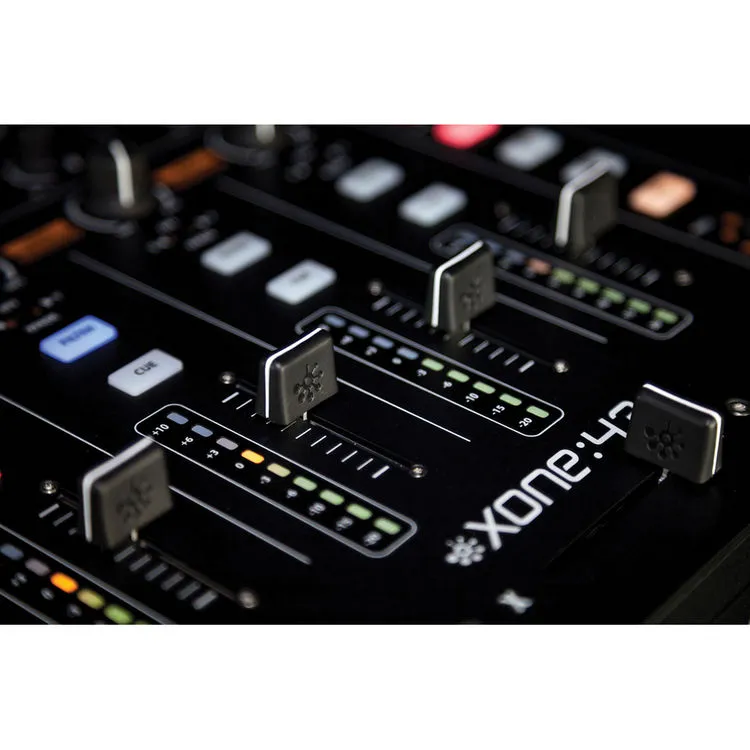

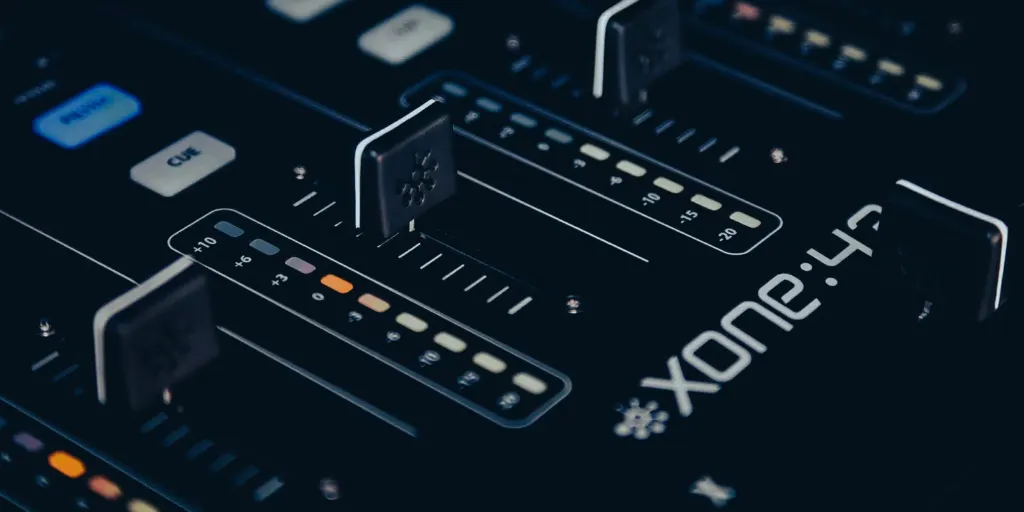

• Smooth VCA channel faders
• User changeable crossfader

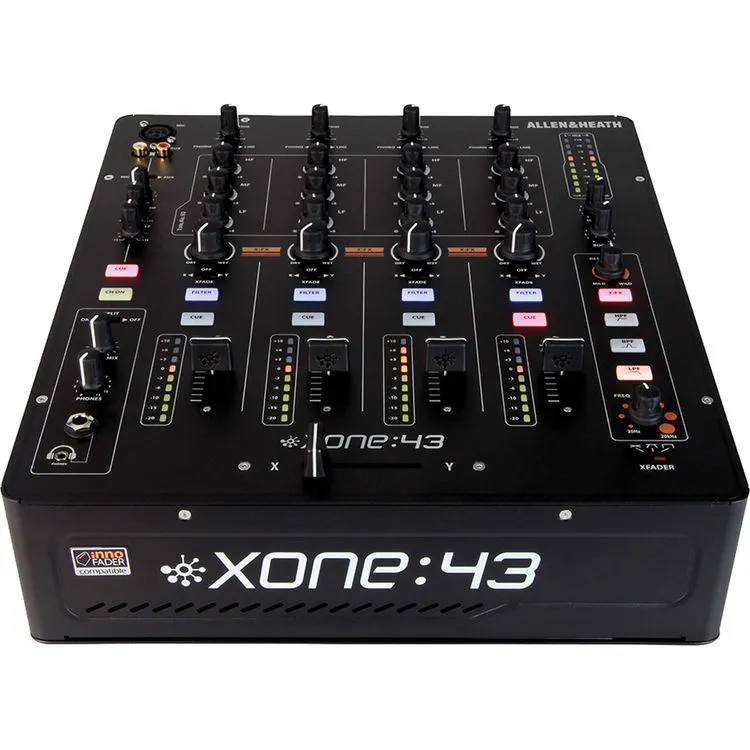

• Innofader compatible
• Crossfader curve switch
• 20 dB pro standard headroom
• 9-segment signal level monitoring

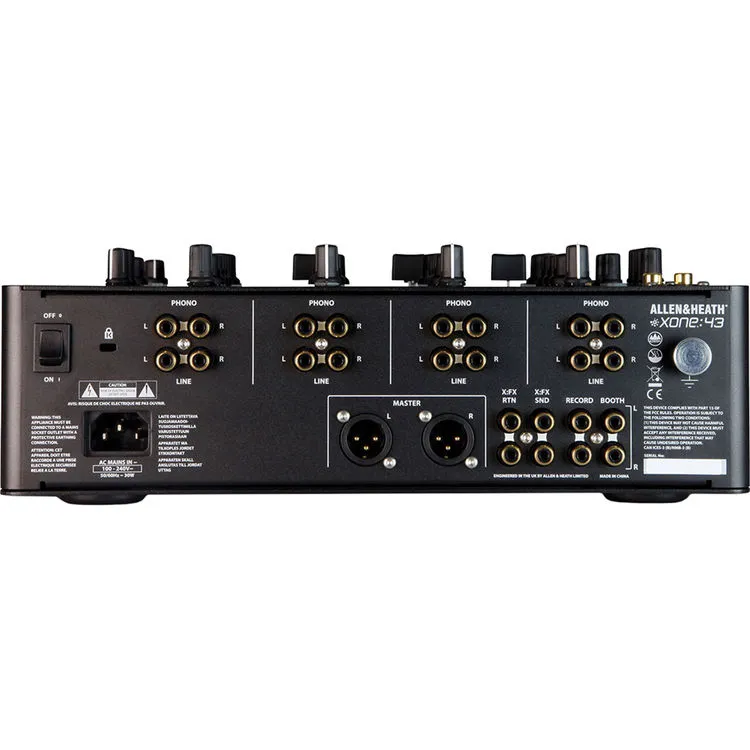

• Input & Output: Input
• Phono 1-4: 8 x RCA (4 x stereo pair)
• Line 1-4: 8 x RCA (4 x stereo pair)
• X-FX Return: 2 x RCA (1 x stereo pair)
• Output
• Master: 2 x XLR (1 x stereo pair)
• Booth: 2 x RCA (1 x stereo pair)
• Rec: 2 x RCA (1 x stereo pair)
• X-FX Send: 2 x RCA (1 x stereo pair)
• Nominal Output Levels Main Mix: +4 dBu
• Booth: 0 dBu
• X:FX Send: 0 dBu
• Record Out: 0 dBu
• Maximum Output Level               Main Mix: +27 dBu
• Booth: +22 dBu
• X:FX Send: +20 dBu
• Record Out: +20 dBu
• Internal Headroom        Channels +20 dB
• Frequency Response    20 Hz to 20 kHz ±0.5 dB
• THD + N               <0.05% @ 1 kHz
• Crosstalk             < -83 dB inter-channel
• Residual Noise  Mix 1: -89 dBu
• Booth: -93 dBu
• X:FX: -77 dBu
• Rec: -92 dBu
• Mix Noise           Mix 1: -82 dBu
• Booth: -84 dBu
• X:FX: -77 dBu
• Rec: -87 dBu
• Meters Channel Meters: Peak reading 9 LED -20 to +10 dB
• Main Meters: Peak reading 9 LED -20 to +10 dB
• Equalization       Mic EQ: 2-Band ±12 dB
• Channel EQ: 3-Band +6 dB / total kill
• Faders  Channel Fader: 1.8" / 45.0 mm stereo VCA, < -85 dB shutoff
• Crossfader: 1.8" / 45.0 mm stereo VCA - replaceable
• Filter     Stereo VCF, analog
• Digital Audio Resolution               N/A
• Power Consumption     Maximum: 30 W

• 4-Channels with Phono/Line Inputs
• 3-Band EQ
• X:FX Send and Return External FX Loop
• Xone Filter w/ HPF, BPF, LPF Selections
• Mic Input with 2-Band EQ
• Includes Spare Set of Knobs and Button

• Allen & Heath XONE:43 - 4+1 Channel Analog DJ Mixer
• Set of Spare Knobs and Buttons
• Power Cord
