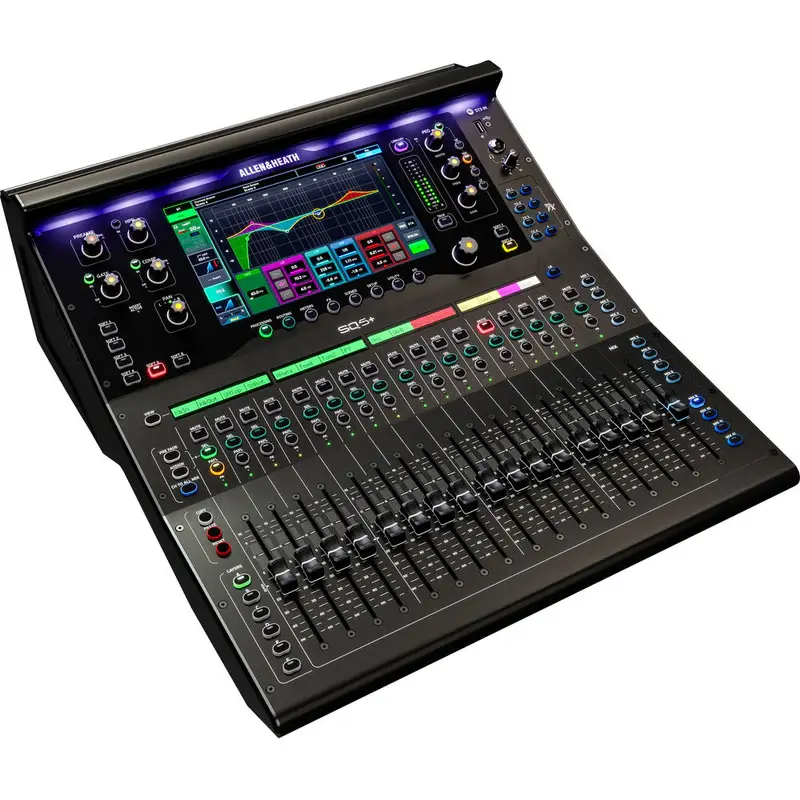

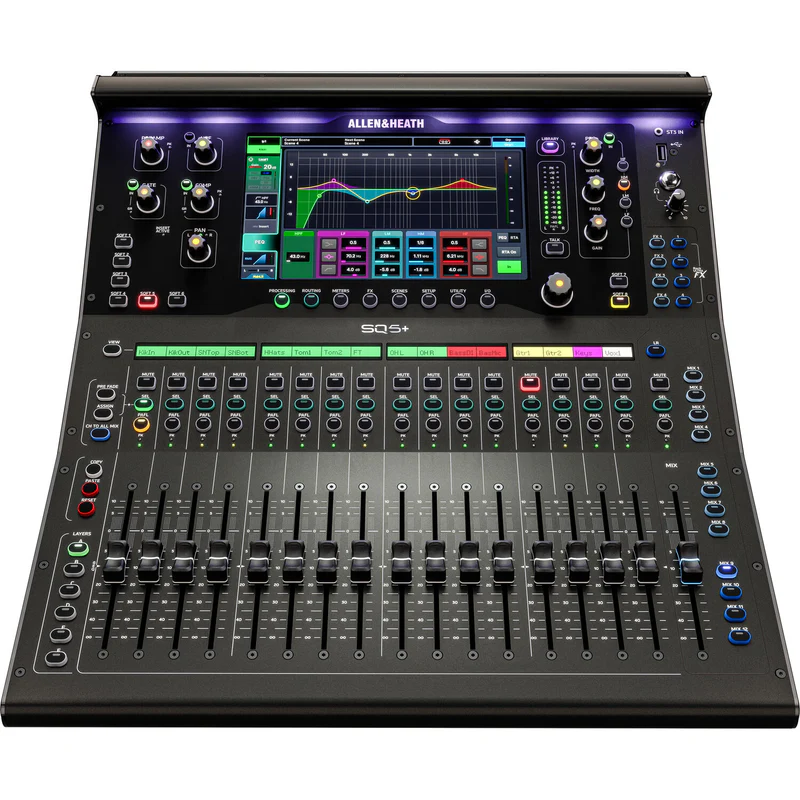

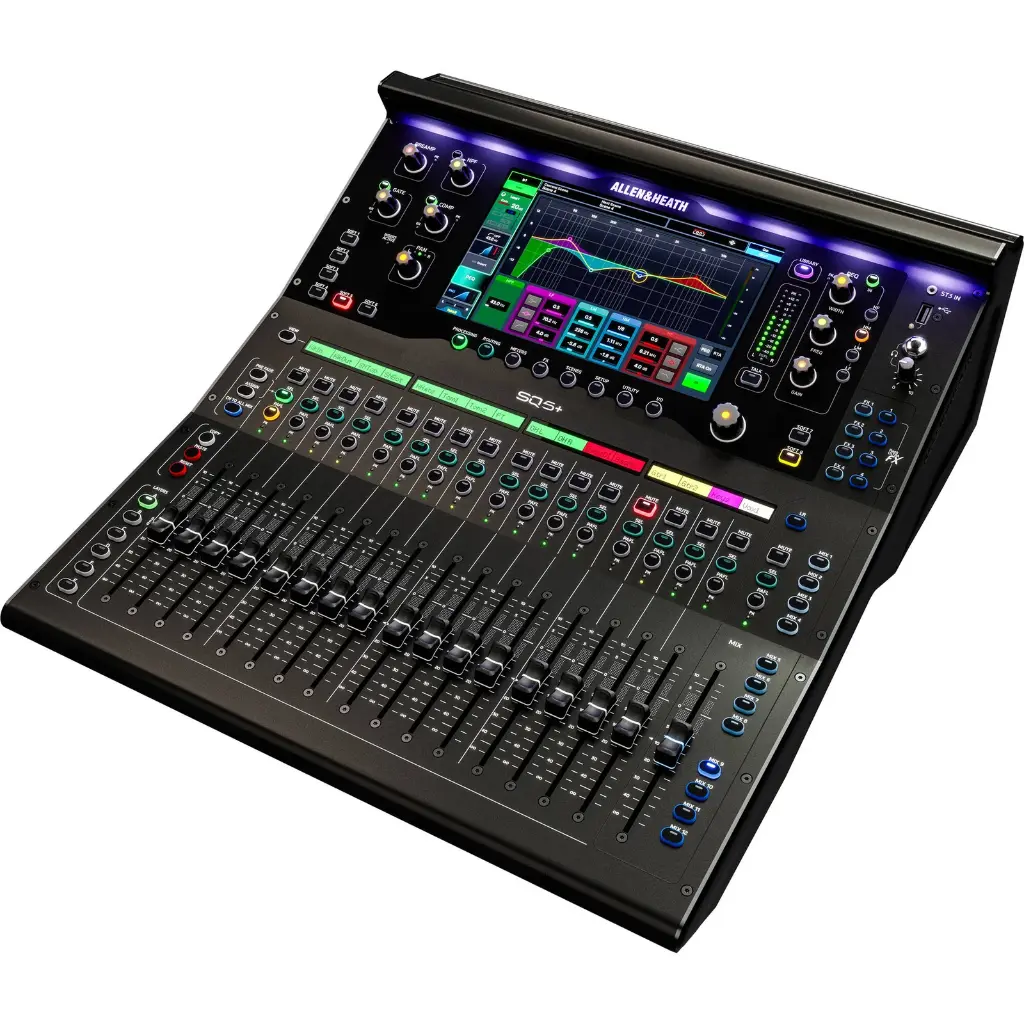

Allen & Heath SQ5+ 48-Channel Digital Mixer With RackUltra FX SKU# SQ5+

Building upon the success of the original SQ-5, the Allen & Heath SQ5+ is a 48-channel, 44-bus digital mixing console with numerous enhancements, including more processing power, a large 9" touchscreen with reimagined GUI, and a cleaner carbon-on-graphite update to the surface artwork and controls. The SQ5+ continues to be a go-to solution for owner operators, midsize venues, small tours, and anywhere audio quality and interoperability are vital, including live sound applications, corporate A/V, recording studios, and houses of worship.

The SQ5+ features 16+1 motorized faders and 16 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and four RackUtra FX engines with the ability to run the latest DEEP-channel processing. The mixer's 12 stereo outputs (configurable as groups or aux's) are well suited for in-ear-monitor setups, while the Automatic Mic Mixing function offers quick and easy operation over multiple microphones, for conferences, panel talks, and more. At the heart of the SQ5+ lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultralow latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and power to handle high channel/mix counts and FX processing.

• 96 kHz XCVI core
• 48 inputs to mix
• 12 stereo aux/group mixes + LR
• 6 mono / linkable matrix
• Full channel and mix processing (HPF, PEQ/GEQ, comp, gate)
• DEEP processing ready
• 8 Rack Extra FX Engines with dedicated send and return channels
• 4 RackUltra FX Engines with dedicated send and return channels

• 128 x 128 Intelligent SLink Port for Everything I/O expansion and connection to other Allen & Heath consoles
• I/O Port for option cards (SLink, Dante, Waves and MADI cards available)
• USB-A: Data transfer and stereo/multichannel audio record/playback
  • 16 channels at 96 kHz
  • 32 channels at 48 kHz
• USB-B: Audio interface for multichannel record/playback
  • 32 x 32 at 96 kHz
  • 32 x 32 at 48 kHz
• AES3 Stereo digital output socket

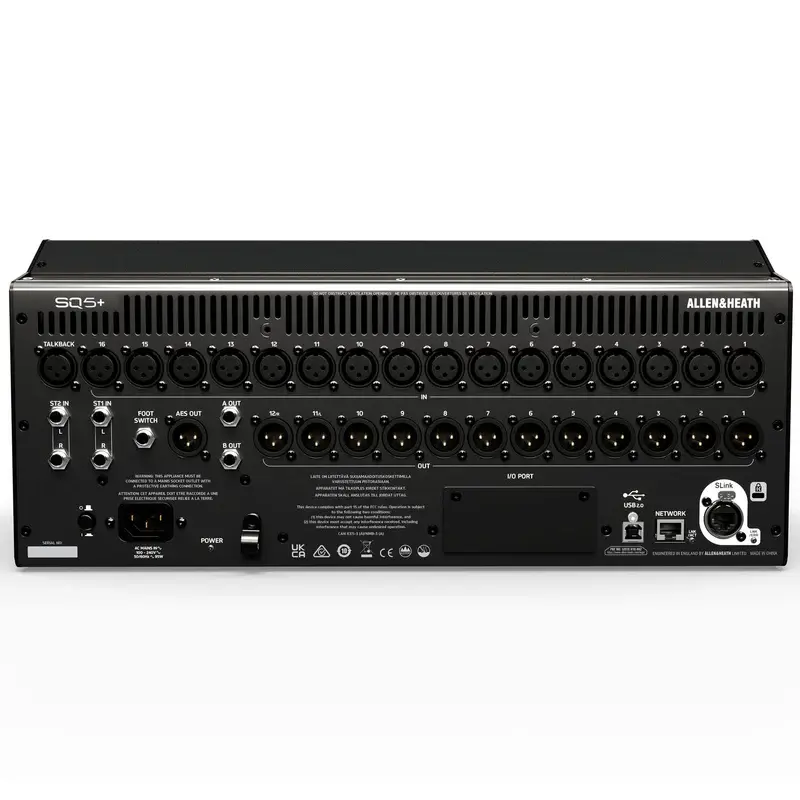

• 16 XLR mic/line input sockets
• 12 XLR output sockets
• Three stereo line input sockets (four TRS 1/4” sockets, 3.5mm TRS socket)
• One XLR talkback socket
• Two TRS output sockets
• Stereo headphone output

• 17 100mm motorized faders
• 8 soft keys
• 6 channel-strip layers
• 9” touchscreen with dark GUI
• Configurable single/dual footswitch connection
• Remote control via free apps for Windows/MacOS/iOS/Android

• SQ+ is centred around a responsive 9” touchscreen with an all-new dark GUI that is fast to navigate and easy to read in any mixing environment.  Framed by high-grip illuminated encoders, it delivers an intuitive blend of visual feedback and hands-on control.

• Channels and mixes can be dragged and dropped to any strip, with custom naming and color coding on the displays, letting you build a mixing environment that works for you.

• Each strip features Allen & Heath's patented Chromatic channel metering system, giving you at-a-glance level indication down to -72 dB, thanks to LEDs with variable brightness and color.

• All SQ+ mixers feature assignable soft keys for quick access to the functions you use the most.

• Every input channel comes equipped with HPF, a superfast gate with side-chain and filter, a freely assignable insert point, a musical 4-band parametric equalizer with RTA, and peak/RMS compressor to control and shape levels and transients. Mixes include both a parametric and 28-band graphic EQ along with compressor as standard, all ready to switch in when required.

• SQ+ supports the latest generation of DEEP processing add-ons—models of classic analog hardware embedded directly into your channel and mix strips, adding no latency and available on every channel simultaneously.

• SQ+ is equipped with 8 RackExtra FX engines, each with its own dedicated stereo return, giving you access to the acclaimed RackExtra FX suite, featuring emulations of legendary reverbs, gated reverbs, delays, modulators and more.
• Four built-in RackUltra FX engines take SQ+ further, each with dedicated stereo sends and returns. First developed for the flagship dLive system, and proven on international tours, the RackUltra FX suite of add-ons brings premium reverbs, vocal tuning and pitch processors, distortion, saturation, and more to SQ+. The 4 engines can also run RackExtra FX for maximum flexibility.

• SQ+'s built-in USB audio interface enables easy multitrack recording, backing-track playback, livestreaming, and virtual soundcheck for up to 32×32 channels at both 96 and 48 kHz. Class compliant and compatible with Mac,  and with Windows when separately available ASIO and WDM drivers are installed. You can also map faders, rotaries, channel keys, and soft keys to control your favorite DAW using Allen & Heath MIDI Control app.

Capture, Playback, Virtual Soundcheck

• The integrated SQ-Drive makes it quick and easy to capture or playback 16 channels (96 kHz), 32 channels (48 kHz), or a simple stereo mix, direct to a USB drive. No need for a laptop or DAW; just press record.

• The 128×128 Intelligent SLink port opens up the entire Allen & Heath Everything I/O ecosystem, connecting seamlessly to a wide range of remote stage boxes,  expanders, and other Allen & Heath consoles.

• A dedicated I/O expansion slot supports optional cards for Dante, MADI, Waves, and additional SLink connections, making SQ+ a natural fit for complex multiformat installs, FOH/monitor splits, and broadcast setups.

• SQ+’s advanced Automatic Mic Mixers make it a natural choice for mixing conferences, panel discussions, and broadcast applications. Two independent 24-channel AMMs can run simultaneously for two separate zones or combine into a single 48 channel AMM for larger events

• SQ+ MixPad gives you the freedom to mix from anywhere in the venue, even if that’s not physically close to the mixer’s location. The app is available for free on iOS, Android, Windows, and macOS platforms.

• SQ+4You is a free personal mixing app to accompany SQ+ series mixers, allowing up to eight performers to control their own monitor mixes from their Android or iOS devices and freeing the audio engineer to focus on front-of-house sound.

• The live environment is unforgiving, so SQ+ is built to take it. A robust all-metal chassis provides the strength and rigidity to handle the rigors of touring and installation alike, while the new carbon-on-graphite finish with black-and-white knobs and fader caps gives it a sharp, contemporary look that holds up under real-world use. Every SQ+ comes backed by a two-year manufacturer's warranty.

• Register your SQ+ and receive a voucher for the free PlusPack processing add-on package. PlusPack includes all DEEP SQ add-ons—including Compressor Models, GEQs, and Preamp Models—and premium RackExtra FX like the De-Esser, Hypabass, and Bucket Brigade. Plus, take advantage of SQ+’s boosted processing with Source Expander, Dual Threshold Expander, and CompStortion.

• US customers will receive a coupon code for the easy-to-use RackUltra FX Essentials bundle, including the Essential Saturator, Essential Spaces (Room), Essential Spaces (Hall), Essential Plate (Instrument), and Essential Plate (Vocal).

• Type: Digital Mixer
• Channels: 48
• Inputs - Mic Preamps: 16 x XLR (mic/line)
• Phantom Power: 16 Channels
• Inputs - Other: 2 x 1/4" (ST1), 2 x 1/4" (ST2), 1 x 1/8" (ST3)
• Outputs - Main: 2 x 1/4" (A out, B out), 2 x XLR (L,R)
• Outputs - Other: 12 x XLR (stereo mixes, L/R)
• Outputs - Digital: 1 x XLR (AES)
• Busses/Groups: 44 Bus
• Inserts: Internal Pre EQ/Compressor
• Talkback: 1 x XLR
• MIDI I/O: USB (control)
• Data I/O: 1 x EtherCon (dSnake, DX mode, gigaACE), 1 x Ethernet RJ-45 (LAN TCP/IP)
• Headphones: 1 x 1/4"
• USB: 1 x Type B, 1 x Type A
• Computer Connectivity: USB (32 x 32), Ethernet
• Remote: 1 x 1/4" (footswitch)
• I/O Expansion Slots: 1 x Option Card Port (Dante, Waves)
• Faders: 17 x 100m Motorized
• A/D Resolution: 96kHz
• EQ Bands: Parametric EQ, 28-band Graphic
• Effects: Delay, Reverb, Chorus, Flanger, Phaser (8 x Multi-FX Engines, 4 x RackUltra FX Engines)
• Signal Processing: Dynamics
• Features: DEEP Processing Models
• DAW Control: MIDI DAW control via USB
• Screen: 9" Color Touch Screen
• Storage: USB Type A (16 x 16)
• Software: Wireless Remote Mixing app iPad/Android (network router not included)
• Rackmountable: Yes (kit sold separately)
• Power Source: AC Adapter

• 16-input digital mixer driven by thoughtful features and state-of-the-art processing
• 48 input processing channels, 12 mixes, and 6 matrices
• 17 motorized 100mm faders and 8 customizable SoftKeys
• 16 mic-/line-level In XLR jacks, 1 stereo line-level In socket, 12 line-level Out XLR jacks, 2 TRS Out sockets, and 1 AES Out port
• 96kHz XCVI FPGA core delivers class-leading sound quality and phase coherence
• DEEP processing models deliver classic insert FX with zero latency
• 32-in, 32-out USB audio interface provides seamless multitrack recording and playback
• SQ-Drive allows for direct recording to a USB drive
• Up to 48 ch. of Automatic Mic Mixing makes managing large multi-mic setups easy
• 128-ch. SLink port and a 64-ch. I/O Port provide ample expansion
• 9-in. capacitive touchscreen with a reimagined GUI
• 8 Multi-FX engines and 4 RackUltra FX engines
• RackUltra FX Essentials includes Spaces Room reverb, Spaces Hall reverb, Plate Vocal reverb, Plate Instrument reverb, and Saturator
• PlusPack voucher provides access to additional DEEP and standard FX add-ons

• Allen & Heath SQ5+ 48-Input 44-Bus Digital Mixer with 16+1 Motorized Faders and RackUltra FX
• Power Cord
