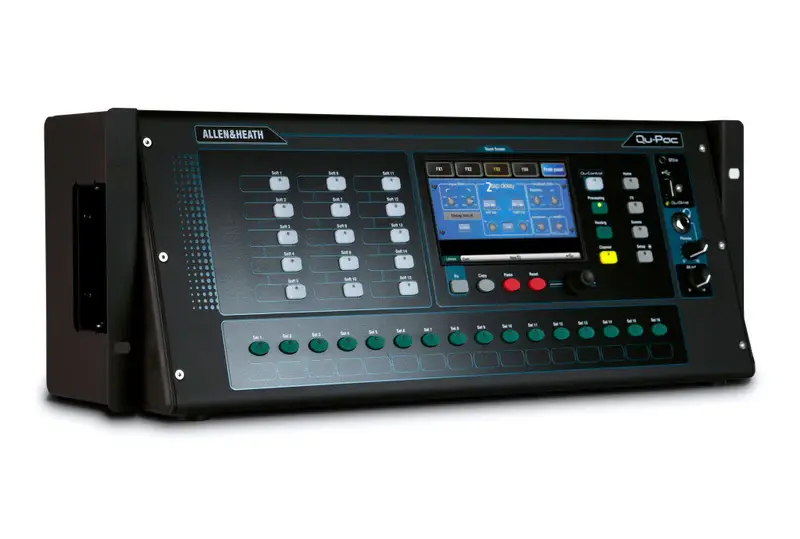

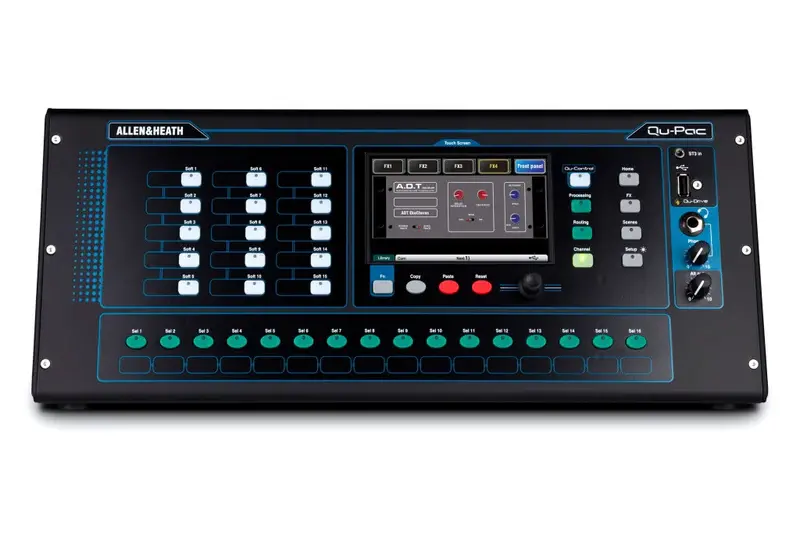

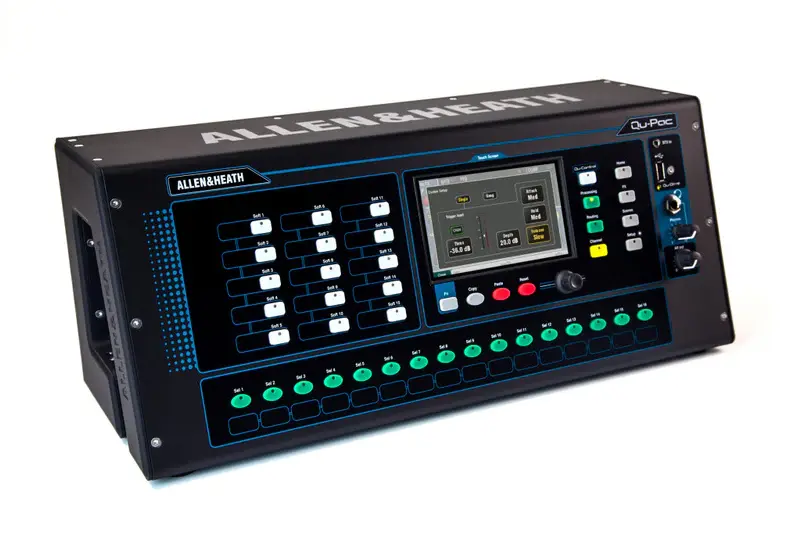

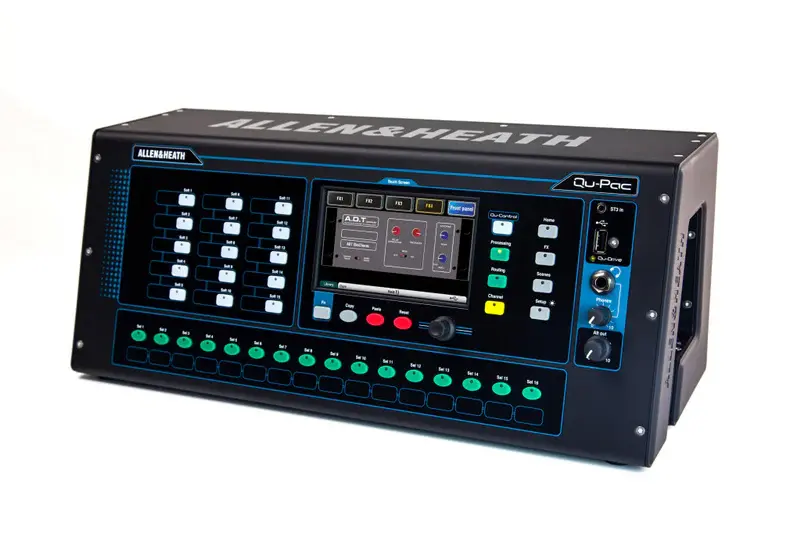

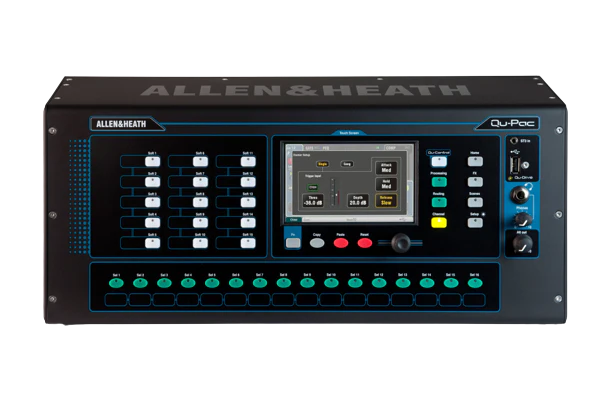

Allen & Heath QU-PAC Digital Mixer SKU# QU-PAC

Designed to accommodate a wide variety of live sound reinforcement and recording scenarios, the Allen & Heath Qu-Pac is a 16-input 12-output rackmountable console-less digital mixer that doubles as a 32x32 USB recording interface. Featuring 16 of the company's recallable AnalogiQ microphone preamps and powered by a 5 core ARM processor, the Qu-Pac provides a variety of integrated effects and processing including channel-independent 4-band parametric EQs, compressors, delay, and reverb.

The mixer is compatible with both the ME Personal Mixing System and dSNAKE digital connectivity system from Allen & Heath, which allows for up to 38 inputs. The Qu-Pac can also be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network. Engineered for intuitive navigation, the mixer also features a 5" touchscreen display, providing access to all settings.

• 16 AnalogiQ recallable preamps
• 16 onboard mic/line inputs (XLR / TRS)
• Expandable up to 38 inputs via dSNAKE
• 3 stereo inputs (TRS)
• 32 mono + 3 stereo input channels
• 12 onboard mix outputs (XLR)
• 4 stereo groups
• 2 stereo matrix outs
• AES digital out
• 4 DCA groups
• 4 mute groups
• Qu-Pad iPad app for all live mixing controls
• Qu-You iPhone app for personal monitoring
• Qu-Drive direct multitrack recording/playback on USB drives
• 15 soft keys
• 16 custom select keys
• Qu-Control custom screen to suit application
• 4 FX engines
• 4 FX sends/returns
• 32x32 USB audio Interface
• 5" touchscreen
• iLive FX Library
• Compatible with ME Personal Mixing System
• Trim, polarity, HPF, gate, insert/ducker, 4-band PEQ, compressor and delay on all Inputs
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor, and delay on all mix outputs
• Built-in signal generator
• RTA with peak band indication

• Type: Digital
• Channels: 35 (32 x Mono, 3 x Stereo)

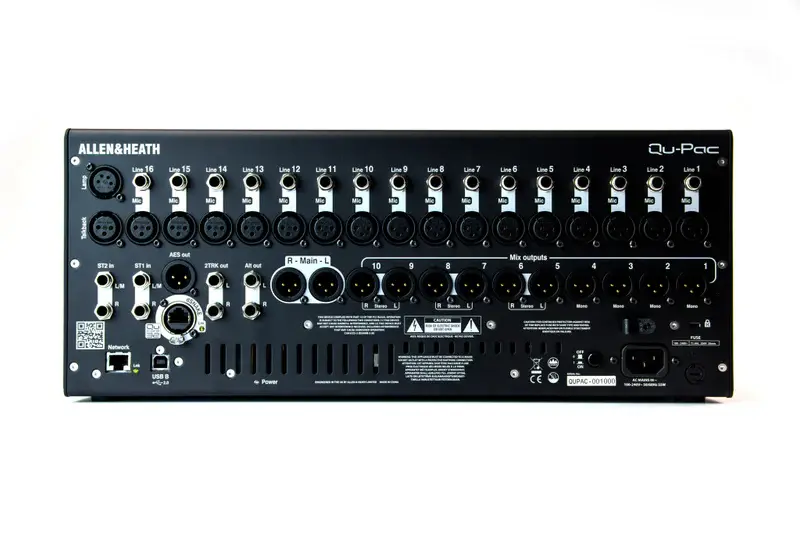

• Inputs - Mic Preamps: 16 x XLR
• Talkback: Yes
• Inputs - Line: 20 x TRS
• Inputs - Other: 1 x 1/8"
• Outputs - Main: 2 x XLR
• Outputs - Digital: 1 x AES/EBU (XLR)
• Outputs - Other: 10 x XLR, 2 x TRS (2-track), 2 x TRS (Alt)
• Send/Return I/O: 4 x TRS
• Data I/O: Ethernet
• USB: 1 x Type B, 1 x Type A
• Computer Connectivity: USB (32 x 32)
• Busses/Groups: 4 x Stereo Groups, 4 x DCA Groups, 4 x Mute Groups
• Headphones: 1 x 1/4"
• EQ Bands: 4-band Parametric
• Effects: Yes
• DAW Control: Yes
• Rackmountable: Yes
• Height: 7" (Desk), 7" (Rack)
• Depth: 7" (Desk), 6.9" (Rack)
• Width: 17.3" (Desk), 19" (Rack)
• Weight: 14.5 lbs.

• 16 Mic/Line Inputs
• 16 Recallable AnalogiQ Preamps
• 12 Mix Outputs
• 32x32 USB Recording Interface
• 4 Built-In FX Engines
• 5" Touchscreen
• iPad App for Wireless Mixing
• EQ & Dynamics on Each Input
• Up to 38 Inputs via dSNAKE
• Includes Rack Ears and Hardware

• Allen & Heath Qu-Pac 16x12 Compact Mountable Mixer
• Set of 19" Rack Ears and Hardware
